Description

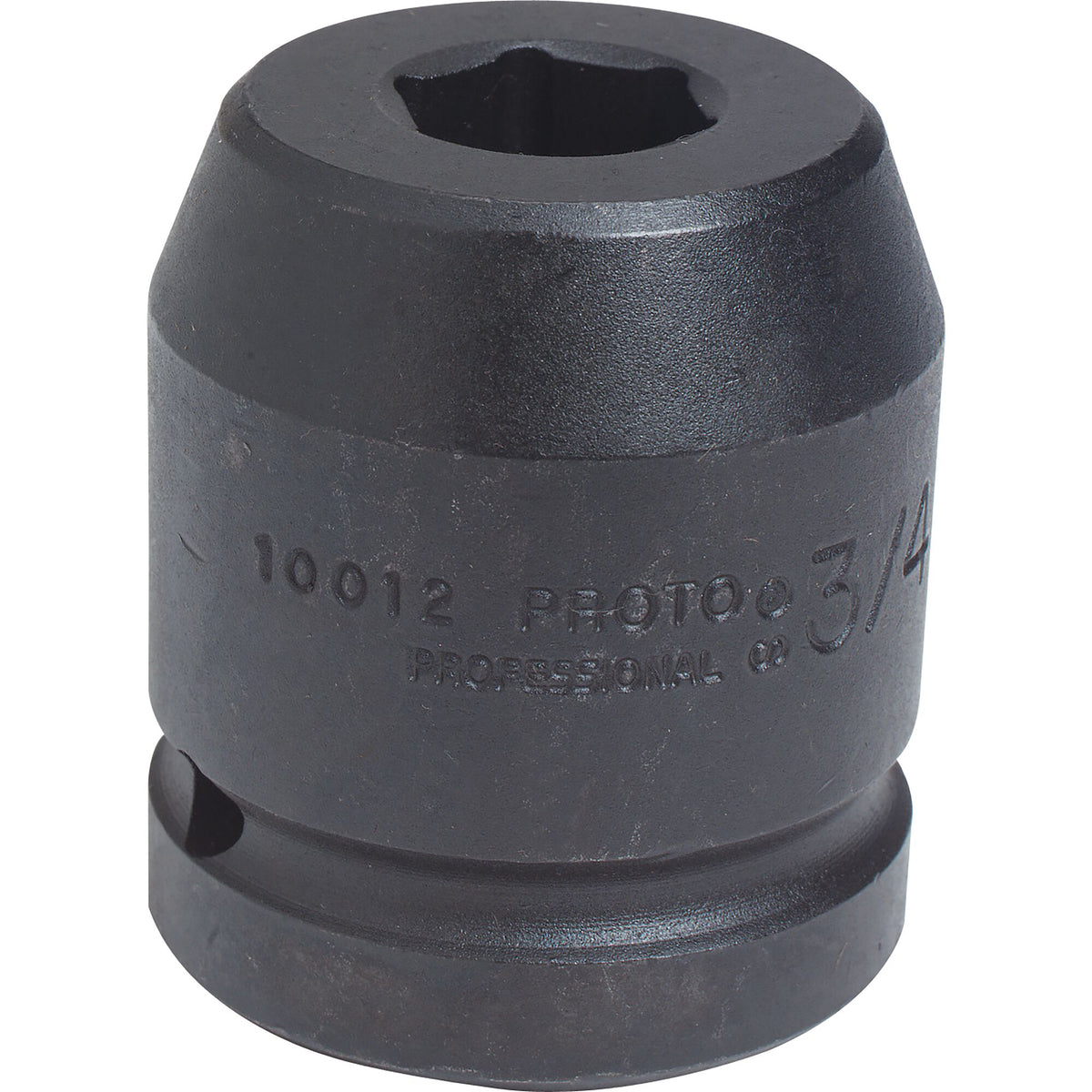

The Proto J10012 is a 1 in drive, 3/4 in, 6-point impact socket. The manufacturer states that 6-point impact sockets suit stubborn or damaged fasteners and fasteners made from soft materials, and that the TorquePlus design engages the fastener flats rather than the corners.
Per the manufacturer, the radius-corner configuration shifts contact stress away from the fastener corners and spreads it over a larger area of the socket, which helps minimize slippage. Nut depth 19/32 in, bolt clearance depth 1-5/16 in, overall length 2-7/16 in. Sizes are in inches. Sold as a single socket.
Features
- 1 in drive, 3/4 in, 6-point impact socket
- TorquePlus design engages the fastener flats rather than the corners, per the manufacturer
- Radius-corner design spreads contact stress and helps minimize slippage, per the manufacturer
- Suited to stubborn, damaged or soft-material fasteners, per the manufacturer
- Size in inches (in), sold as a single socket
Specifications
| Specification | Value |
|---|---|
| Model | J10012 |
| Quantity | 1 piece |
| Type | 6-point impact socket |
| Drive size | 1 in |
| Size | 3/4 in (inch size) |
| Design | TorquePlus 6-point |
| Bolt clearance depth | 1-5/16 in |
| Nut depth | 19/32 in |
| Drive end outside diameter | 2-1/8 in |
| Nut end outside diameter | 1-7/16 in |
| Overall length | 2-7/16 in |
| Weight | 0.50 kg (1.11 lbs) |
Part numbers
| Manufacturer part number (MPN) | Big Papa SKU |
|---|---|
| J10012 | BP-G-PRO-10012 |
