Description

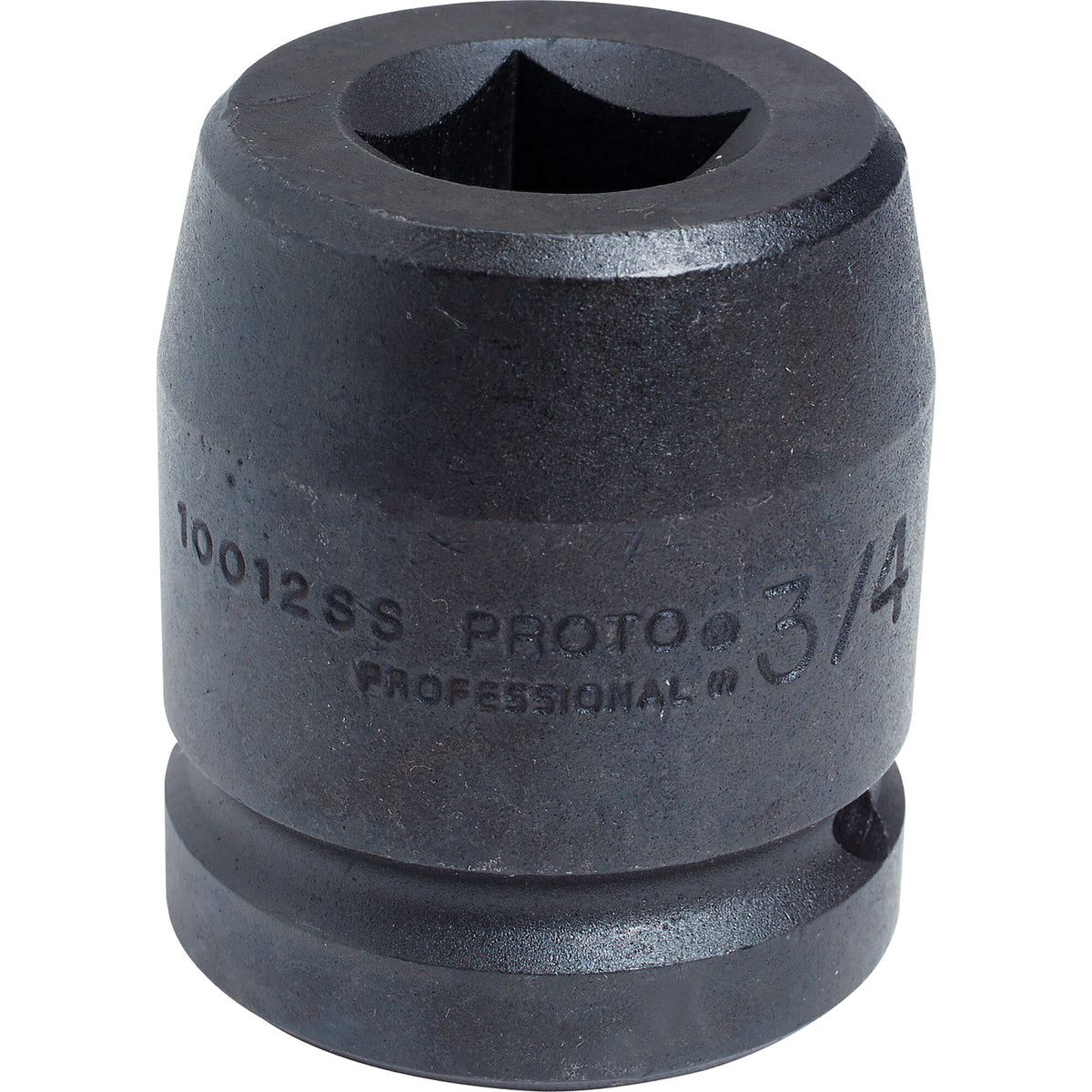

The Proto J10012SS is a 1 in drive, 3/4 in, 4-point impact socket. The manufacturer states that the drive end chamfer and four detents help provide positive engagement with the drive tool on any of the socket drive walls, and that tight tolerances give a snug fit on the fastener.
Per the manufacturer, large clearance holes, a concentric opening and a nut end chamfer make it easy to position the socket on fasteners, and two through holes and a groove accept a Proto retaining ring or pin and O-ring. Nut depth 5/8 in, bolt clearance depth 1-3/8 in, overall length 2-1/2 in. Sold as a single socket.
Features
- 1 in drive
- 3/4 in, 4-point, impact socket
- Drive end chamfer and four detents for positive engagement with the drive tool, per the manufacturer
- Tight tolerances for a snug fit on the fastener, per the manufacturer
- Large clearance holes, concentric opening and nut end chamfer for easy positioning, per the manufacturer
- Two through holes and a groove for a Proto retaining ring or pin and O-ring, per the manufacturer
- Sold as a single socket
Specifications
| Specification | Value |
|---|---|
| Model | J10012SS |
| Quantity | 1 piece |
| Type | 4-point impact socket |
| Drive size | 1 in |
| Size | 3/4 in |
| Bolt clearance depth | 1-3/8 in |
| Nut depth | 5/8 in |
| Drive end outside diameter | 2-1/8 in |
| Nut end outside diameter | 1-7/8 in |
| Overall length | 2-1/2 in |
| Weight | 0.71 kg (1.57 lbs) |
Part numbers
| Manufacturer part number (MPN) | Big Papa SKU |
|---|---|
| J10012SS | BP-G-PRO-10012SS |
