Description

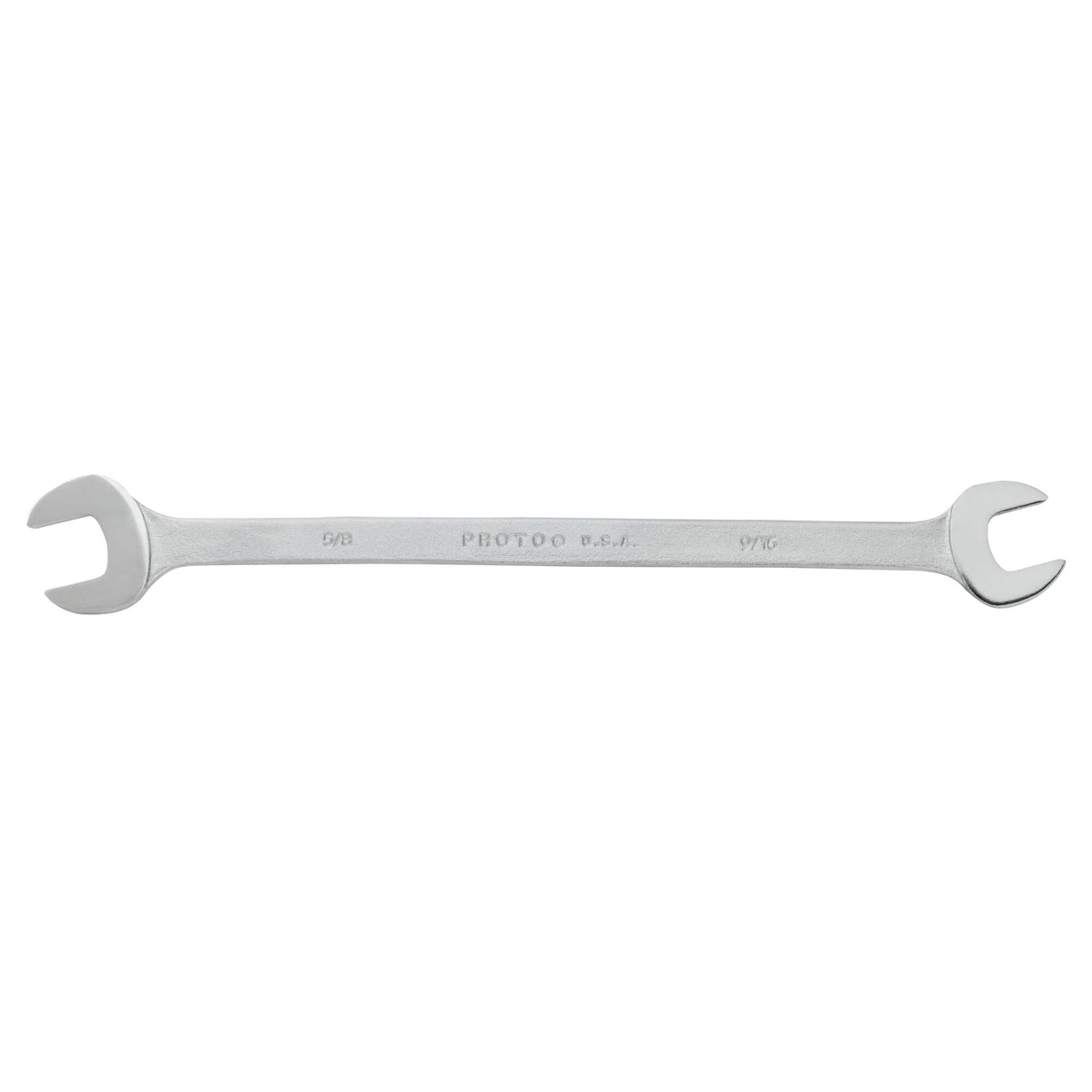

The Proto J3430 is an extra thin double open end wrench in 9/16 in and 5/8 in sizes with a satin finish. The manufacturer describes the ultra-thin profile and long handle as giving improved access to hard-to-reach fasteners, and the tool as suited to jobs where high leverage or distance from a hot assembly is needed.
Per the manufacturer, the satin finish provides corrosion resistance and a slip resistant grip, and the opening is designed to cover tappets, screws and lock nuts without excessive overhang. Overall length 10 in; sold as a single tool.
Features
- 9/16 in x 5/8 in double open end
- Extra thin profile and long handle for improved access to hard-to-reach fasteners, per the manufacturer
- For use when high leverage or distance from a hot assembly is required, per the manufacturer
- Satin finish for corrosion resistance and a slip resistant grip, per the manufacturer
- Opening designed to cover tappets, screws and lock nuts without excessive overhang
- Overall length 10 in
Specifications
| Specification | Value |
|---|---|
| Model | J3430 |
| Quantity | 1 piece |
| Type | extra thin open end wrench, double |
| Sizes | 9/16 in x 5/8 in |
| Unit of measure | fractional (inch) |
| Finish | satin |
| Overall length | 10 in |
| Head thickness | 3/16 in and 11/64 in |
| Outside head width | 1-21/64 in and 1-1/4 in |
| Throat depth | 47/64 in |
| Weight | 0.10 kg (0.21 lbs) |
Part numbers
| Manufacturer part number (MPN) | Big Papa SKU |
|---|---|
| J3430 | BP-G-PRO-3430 |
