Description

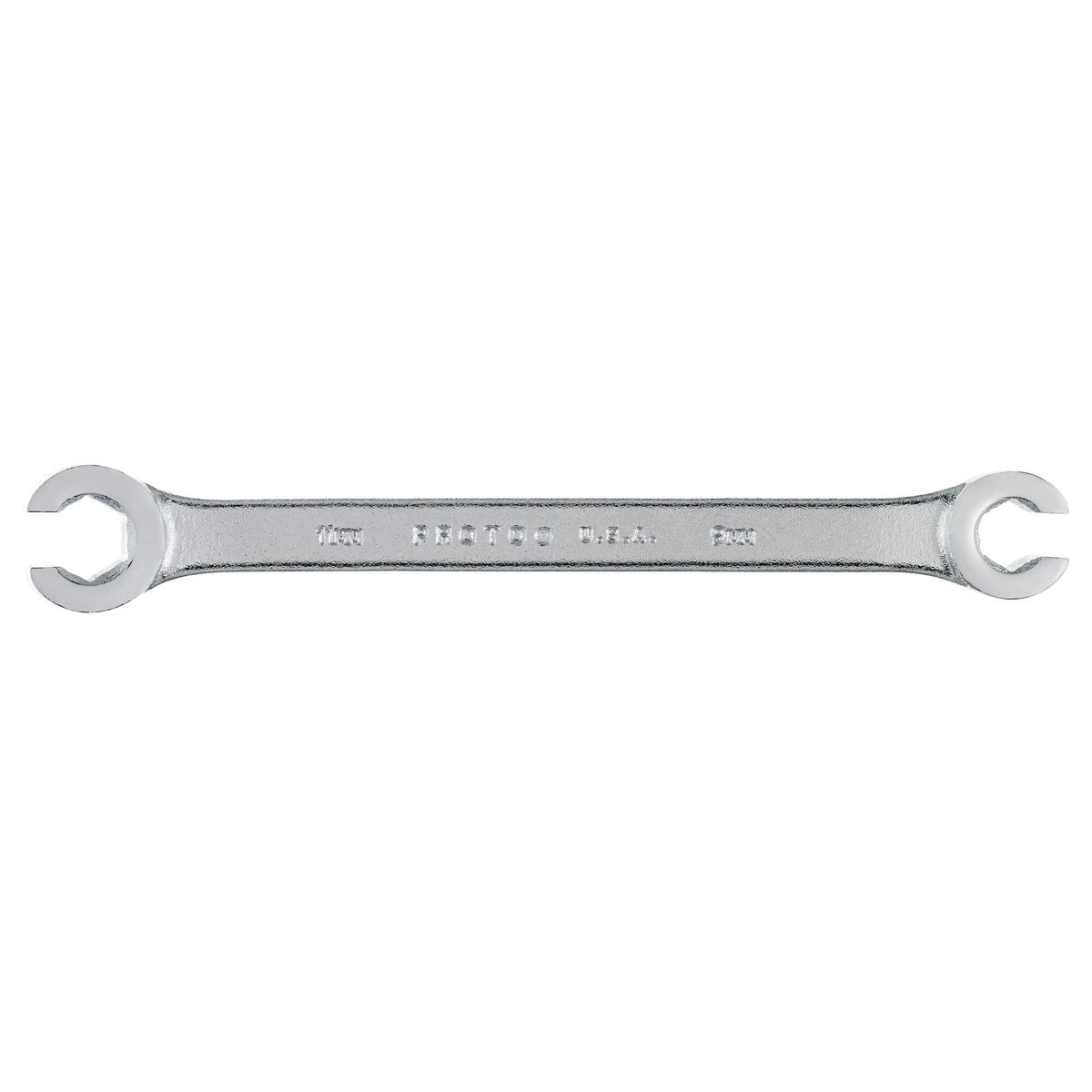

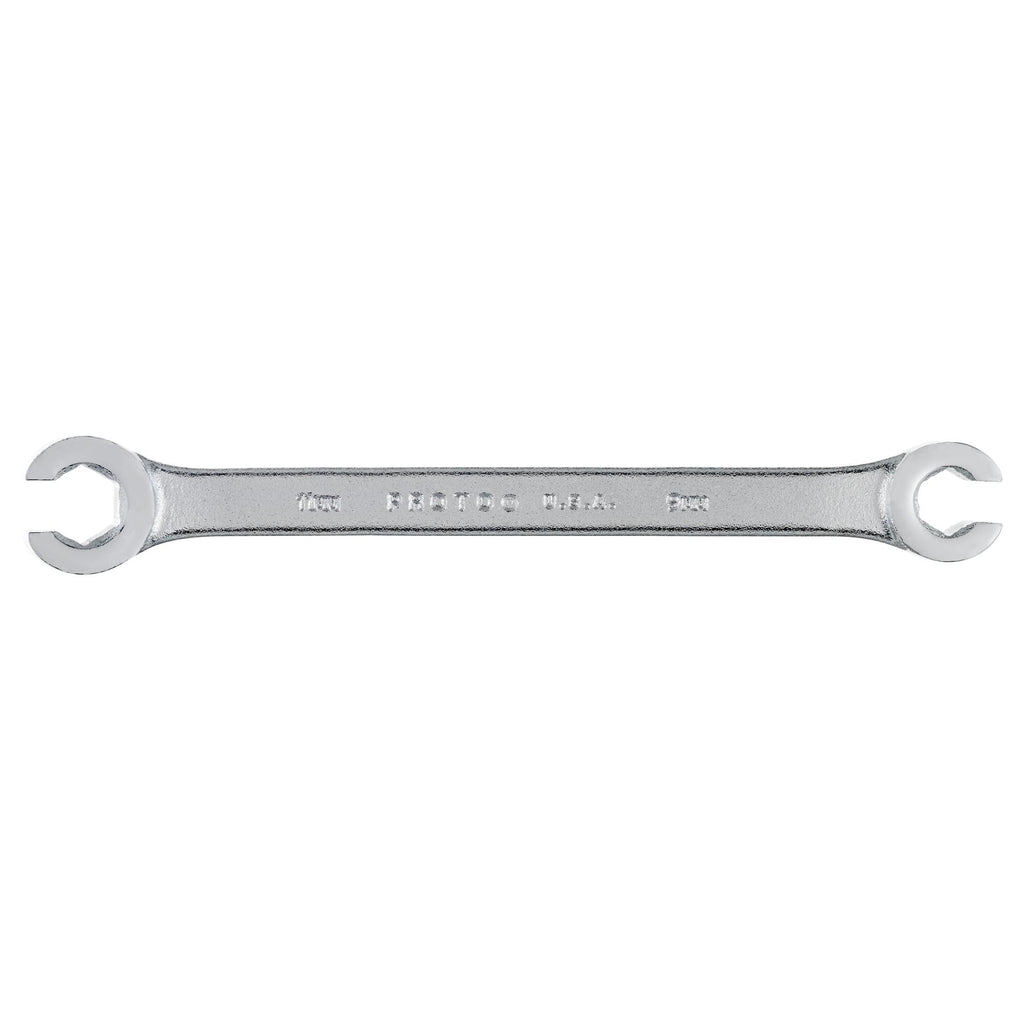

The Proto J3709M is a 9 x 11 mm 6-point flare-nut wrench with a satin finish. Per the manufacturer, the satin finish provides corrosion resistance and a slip-resistant grip, and the flare-nut box ends incorporate the TorquePlus system.
The page lists it as a metric tool sold as a single piece, with an overall length of 6-5/16 in and a weight of 0.16 lb (0.073 kg). It also lists ASME B107.100.
Features
- 6-point flare-nut wrench, 9 x 11 mm
- Satin finish for corrosion resistance and a slip-resistant grip, per the manufacturer
- Flare-nut box ends incorporate the TorquePlus system
- Metric sizing
- Sold as a single tool
Specifications
| Specification | Value |
|---|---|
| Model | J3709M |
| Quantity | 1 piece |
| Type | 6-point flare-nut wrench |
| Sizes | 9 x 11 mm |
| Finish | satin |
| Unit of measure | metric |
| Head thickness | 13/32 in / 25/64 in |
| Outside head width | 13/16 in / 29/32 in |
| Overall length | 6-5/16 in |
| Standard | ASME B107.100 |
| Weight | 0.16 lb (0.073 kg) |
Part numbers
| Manufacturer part number (MPN) | Big Papa SKU |
|---|---|
| J3709M | BP-G-PRO-3709M |
