Description

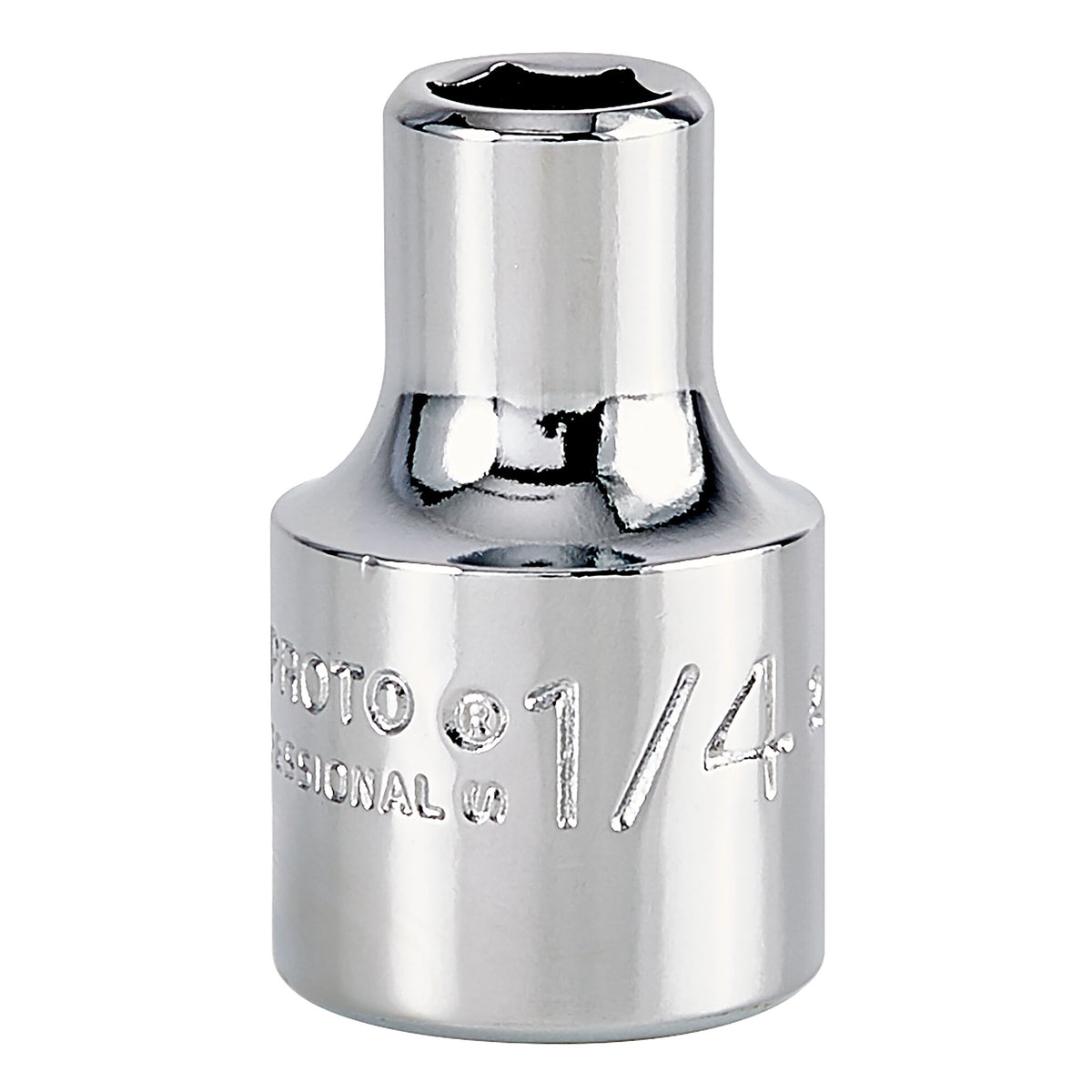

The Proto J5208H is a 3/8 in drive, 1/4 in, 6-point standard socket with a Full Polish finish. The manufacturer states that its 6-point sockets suit stubborn or damaged fasteners and fasteners made from soft materials, and that the TorquePlus design engages the fastener flats rather than the corners.
Per the manufacturer, the radius-corner configuration shifts contact stress away from the fastener corners and spreads it over a larger area of the socket. Nut depth 23/64 in, bolt clearance depth 21/32 in, overall length 1-3/32 in. Sold as a single socket.
Features
- 3/8 in drive
- 1/4 in, 6-point, standard length
- TorquePlus design engages the fastener flats rather than the corners, per the manufacturer
- Radius-corner design spreads contact stress over a larger area of the socket, per the manufacturer
- Suited to stubborn, damaged or soft-material fasteners, per the manufacturer
- Full Polish finish
- Sold as a single socket
Specifications
| Specification | Value |
|---|---|
| Model | J5208H |
| Quantity | 1 piece |
| Type | 6-point standard socket |
| Drive size | 3/8 in |
| Size | 1/4 in |
| Design | TorquePlus 6-point |
| Finish | Full Polish |
| Bolt clearance depth | 21/32 in |
| Nut depth | 23/64 in |
| Drive end outside diameter | 43/64 in |
| Nut end outside diameter | 25/64 in |
| Overall length | 1-3/32 in |
| Weight | 0.02 kg (0.05 lbs) |
Part numbers
| Manufacturer part number (MPN) | Big Papa SKU |
|---|---|
| J5208H | BP-G-PRO-5208H |
