Description

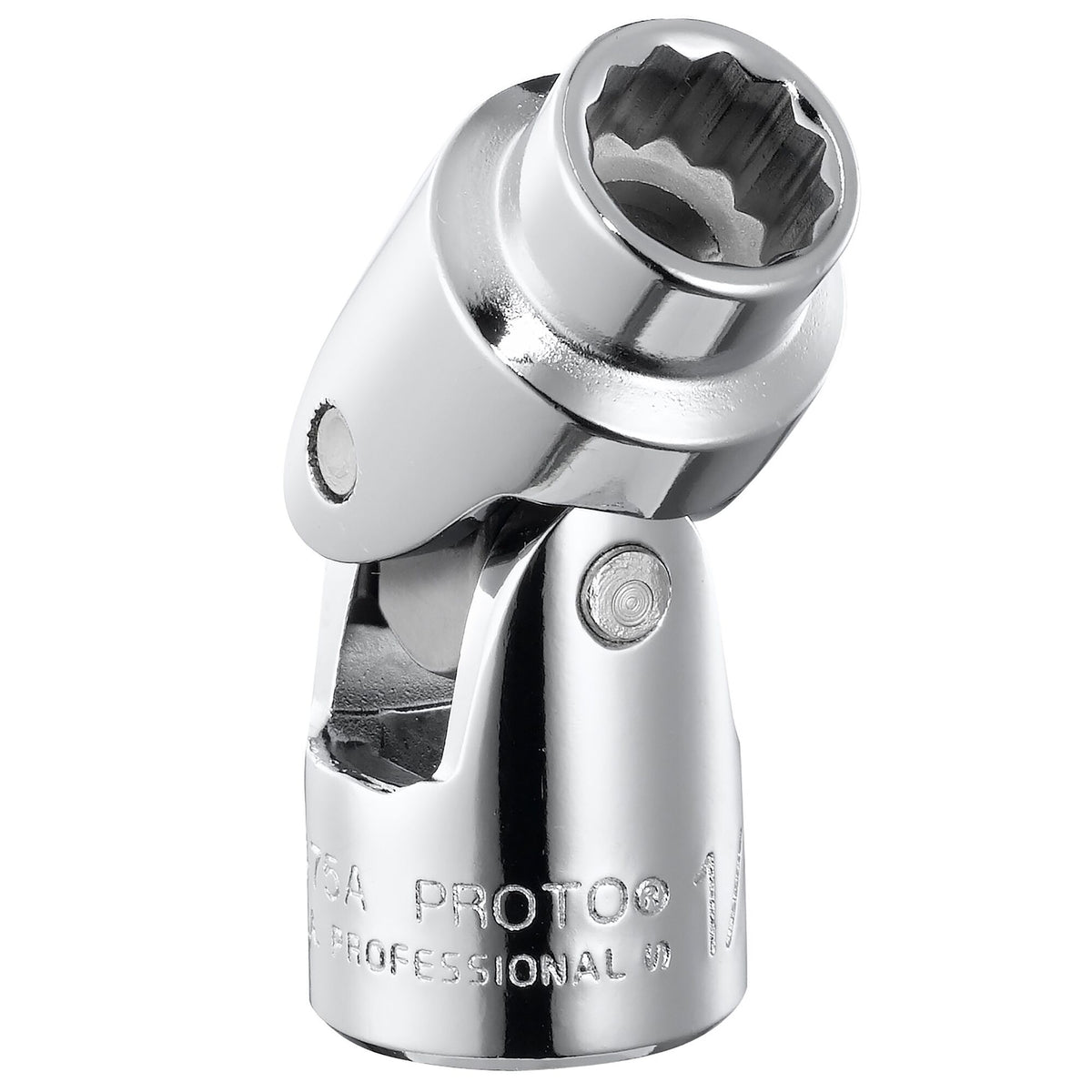

The Proto J5475A 1/2 in Drive 1/2 in 12-Point Universal Socket is a 1/2 in drive, 1/2 in, 12-point universal socket with a Full Polish finish. The manufacturer states that Proto 12-point sockets suit stubborn or damaged fasteners and fasteners made from soft materials, and that the TorquePlus design engages the fastener flats rather than the corners. The size is in inches (in).
Per the manufacturer, the radius-corner configuration shifts contact stress away from the fastener corners and distributes it over a larger area of the socket, which helps minimize slippage. It is a universal (swivel) socket. Nut depth 3/8 in, bolt clearance depth 29/64 in, overall length 2-15/32 in. Sold as a single socket.
Features
- 1/2 in drive
- 1/2 in, 12-point, universal (swivel)
- TorquePlus design engages the fastener flats rather than the corners, per the manufacturer
- Radius-corner design shifts contact stress away from the fastener corners and spreads it over a larger area of the socket, per the manufacturer
- Full Polish finish
- Size in inches (in)
- Sold as a single socket
Specifications
| Specification | Value |
|---|---|
| Model | J5475A |
| Quantity | 1 piece |
| Type | 12-point universal (swivel) socket |
| Drive size | 1/2 in |
| Size | 1/2 in |
| Design | TorquePlus |
| Finish | Full Polish |
| Bolt clearance depth | 29/64 in |
| Nut depth | 3/8 in |
| Drive end outside diameter | 15/16 in |
| Nut end outside diameter | 23/32 in |
| Overall length | 2-15/32 in |
| Unit of measure | inches (fractional) |
| Weight | 0.113 kg (0.25 lbs, converted) |
Part numbers
| Manufacturer part number (MPN) | Big Papa SKU |
|---|---|
| J5475A | BP-G-PRO-5475A |
