Description

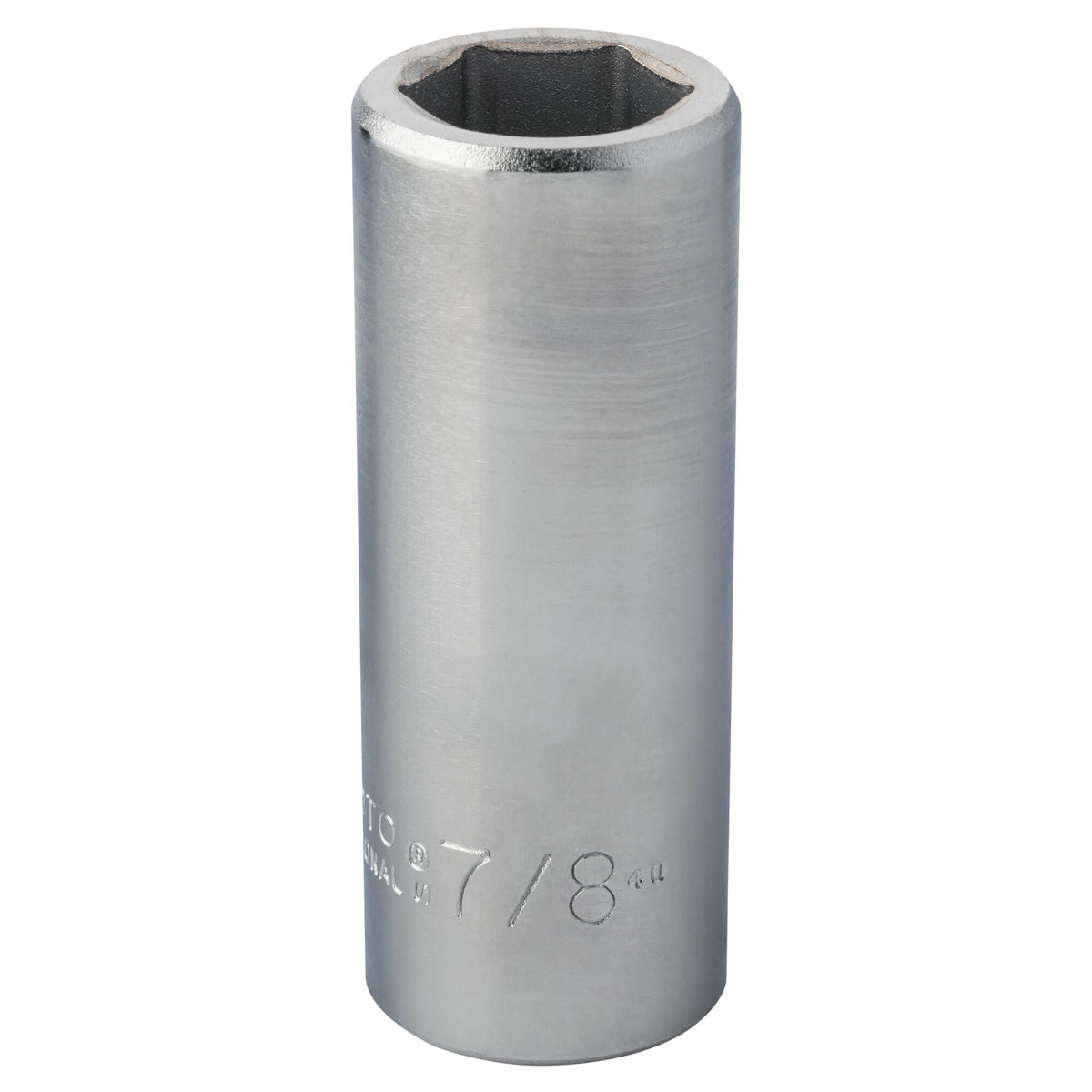

The Proto J5528HL 3/4 in Drive 7/8 in 6-Point Deep Socket is a 3/4 in drive, 7/8 in, 6-point deep socket with a Satin finish. The manufacturer states that Proto 6-point sockets suit stubborn or damaged fasteners and fasteners made from soft materials, and that the TorquePlus design engages the fastener flats rather than the corners. The size is in inches (in).
Per the manufacturer, the radius-corner configuration shifts contact stress away from the fastener corners and distributes it over a larger area of the socket, which helps minimize slippage. Per the manufacturer, it is made from alloy steel, heat-treated, with a ball detent design, for hand use only. Nut depth 9/16 in, bolt clearance depth 2-9/16 in, overall length 3-1/2 in. Sold as a single socket.
Features
- 3/4 in drive
- 7/8 in, 6-point, deep
- TorquePlus design engages the fastener flats rather than the corners, per the manufacturer
- Radius-corner design shifts contact stress away from the fastener corners and spreads it over a larger area of the socket, per the manufacturer
- Satin finish
- Alloy steel, heat-treated, per the manufacturer
- Ball detent design, per the manufacturer
- Hand use only, per the manufacturer
- Size in inches (in)
- Sold as a single socket
Specifications
| Specification | Value |
|---|---|
| Model | J5528HL |
| Quantity | 1 piece |
| Type | 6-point deep socket |
| Drive size | 3/4 in |
| Size | 7/8 in |
| Design | TorquePlus |
| Finish | Satin |
| Bolt clearance depth | 2-9/16 in |
| Nut depth | 9/16 in |
| Drive end outside diameter | 1-3/8 in |
| Nut end outside diameter | 1-3/8 in |
| Overall length | 3-1/2 in |
| Unit of measure | inches (fractional) |
| Weight | 0.413 kg (0.91 lbs, converted) |
Part numbers
| Manufacturer part number (MPN) | Big Papa SKU |
|---|---|
| J5528HL | BP-G-PRO-5528HL |
