Description

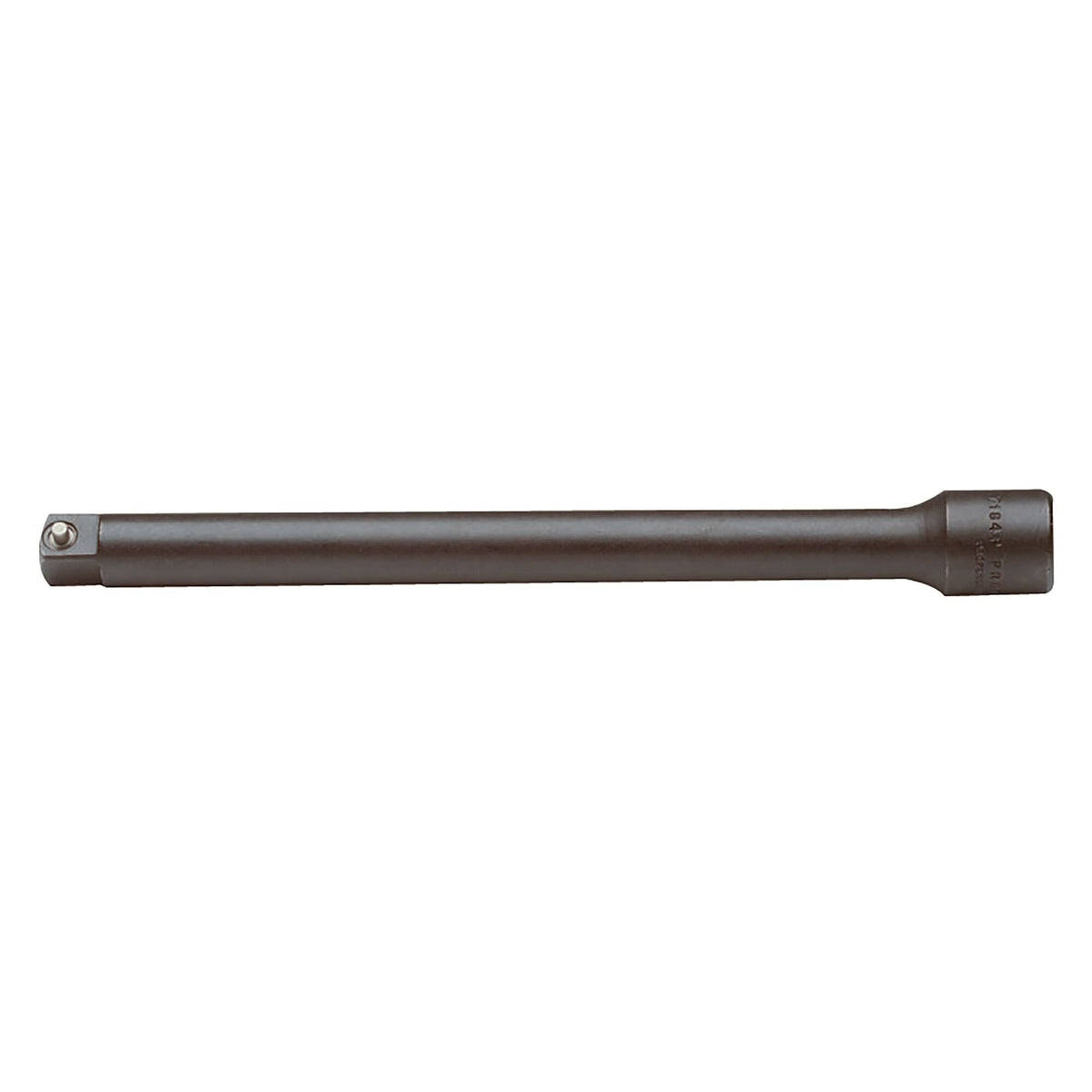

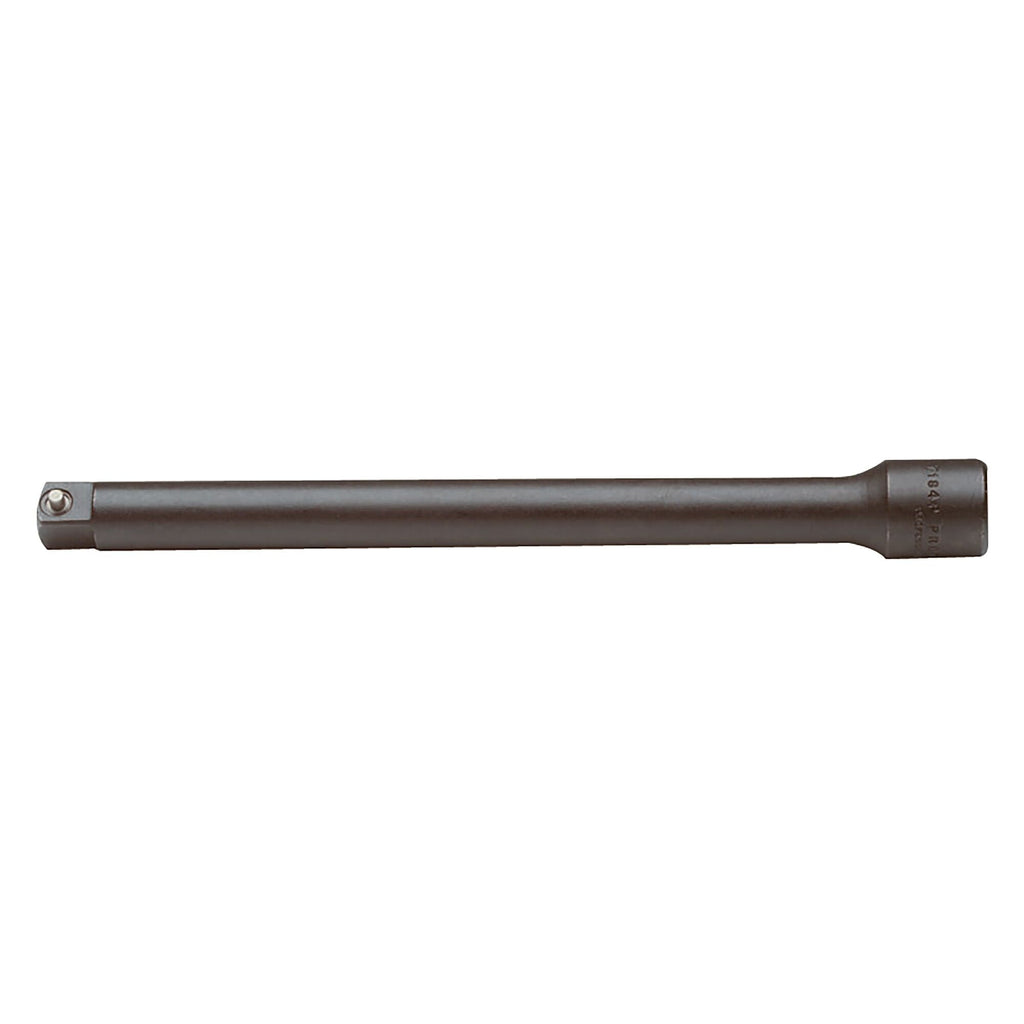

The Proto J7184P is a 9 in impact extension with a 1/2 in drive. According to the manufacturer, extensions like this give access to fasteners in locations that would otherwise be difficult to reach, and the male square is oriented in line with the female squares for use with fixed head torque wrenches.
Per the manufacturer, the drive end has a full chamfer, where applicable, and four detents for quick positive engagement on any of the socket drive walls. The size is stamped on the tool and there is a side locking hole. Black oxide finish. Sold as a single extension.
Features
- 1/2 in drive, 9 in long impact extension
- Gives access to fasteners in hard-to-reach locations, per the manufacturer
- Male square in line with female squares for use with fixed head torque wrenches
- Full chamfer at drive opening (when applicable) for easy engagement with drive tools
- Drive end chamfer and four detents for quick positive engagement on any of the socket drive walls
- Size stamped on the tool for easy identification
- Side locking hole
- Black oxide finish
Specifications
| Specification | Value |
|---|---|
| Model | J7184P |
| Quantity | 1 piece |
| Type | impact socket extension |
| Drive size | 1/2 in |
| Overall length | 9 in |
| Finish | black oxide |
| Standards | ASME B107.110-2012, SAE AS4984A |
| Weight | 0.404 kg (0.89 lbs) |
Part numbers
| Manufacturer part number (MPN) | Big Papa SKU |
|---|---|
| J7184P | BP-G-PRO-7184P |
