Description

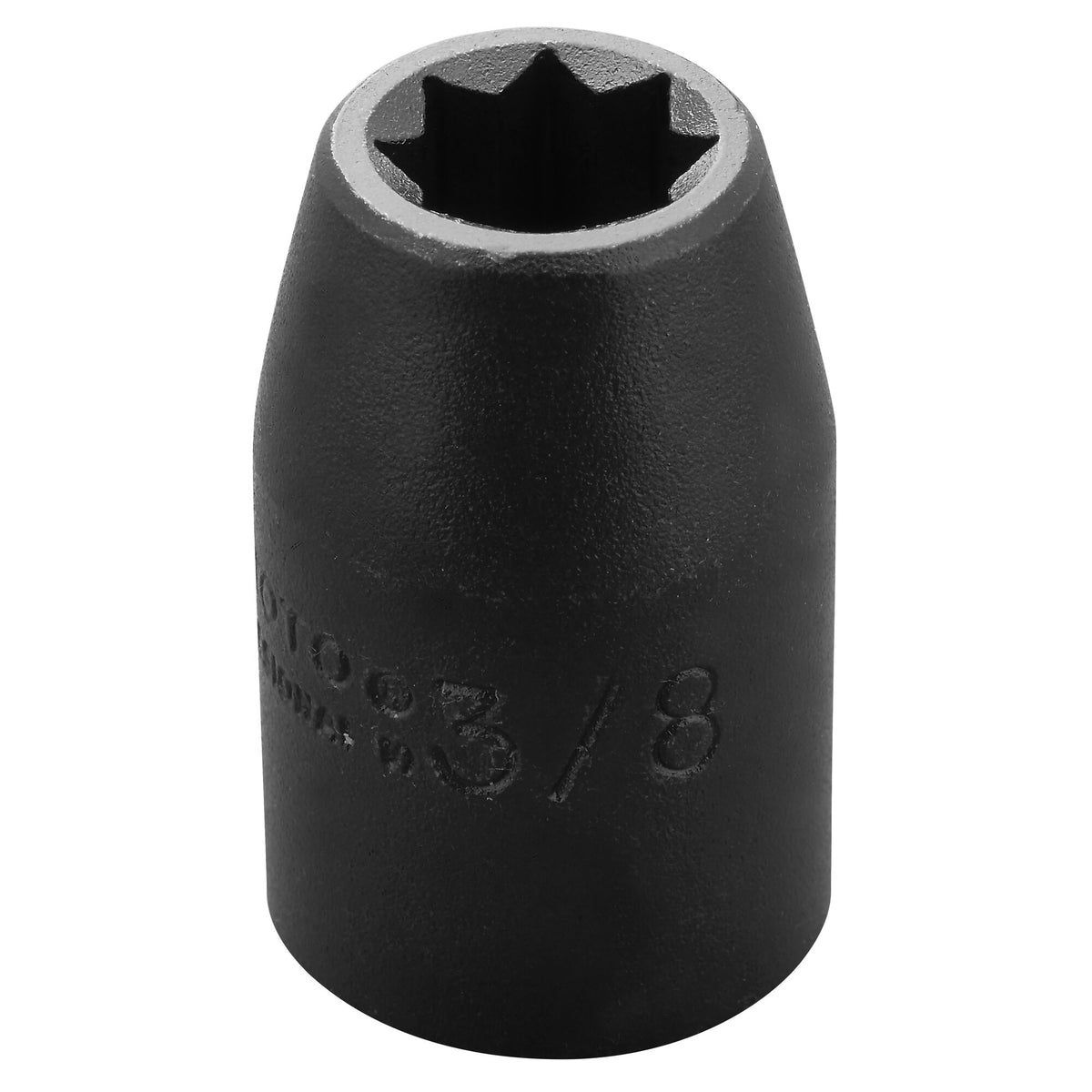

The Proto J7412S is a 1/2 in drive, 3/8 in, 8-point impact socket. The manufacturer states that 8-point impact sockets suit stubborn or damaged fasteners and fasteners made from soft materials, and that the TorquePlus design engages the fastener flats rather than the corners.
Per the manufacturer, it is made from high-strength steel to keep the wall thin and reach fasteners in recesses, with tight tolerances, a drive end chamfer with four detents, and a side locking hole. Black oxide finish; nut depth 17/64 in, bolt clearance depth 27/32 in, overall length 1-1/2 in. Sizes are in inches. Sold as a single socket.
Features
- 1/2 in drive, 3/8 in, 8-point impact socket
- High-strength steel to limit wall thickness and reach recessed fasteners, per the manufacturer
- TorquePlus design engages the fastener flats rather than the corners, per the manufacturer
- Radius-corner design spreads contact stress over a larger area of the socket, per the manufacturer
- Drive end chamfer with four detents and a side locking hole
- Size stamped on the tool
- Black oxide finish
- Size in inches (in), sold as a single socket
Specifications
| Specification | Value |
|---|---|
| Model | J7412S |
| Quantity | 1 piece |
| Type | 8-point impact socket |
| Drive size | 1/2 in |
| Size | 3/8 in (inch size) |
| Design | TorquePlus 8-point |
| Finish | black oxide |
| Bolt clearance depth | 27/32 in |
| Nut depth | 17/64 in |
| Drive end outside diameter | 15/16 in |
| Nut end outside diameter | 47/64 in |
| Overall length | 1-1/2 in |
| Weight | 0.08 kg (0.17 lbs) |
Part numbers
| Manufacturer part number (MPN) | Big Papa SKU |
|---|---|
| J7412S | BP-G-PRO-7412S |
