Description

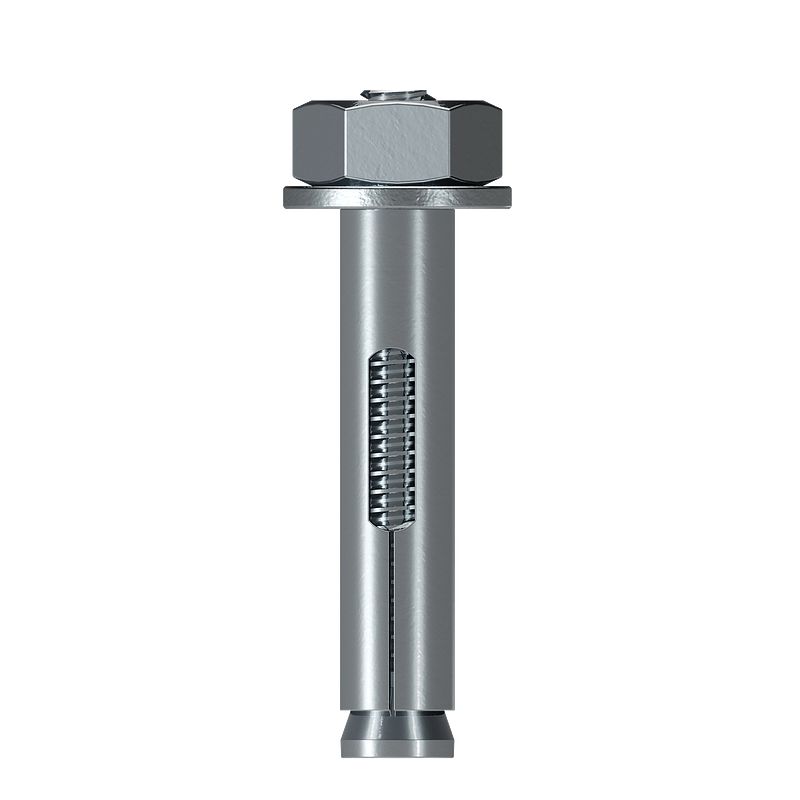

Single Simpson Strong-Tie Sleeve-All SL31112H sleeve anchor, 5/16 x 1-1/2 in (7.9 x 38 mm), with a hex-head head, in zinc-plated carbon steel. The maker supplies it pre-assembled and sells this model in boxes of 100; here it is sold by the piece.
It is a one-piece expanding sleeve anchor that the maker recommends for solid base materials such as concrete, brick and block, for example to secure door frames, brackets, rails and light fixtures. Drill a 5/16 in (7.9 mm) hole with a carbide bit, clean it, drive the anchor through the fixture and tighten; the maker gives 8 ft-lbf (10.8 N·m) as the installation torque in concrete. Installation must follow the manufacturer’s instructions and the requirements of the project.
Features
- Pre-assembled expanding sleeve anchor
- Zinc-plated carbon steel
- Hex head tightened with a standard wrench
- Hole drilled with a standard 5/16 in (7.9 mm) carbide bit
- For solid base materials such as concrete, brick and block (per the maker)
Specifications
| Specification | Value |
|---|---|
| Model | SL31112H |
| Quantity | 1 anchor (sold singly) |
| Type | Sleeve anchor, pre-assembled |
| Head | Hex Head |
| Diameter x length | 7.9 x 38 mm (5/16 x 1-1/2 in) |
| Material | Zinc-plated carbon steel |
| Bolt diameter | 1/4 in (6.4 mm) |
| Drill bit | 5/16 in (7.9 mm) carbide |
| Wrench size | 7/16 in (11 mm) |
| Threads per inch | 20 |
| Max. fixture thickness | 3/8 in (10 mm) |
| Installation torque in concrete | 8 ft-lbf (10.8 N·m) |
| Maker pack | 100 per box, 500 per carton |
| Weight | approx. 0.01 kg (estimated) |
Part numbers
| Manufacturer part number (MPN) | Big Papa SKU |
|---|---|
| SL31112H | BP-G-SIM-SL31112H |
