Description

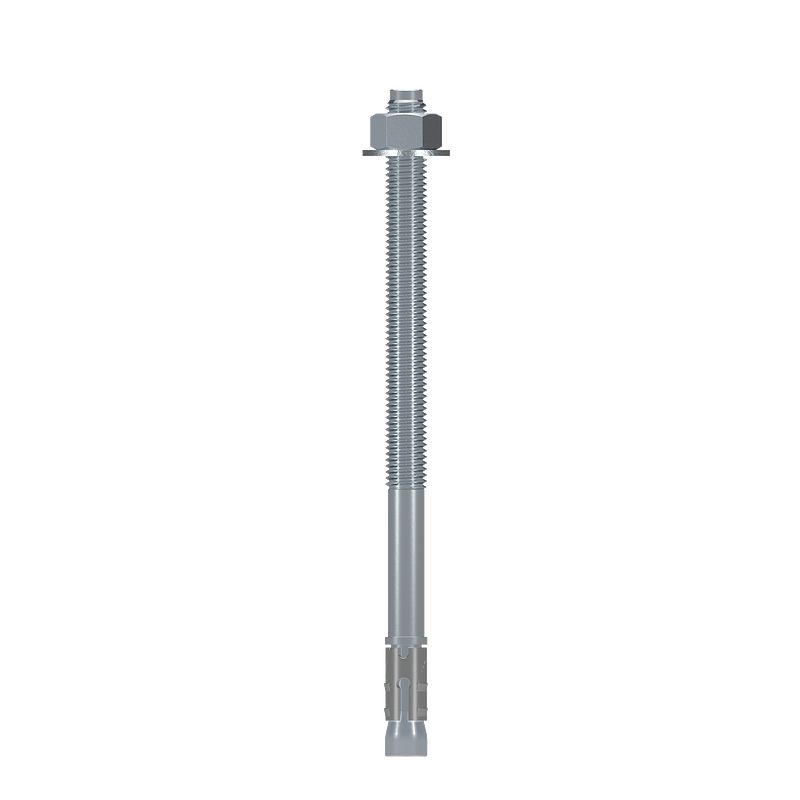

Single Simpson Strong-Tie STB2-621200 Strong-Bolt 2 wedge anchor, 5/8 x 12 in (15.9 x 305 mm), sold individually (per piece). It is a zinc-plated carbon steel stud supplied assembled with a nut and washer, with a chamfered top that helps prevent mushrooming when the anchor is driven into the hole.
Meant for fastening plates, brackets, rails, pipe supports and equipment bases to concrete. Drill a 5/8 in (15.9 mm) hole with a carbide bit, clean it, drive the anchor and tighten to 90 ft-lbf (122 N·m); do not use an impact wrench. Installation must follow the manufacturer’s instructions and the requirements of your project.
Features
- Wedge-type expansion anchor for concrete
- Supplied assembled with nut and washer
- Zinc-plated carbon steel construction
- Chamfered top to limit mushrooming when driven
- Drilled with a standard 5/8 in (15.9 mm) carbide bit
Specifications
| Specification | Value |
|---|---|
| Model | STB2-621200 |
| Quantity | 1 anchor (sold individually) |
| Type | Wedge-type expansion anchor, supplied assembled with nut and washer |
| Diameter x length | 5/8 x 12 in (15.9 x 305 mm) |
| Material | Zinc-plated carbon steel |
| Drill bit diameter | 5/8 in (15.9 mm), carbide-tipped |
| Minimum fixture hole | 11/16 in (17.5 mm) |
| Thread length | 6 in (152 mm) |
| Wrench size | 15/16 in (24 mm) |
| Installation torque | 90 ft-lbf (122 N·m) |
| Weight | approx. 0.58 kg (estimated) |
Part numbers
| Manufacturer part number (MPN) | Big Papa SKU |
|---|---|
| STB2-621200 | BP-G-SIM-STB2621200 |
