Description

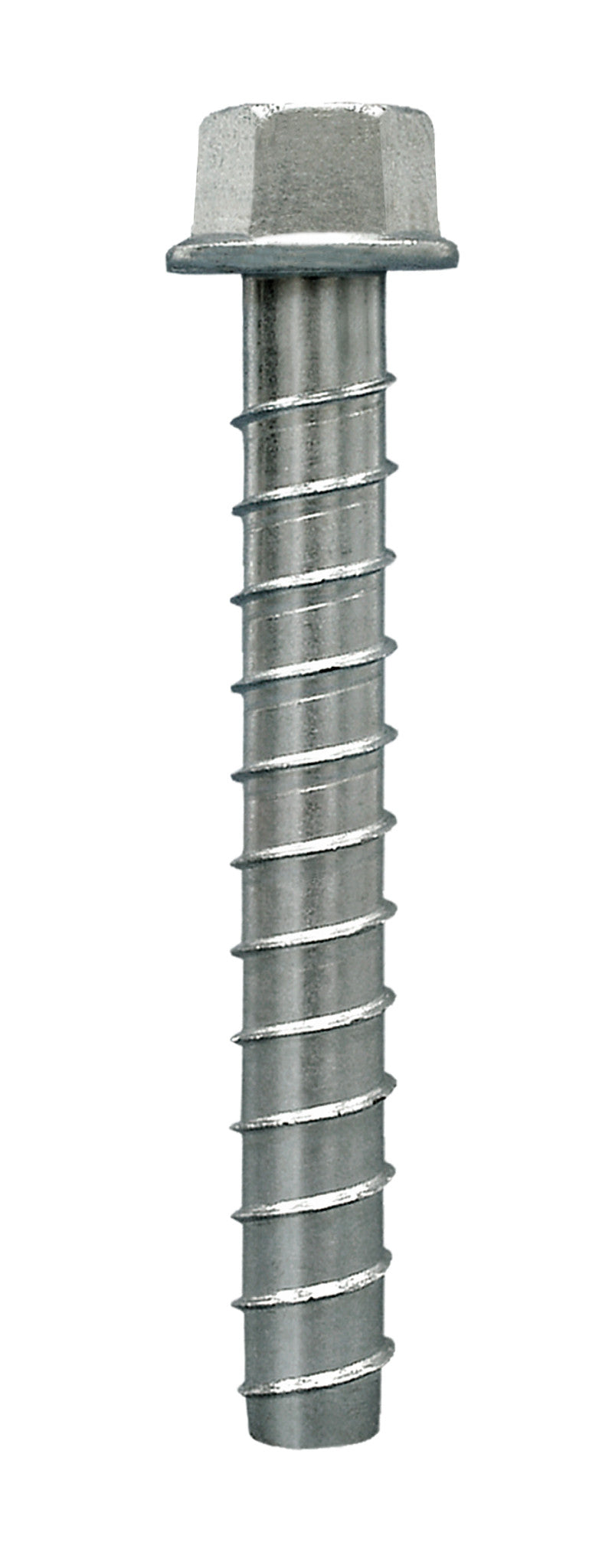

Single Simpson Strong-Tie Titen HD THD37400H screw anchor, 3/8 in x 4 in (9.5 x 102 mm), in zinc-plated carbon steel with a hex-washer head, so no separate washer is needed unless the project calls for one. Sold by the piece (1 anchor). The maker packs this model in boxes of 50 and cartons of 200.
The Titen HD is a screw anchor for concrete and masonry that is installed in a hole made with a standard ANSI-tolerance carbide bit of 3/8 in (9.5 mm), with no special bit required. It is removable, which suits temporary work such as formwork and bracing. Installation must follow the manufacturer’s instructions and the requirements of the project.
Features
- Zinc-plated carbon steel
- Hex-washer head, no separate washer needed unless required
- Standard ANSI-tolerance carbide drill bit, 3/8 in (9.5 mm)
- Serrated tip to cut and reduce installation torque
- Removable for temporary uses such as formwork and bracing
Specifications
| Specification | Value |
|---|---|
| Model | THD37400H |
| Quantity | 1 anchor (sold singly) |
| Size | 3/8 in x 4 in (9.5 x 102 mm) |
| Coating/material | Zinc-plated carbon steel |
| Head | Hex-washer |
| Drill bit diameter | 3/8 in (9.5 mm) |
| Wrench size | 9/16 in (14.3 mm) |
| Recommended fixture hole | 1/2 to 9/16 in (12.7 to 14,3 mm) |
| Min. hole overdrill | 1/4 in (6.4 mm) |
| Maker pack | 50 per box, 200 per carton |
| Weight | approx. 0.05 kg (estimated) |
Part numbers
| Manufacturer part number (MPN) | Big Papa SKU |
|---|---|
| THD37400H | BP-G-SIM-THD37400H |
