Description

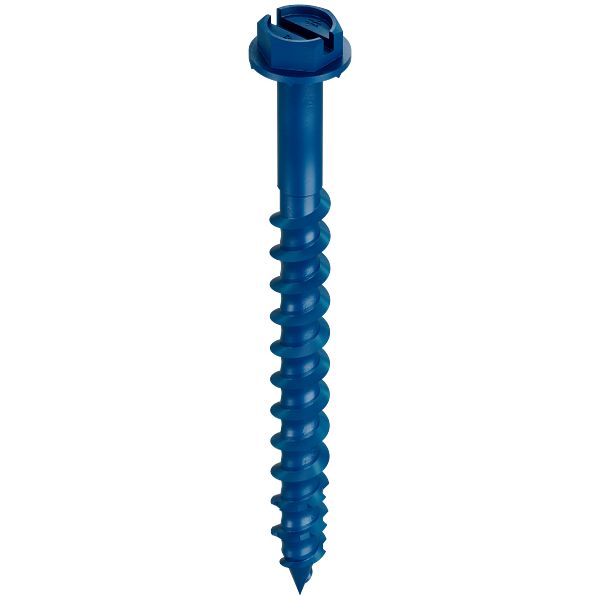

Single Simpson Strong-Tie Titen Turbo TNT18214H concrete and masonry screw anchor, 3/16 x 2-1/4 in (4.8 x 57 mm), in carbon steel with zinc plating and a baked-on ceramic coating. It has a hex head and is sold per piece, not by the pack. A torque reduction channel in the thread gives drilling dust somewhere to go, so the screw is less likely to bind in the hole.
Drill with a 5/32 in (4 mm) carbide bit, then drive with an impact driver or cordless drill fitted with a 1/4 in hex socket; the maker recommends its Titen Turbo installation tool. The maker states it is for dry interior use only. Installation must follow the manufacturer’s instructions and the requirements of the project.
Features
- Sold per piece
- Torque reduction channel in the thread for drilling dust
- Carbon steel, zinc plated with ceramic coating
- Standard ANSI carbide bit, no matched-tolerance bit needed
- Hex head, 1/4 in hex drive
Specifications
| Specification | Value |
|---|---|
| Model | TNT18214H |
| Quantity | 1 screw |
| Diameter | 3/16 in (4.8 mm) |
| Length | 2-1/4 in (57 mm) |
| Material and finish | Carbon steel, zinc plated with ceramic coating |
| Head and drive | Hex head, 1/4 in hex |
| Drill bit diameter | 5/32 in (4 mm) |
| Colour | Standard blue |
| Use | Dry interior |
| Weight | approx. 0.007 kg (estimated) |
Part numbers
| Manufacturer part number (MPN) | Big Papa SKU |
|---|---|
| TNT18214H | BP-G-SIM-TNT18214H |
