Description

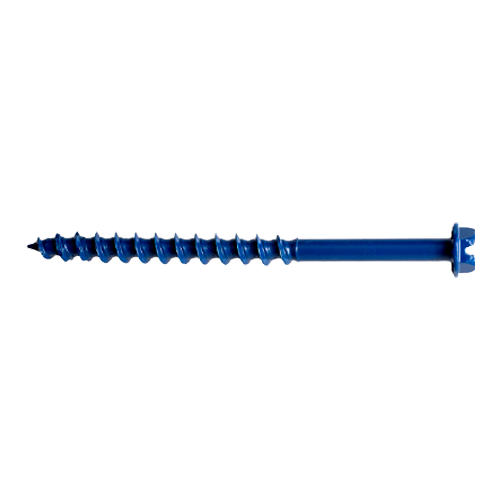

Single Simpson Strong-Tie Titen Turbo TNT25234H concrete and masonry screw, 1/4 in (6.4 mm) in diameter and 2-3/4 in (70 mm) long, with a hex head driven with a 5/16 in socket. It is sold per piece (individually), not by the box. The thread includes a channel that gives drilling dust somewhere to go, which the maker says reduces binding while driving.
It goes into a 3/16 in (4.8 mm) pre-drilled hole made with a standard carbide bit, and is meant for fixing wood, track, furring and similar items to concrete or masonry in dry interior locations. Designed for an impact driver or cordless drill. Installation must follow the manufacturer's instructions and the requirements of the project.
Features
- Torque Reduction Channel to clear drilling dust
- Reverse thread design for smoother driving
- Hex head, 5/16 in drive
- Serrated leading edge and pointed tip
- Standard 3/16 in (4.8 mm) carbide drill bit, no matched-tolerance bit needed
Specifications
| Specification | Value |
|---|---|
| Model | TNT25234H |
| Quantity | 1 screw (sold per piece) |
| Diameter | 1/4 in (6.4 mm) |
| Length | 2-3/4 in (70 mm) |
| Head | hex head (5/16 in drive) |
| Material | Carbon steel |
| Coating | Zinc plating with baked-on ceramic coating (blue) |
| Drill bit diameter | 3/16 in (4.8 mm) |
| Minimum baseplate clearance hole | 5/16 in (7.9 mm) |
| Minimum hole depth | 2-1/4 in (57 mm) |
| Nominal embedment | 1-3/4 in (44 mm) |
| Use | Dry interior environments |
| Weight | approx. 0.011 kg (estimated) |
Part numbers
| Manufacturer part number (MPN) | Big Papa SKU |
|---|---|
| TNT25234H | BP-G-SIM-TNT25234H |
