Description

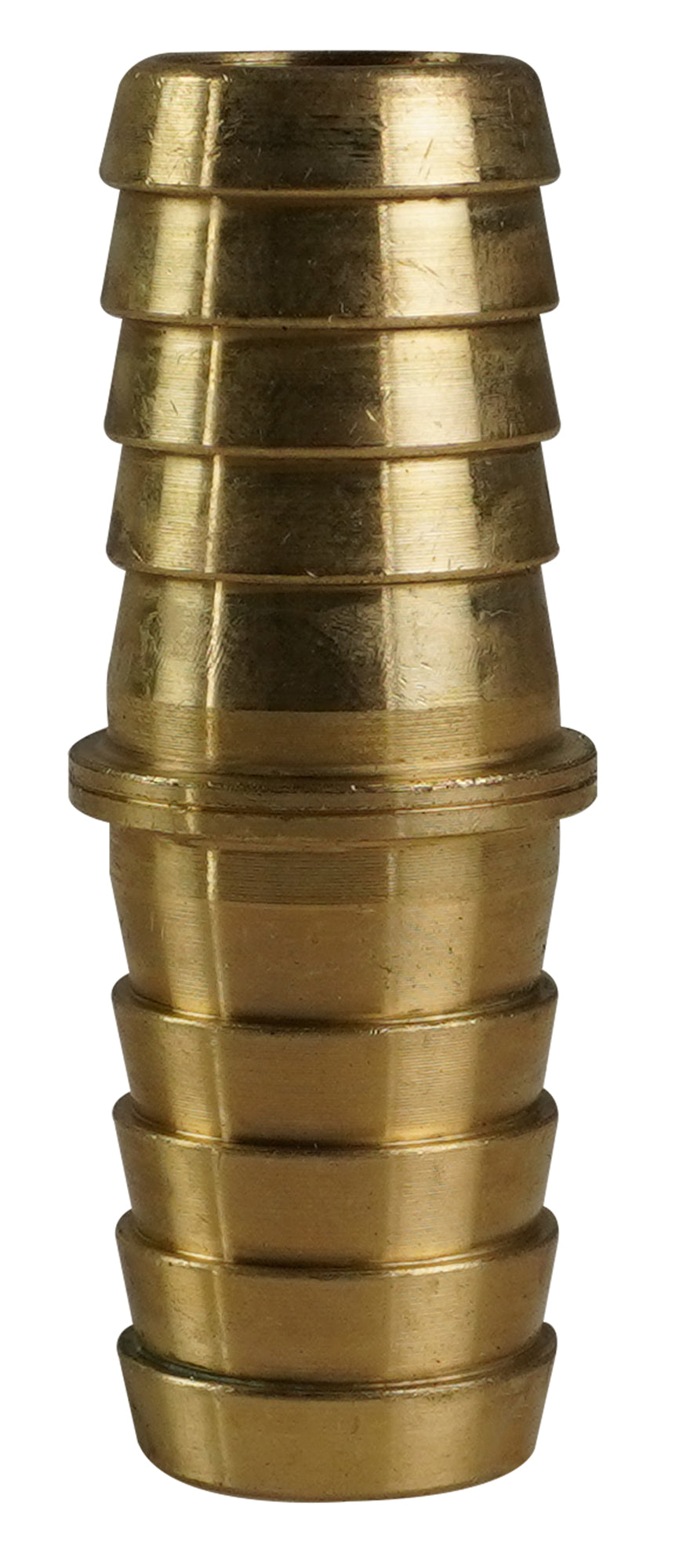

Single brass straight coupling with a 5/8 in hose barb on each end. It joins two lengths of flexible tubing, for example to repair a cut hose or extend a run.
Per the manufacturer data sheet, the series works with tubing soft enough to accept a clamp, such as vinyl or rubber, at 150 psi working pressure and -40 to 160 °F; do not exceed the rating of the tubing. Push each hose to the stop ring and secure both ends with hose clamps (not included).
Features
- Brass body
- 5/8 in hose barb on both ends
- Joins two lengths of tubing
- Sold singly
- Suits vinyl and rubber tubing secured with clamps
Specifications
| Specification | Value |
|---|---|
| Brand | Sioux Chief |
| Model | 903-122501 |
| Material | brass |
| Barb size | 5/8 in x 5/8 in |
| Type | straight barb coupling (splicer) |
| Pack quantity | 1 per bag |
| Working pressure (per the manufacturer data sheet) | 150 psi |
| Temperature (per the manufacturer data sheet) | -40 to 160 °F |
| Hose clamps | not included |
| Weight | about 0.04 kg (estimated) |
Part numbers
| Manufacturer part number (MPN) | Big Papa SKU |
|---|---|
| 903-122501 | BP-HW-SXC-903122501 |
