Description

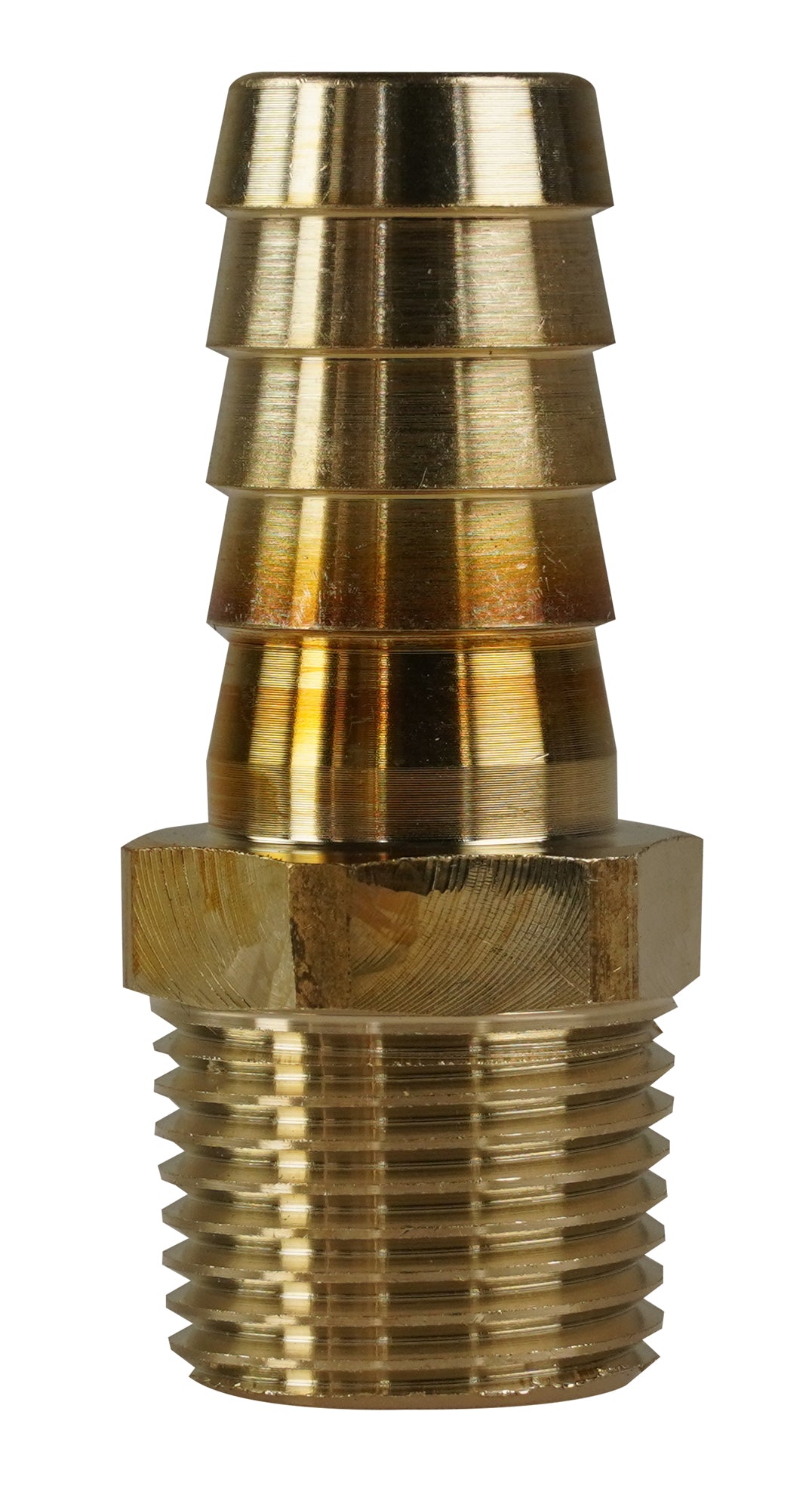

Single brass straight adapter with a 1/2 in hose barb on one end and a 3/8 in male pipe thread (MIP) on the other. It connects flexible vinyl or rubber tubing to a female threaded port.
Per the manufacturer data sheet, the series works with tubing soft enough to accept a clamp, at 150 psi working pressure and -40 to 160 °F; do not exceed the rating of the tubing. Seal the thread with joint compound or thread tape, push the hose to the stop and secure it with a hose clamp (not included).
Features
- Brass body
- 1/2 in hose barb end
- 3/8 in male pipe thread end
- Sold singly
- Suits vinyl and rubber tubing secured with a clamp
Specifications
| Specification | Value |
|---|---|
| Brand | Sioux Chief |
| Model | 903-41201601 |
| Material | brass |
| Barb size | 1/2 in |
| Thread | 3/8 in MIP |
| Type | straight adapter |
| Pack quantity | 1 per bag |
| Working pressure (per the manufacturer data sheet) | 150 psi |
| Temperature (per the manufacturer data sheet) | -40 to 160 °F |
| Hose clamp | not included |
| Weight | about 0.05 kg (estimated) |
Part numbers
| Manufacturer part number (MPN) | Big Papa SKU |
|---|---|
| 903-41201601 | BP-HW-SXC-90341201601 |
