Description

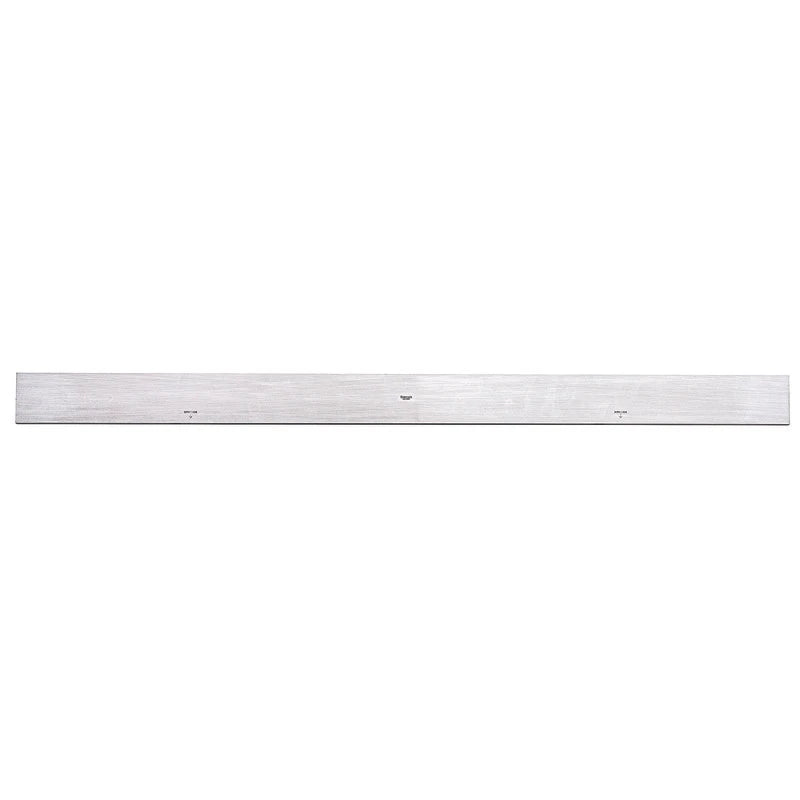

The Starrett 380-36 is a 36 in (900 mm) steel straight edge from the 380 Series. The manufacturer describes it as precision ground and finished to Starrett standards, for drawing or scribing straight lines and checking surfaces for straightness, and states that its thickness and design let it keep its shape while remaining portable and easy to handle.
Per the manufacturer, the 380 Series is not beveled or graduated, so this is a plain straight edge and not a measuring rule. It is marked with arrows at two suspension points; the manufacturer advises suspending it at these points if it is used on edge, to minimize deflection. Page-stated accuracy is +/- .0002 in per foot. Sold as a single tool.
Features
- Steel straight edge, 36 in (900 mm) long
- Precision ground, per the manufacturer
- For drawing or scribing straight lines and checking surfaces for straightness
- Not beveled or graduated
- Thickness and design retain shape while staying portable and easy to handle, per the manufacturer
- Arrows mark two suspension points for use on edge
- Accuracy +/- .0002 in per foot (as stated on the manufacturer page)
Specifications
| Specification | Value |
|---|---|
| Model | 380-36 |
| Quantity | 1 piece |
| Type | steel straight edge (not graduated) |
| Length | 36 in (900 mm) |
| Width | 2-13/32 in |
| Thickness | 7/32 in (5.5 mm) |
| Style | not beveled or graduated |
| Accuracy | +/- .0002 in per foot (per the manufacturer) |
| Material | steel |
| Weight | 2.585 kg (5.85 lbs, packed unit, per the manufacturer) |
Part numbers
| Manufacturer part number (MPN) | Big Papa SKU |
|---|---|
| 380-36 | BP-G-STT-38036 |
Documents
