Description

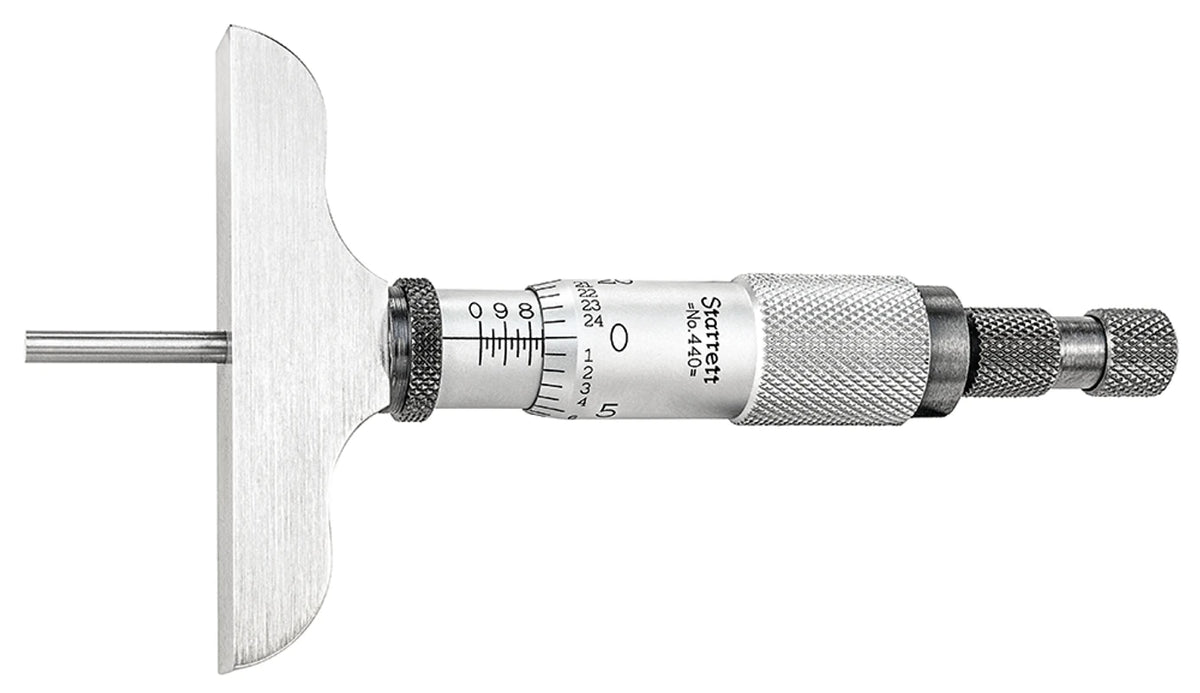

The Starrett 440Z-3RL is a mechanical depth micrometer with a 0-3 in range and .001 in graduations. It has a 2-1/2 in base, a ratchet thimble and a ring-type knurled lock nut, and comes with 3 measuring rods of 1/8 in diameter.
Supplied with a padded case. Used to read the depth of holes, slots and steps in the workshop or the tool room. Sold as one complete set.
Features
- Mechanical depth micrometer
- Range 0-3 in, .001 in graduations
- 2-1/2 in base
- 3 measuring rods, 1/8 in diameter
- Ratchet thimble
- Ring-type knurled lock nut
- Padded case included
Specifications
| Specification | Value |
|---|---|
| Model | 440Z-3RL |
| Quantity | 1 set |
| Type | depth micrometer, mechanical |
| Range | 0-3 in (0-76.2 mm, converted) |
| Graduations | .001 in (0.025 mm, converted) |
| Base length | 2-1/2 in (63.5 mm, converted) |
| Measuring rods | 3 |
| Rod diameter | 1/8 in (3.2 mm, converted) |
| Thimble | ratchet |
| Lock nut | ring type, knurled |
| Case | padded |
Part numbers
| Manufacturer part number (MPN) | Big Papa SKU |
|---|---|
| 440Z-3RL | BP-G-STT-440Z3RL |
