Description

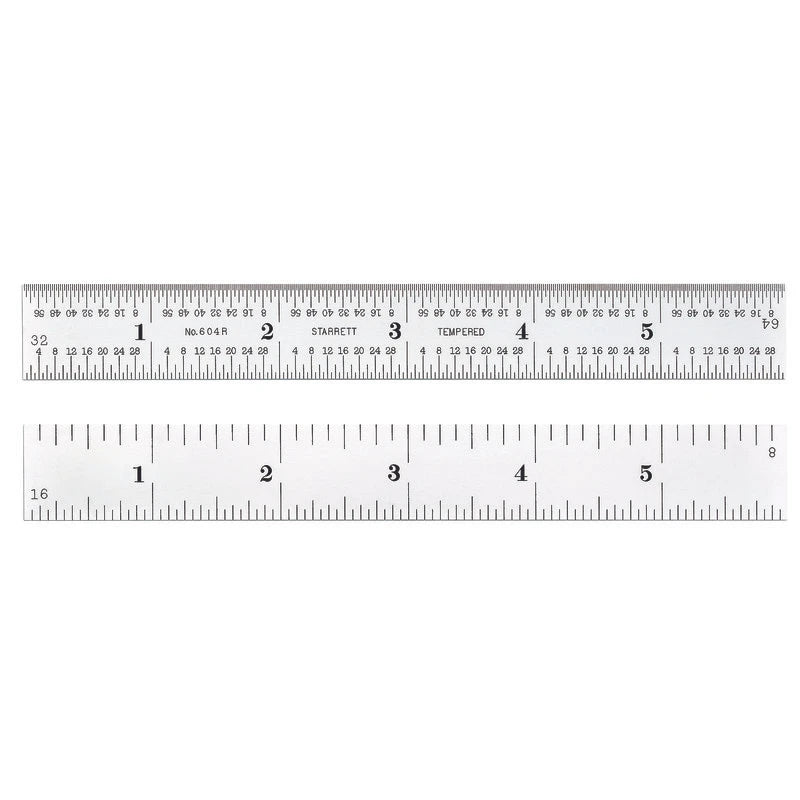

The Starrett 604R-6 is a 6 in spring-tempered steel rule with inch graduations. Per the manufacturer, the graduations are in 8ths, 16ths, quick-reading 32nds and 64ths (4R graduation type), with a single row of inch figures and a regular steel finish.
The rule is 3/4 in wide and 3/64 in thick. It is an inch-only rule, with no metric scale listed. Sold as a single rule.
Features
- 6 in spring-tempered steel rule
- Inch graduations at 8ths, 16ths, quick-reading 32nds and 64ths (4R)
- Single row of inch figures
- Regular steel finish
- 3/4 in wide, 3/64 in thick
- Inch only
Specifications
| Specification | Value |
|---|---|
| Model | 604R-6 |
| Quantity | 1 piece |
| Type | steel rule |
| Length | 6 in |
| Width | 3/4 in |
| Thickness | 3/64 in |
| Graduations | 8ths, 16ths, quick-reading 32nds, 64ths |
| Graduation type | 4R |
| Style | single row of inch figures |
| Finish | regular steel |
| Material | spring-tempered steel |
Part numbers
| Manufacturer part number (MPN) | Big Papa SKU |
|---|---|
| 604R-6 | BP-G-STT-604R6 |
