Description

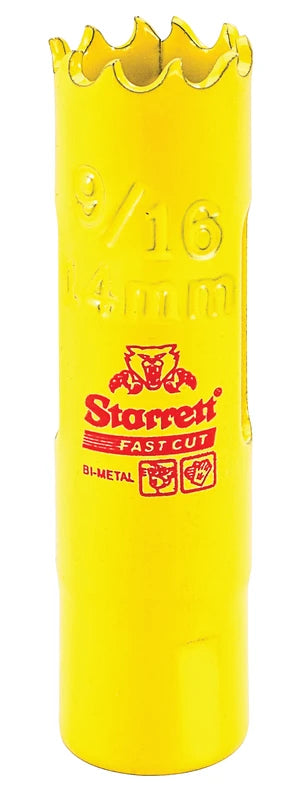

The Starrett FCH0096-G is a 9/16 in (14 mm) bi-metal hole saw with a threaded mount and a cutting depth of 1-5/8 in (41 mm). According to the manufacturer, it has positive-rake HSS teeth on an alloy backing.
It is listed for use with a hand-held drill or a drill press, and takes an arbor of type A1 or A4 (thread size 1/2-20). It has a straight tooth pitch of 5.5 teeth per inch. Sold as a single hole saw.
Features
- Diameter 9/16 in (14 mm), cutting depth 1-5/8 in (41 mm)
- Bi-metal construction: positive-rake HSS teeth on an alloy backing
- Threaded mount, thread size 1/2-20
- Arbor type A1 or A4
- Straight pitch, 5.5 teeth per inch
- For hand-held drill or drill press
- Sold as a single hole saw
Specifications
| Specification | Value |
|---|---|
| Model | FCH0096-G |
| Quantity | 1 piece |
| Type | bi-metal hole saw, straight pitch |
| Diameter | 9/16 in (14 mm) |
| Cutting depth | 1-5/8 in (41 mm) |
| Teeth per inch | 5.5 |
| Teeth | bi-metal, HSS |
| Body material | steel |
| Color | yellow |
| Thread size | 1/2-20 |
| Arbor type | A1 or A4 |
Part numbers
| Manufacturer part number (MPN) | Big Papa SKU |
|---|---|
| FCH0096-G | BP-G-STT-FCH0096G |
