Description

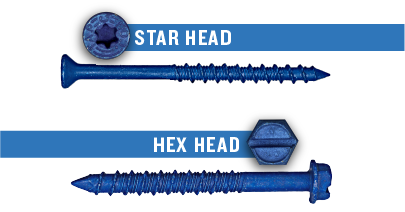

Blue-coated concrete screw with a slotted hex washer head, used to fasten wood, brackets, electrical boxes and light fixtures to concrete, brick and concrete block. It cuts its own thread in a pre-drilled hole, so no separate expansion sleeve is needed.
Pack contents: 25 screws (drill bit not included). Drill a 3/16″ (4.8 mm) hole at least 1/4″ deeper than the embedment, clear the dust, then drive the screw with a hex socket or a slotted driver until seated.
Features
- Self-tapping thread cuts into concrete, brick and block
- Slotted hex washer head for socket or flat driver
- Blue Climaseal coating (corrosion-resistant coating per the manufacturer)
- Removable, no expansion pressure on the hole
- Pack of 25 for repeat fastening jobs
Specifications
| Specification | Value |
|---|---|
| Brand | Tapcon |
| Model | 843-032 |
| Type | Concrete screw anchor |
| Head | Slotted hex washer |
| Material/finish | Steel, blue Climaseal coating |
| Diameter | 1/4″ (6.4 mm) |
| Length | 3-1/4″ (83 mm) |
| Pack quantity | 25 |
| Drill bit size | 3/16″ (4.8 mm) |
| Drill bit in pack | No |
| Shipping weight | 0.25 kg (estimated) |
Part numbers
| Manufacturer part number (MPN) | Big Papa SKU |
|---|---|
| 843-032 | BP-HW-TPC-843032 |
