Novaflex chemical hose, 10 ft long, 1 in inside diameter, green, supplied as an assembly with 304 stainless steel 1 in male NPT fittings at both ends.
Features
- Length as printed: 10 ft; inside diameter 1 in; outside diameter 1 1/2 in
- Maximum working pressure as printed: 250 psi at 70 °F; safety factor 4:1, per the manufacturer
- Temperature range as printed: -40 °F to 212 °F, per the manufacturer
- Polyester and polypropylene tube, green; bend radius 4 in
- 304 stainless steel 1 in male NPT fittings at both ends
- Media for which the manufacturer lists the hose: acetic, citric, formic, hydrochloric, hydrofluoric, nitric, phosphoric (40% solution) and sulfuric acids, ketones, ethanol, isopropanol, methanol, antifreeze, ethylene glycol, glycerin, calcium chloride, cyclohexane, heptane, hexane, kerosene, Stoddard solvent, formaldehyde, hydrazine, sodium hydroxide, bleach, xylene, DEF, ammonia, naphtha, hydrogen peroxide, mineral oil
- Not recommended per the manufacturer: biodiesel and diesel fuel; check compatibility with your product before ordering

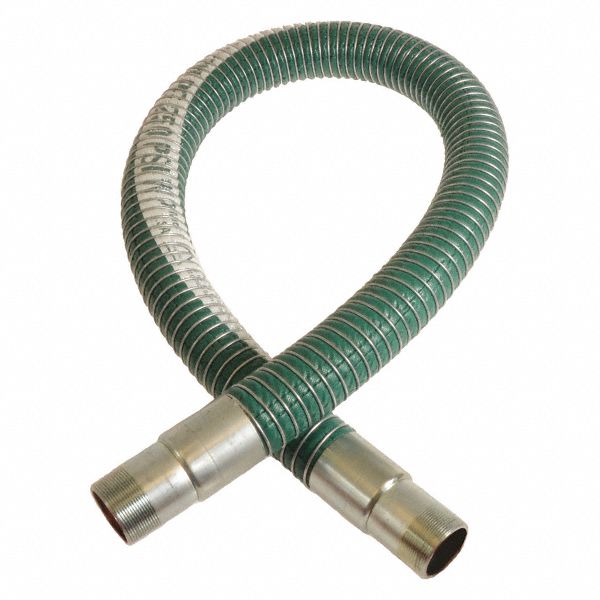

- Photo: hose from the same family, the length shown may differ from 10 ft
Specifications
| Specification | Value |
|---|
| Brand | Novaflex |
| Part number | CXPG100-10NN |
| Length | 10 ft |
| Inside diameter | 1 in |
| Outside diameter | 1 1/2 in |
| Maximum working pressure (70 °F) | 250 psi |
| Safety factor | 4:1 |
| Temperature range | -40 °F to 212 °F |
| Tube material | Polyester, polypropylene |
| Fittings | 1 in male NPT, 304 stainless steel (both ends) |
| Bend radius | 4 in |
| Colour | Green |
| Sold as | 1 hose assembly |
Reference
| Manufacturer part number (MPN) | Big Papa SKU |
|---|
| CXPG100-10NN | BP-W-NOVAFLEX-CXPG100-10NN |
