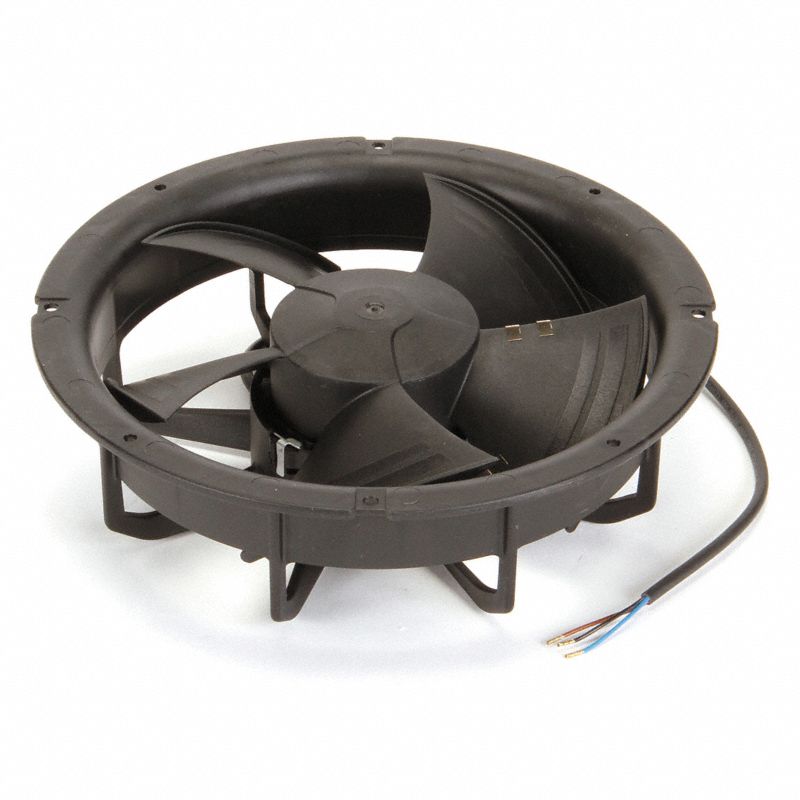

ebm-papst W1G200-EC91-45 wet-location round axial fan, 9 7/8 in diameter, 3 1/8 in depth, 230 V AC supply, 50/60 Hz, 442 CFM air flow.
Features
- 230 V AC supply, 50/60 Hz, as listed: 0.24 A and 31 W
- Lead wire connection: to be hard-wired, no plug listed (not directly suited to local sockets)
- Ball bearings, thermal protection, IP55 protection rating
- Vertical or horizontal mounting
Specifications
| Specification | Value |
|---|
| Brand | ebm-papst |
| Part number | W1G200-EC91-45 |
| Type | Wet-location round axial fan |
| Voltage | 230 V AC |
| Frequency | 50/60 Hz |
| Current | 0.24 A |
| Power | 31 W |
| Air flow at 0 in. static pressure | 442 CFM |
| Speed | 2100 RPM |
| Diameter | 9 7/8 in |
| Depth | 3 1/8 in |
| Mounting hole spacing | 9 5/16 in |
| Electrical connection | Lead wires |
| IP rating | IP55 |
| Bearings | Ball |
| Motor insulation class | B |
| Thermal protection | Yes |
| Maximum ambient temperature | 122 °F |
| Housing material | Fiberglass reinforced polypropylene |
| Blade material | PA plastic |
| Mounting position | Vertical or horizontal |
| Standards (per the manufacturer) | UL and C-UL Recognized, RoHS compliant |
| Sold as | 1 fan |
Reference
| Manufacturer part number (MPN) | Big Papa SKU |
|---|
| W1G200-EC91-45 | BP-W-EBM-W1G200-EC91-45 |
