Description

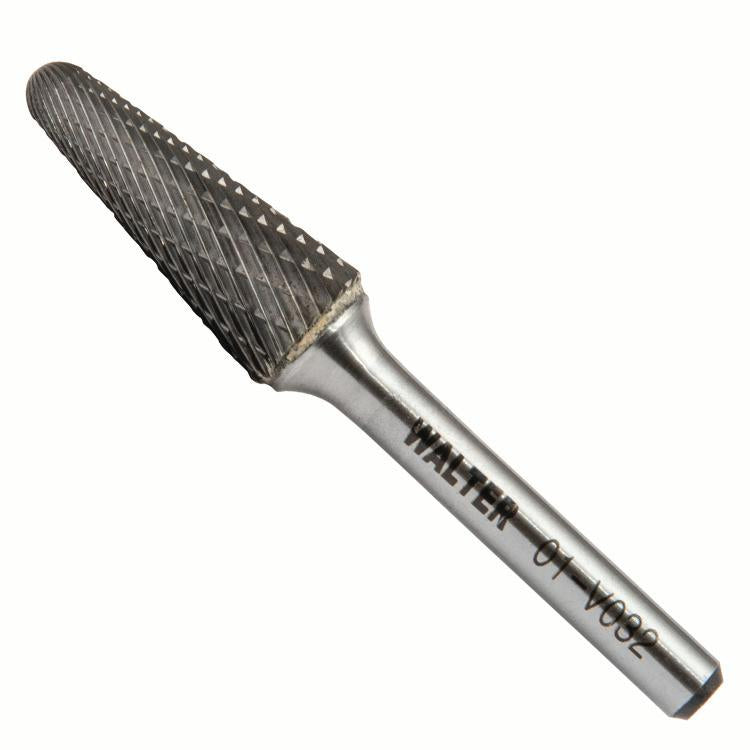

The Walter 01V032 is a single carbide burr, shape code SL-4 14°, with a 14° included angle head and double cut. The manufacturer lists a 1/4 in shank (hardened steel), 1/2 in cutting diameter and 1-1/8 in cut length.
The head is listed as tungsten carbide with a bright finish. It comes in a plastic tube and is sold as a single piece. Check the shank diameter against your tool before ordering.
Features
- Shape code SL-4 14°, 14° included angle head
- Double cut
- 1/4 in shank, hardened steel
- 1/2 in cutting diameter
- 1-1/8 in cut length
- Tungsten carbide, bright finish
- Plastic tube, sold as a single piece
Specifications
| Specification | Value |
|---|---|
| Model | 01V032 |
| Quantity | 1 piece |
| Type | single carbide burr |
| Shape code | SL-4 14° |
| Head shape | 14° included angle |
| Cut type | double cut |
| Shank diameter | 1/4 in (approx. 6.4 mm, converted) |
| Shank material | hardened steel |
| Cutting diameter | 1/2 in (approx. 12.7 mm, converted) |
| Cut length | 1-1/8 in (approx. 28.6 mm, converted) |
| Head material | tungsten carbide |
| Finish | bright |
| Packaging | plastic tube |
Part numbers
| Manufacturer part number (MPN) | Big Papa SKU |
|---|---|
| 01V032 | BP-G-WAL-01V032 |
