Description
The Walter 05-Z002 is a 2 in pilot pin for annular cutters, listed on the manufacturer's page for compatible cutter sizes from 1/2 to 2-3/8 in. The page gives a 1/4 in round shank and a bright finish. Sold as a single pin.

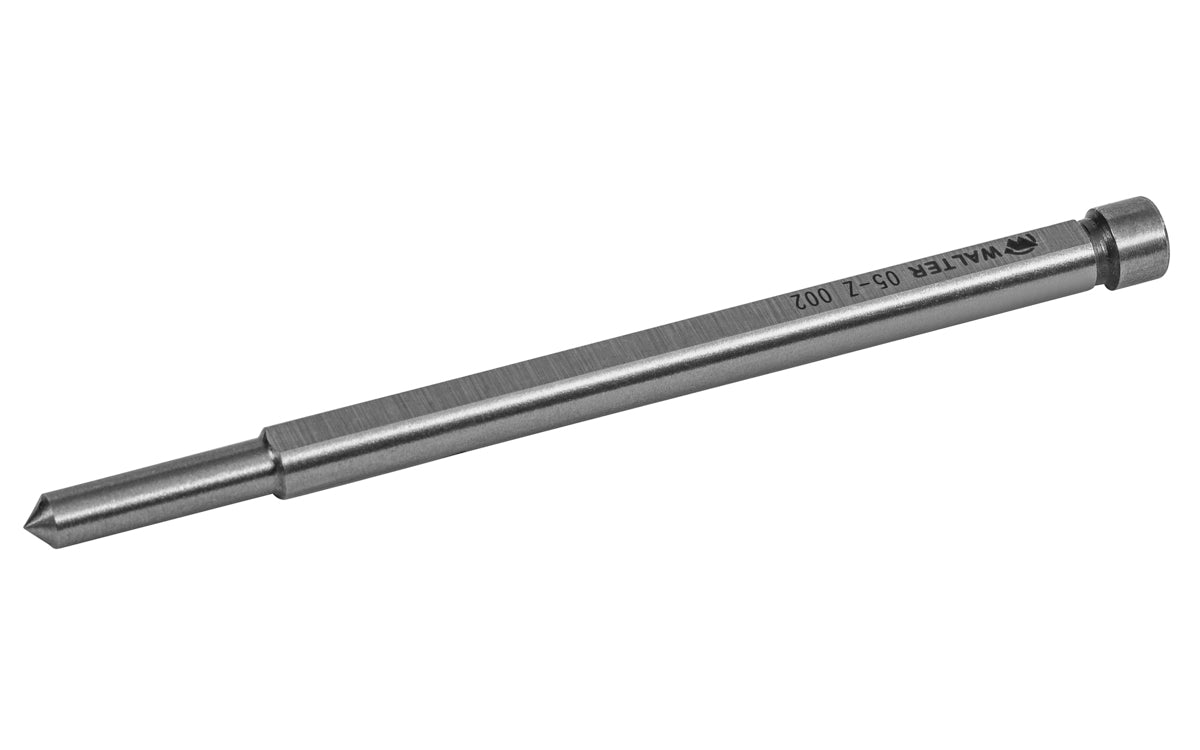

The page describes the pin as positioning the annular cutter over the drilling spot and ejecting the slug after drilling, and as an accessory for magnetic drilling machines. The photo shows a single pin with a head and a stepped end.
Features
- 2 in pilot pin for annular cutters
- Compatible cutter sizes 1/2 to 2-3/8 in
- 1/4 in round shank, bright finish
- Accessory for magnetic drilling machines, per the page
- Sold as a single pin
Specifications
| Specification | Value |
|---|---|
| Brand | Walter |
| Model | 05-Z002 |
| Quantity | 1 piece |
| Type | pilot pin for annular cutters |
| Length | 2 in (approx. 50.8 mm, converted) |
| Compatible cutter sizes | 1/2 to 2-3/8 in (approx. 12.7 to 60.3 mm, converted) |
| Shank size | 1/4 in (approx. 6.3 mm, converted) |
| Shank type | round |
| Finish | bright |
Part numbers
| Manufacturer part number (MPN) | Big Papa SKU |
|---|---|
| 05-Z002 | BP-G-WAL-05Z002 |
