Description

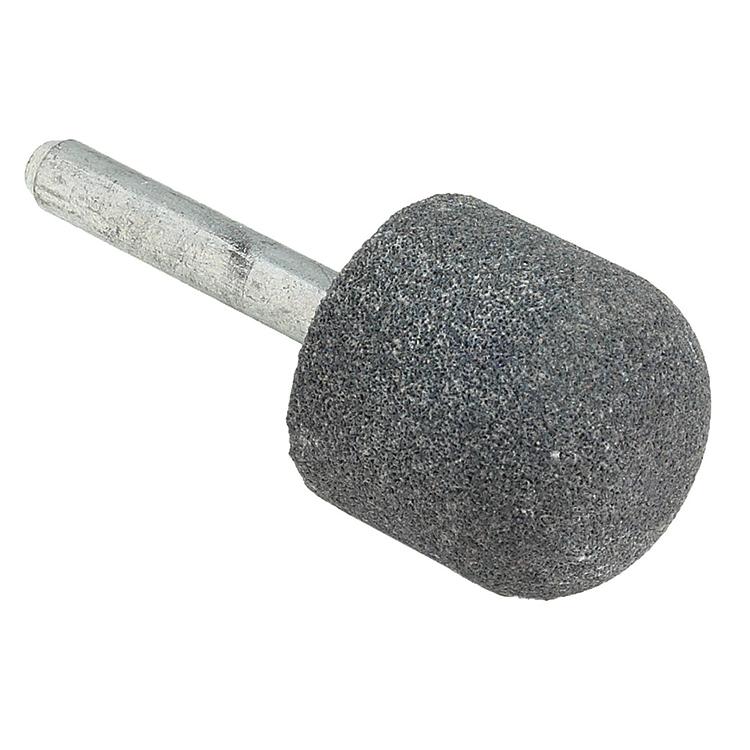

The Walter 12-D057 is an A-21 mounted point listed at 1 in diameter and 1 in length (25.4 mm and 25.4 mm, converted), on a 1/4 in shank (6.4 mm, converted). The manufacturer's page gives grit 36 (grade A-36) and aluminum oxide as the abrasive material.
The title on the manufacturer's page includes MILD STEEL (A-21 MTD POINT/MILD STEEL); it is repeated here as printed. It is sold as a single piece. The shape code A-21 is quoted as printed by the manufacturer.
Features
- A-21 mounted point
- Diameter 1 in (25.4 mm, converted)
- Length 1 in (25.4 mm, converted)
- Shank 1/4 in (6.4 mm, converted)
- Grit 36 (grade A-36), aluminum oxide abrasive
- Manufacturer model code 12-D057 (printed on the page without the dash)
- Sold as a single piece
Specifications
| Specification | Value |
|---|---|
| Model | 12-D057 |
| Quantity | 1 piece |
| Type | mounted point, shape A-21 |
| Diameter | 1 in (25.4 mm, converted) |
| Length | 1 in (25.4 mm, converted) |
| Shank | 1/4 in (6.4 mm, converted) |
| Grit | 36 |
| Grade | A-36 |
| Abrasive material | aluminum oxide |
| Manufacturer title | A-21 MTD POINT/MILD STEEL |
Part numbers
| Manufacturer part number (MPN) | Big Papa SKU |
|---|---|
| 12-D057 | BP-G-WAL-12D057 |
