Description

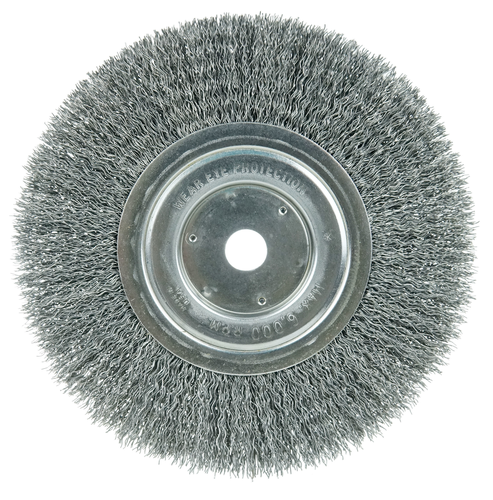

The Weiler 02335 is a 7 in crimped wire wheel brush with a medium face (3/4 in face width, 1-9/16 in trim length) and 0.014 in steel wire. The manufacturer lists cleaning and deburring as applications, in general-purpose use.
Per the manufacturer, it gives a flexible brushing action for general-purpose cleaning and deburring, and is intended for bench or pedestal grinders, straight grinders and other stationary machines. Arbor hole: 5/8 in. Maximum speed 6000 RPM, per the manufacturer. Sold as a single wheel.
Features
- Medium face, 3/4 in face width
- Trim length: 1-9/16 in
- Crimped steel wire, 0.014 in diameter
- Arbor hole: 5/8 in
- Cleaning and deburring applications, per the manufacturer
- Maximum speed 6000 RPM, per the manufacturer
- Intended for bench or pedestal grinders and straight grinders, per the manufacturer
Specifications
| Specification | Value |
|---|---|
| Model | 02335 |
| Quantity | 1 wheel (sold each) |
| Type | crimped wire wheel brush |
| Diameter | 7 in |
| Face width | 3/4 in |
| Trim length | 1-9/16 in |
| Wire material | steel |
| Wire diameter | 0.014 in |
| Arbor hole | 5/8 in |
| Attachment | unthreaded hole |
| Maximum speed (per the manufacturer) | 6000 RPM |
| Applications | cleaning, deburring |
Part numbers
| Manufacturer part number (MPN) | Big Papa SKU |
|---|---|
| 02335 | BP-G-WEI-02335 |
