Description

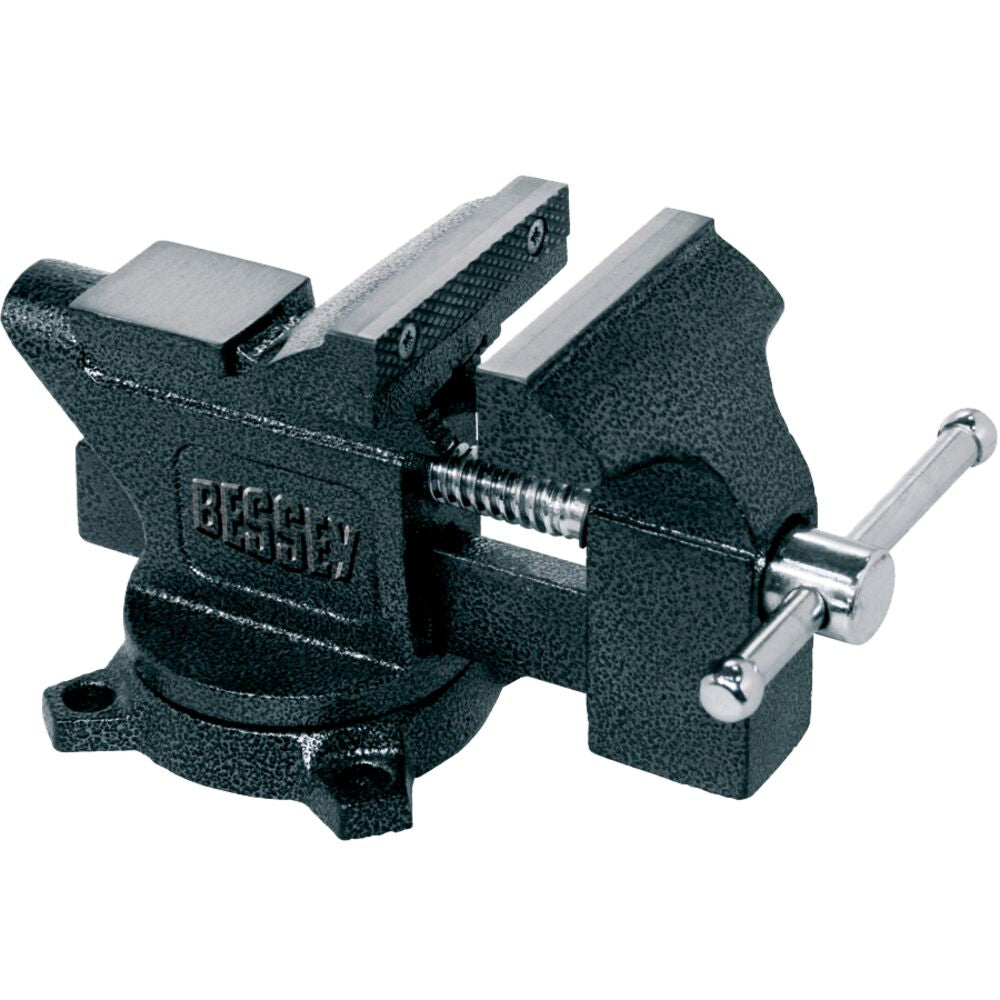

Bessey BV-HW45 light-duty bench vise with a swivel base that turns through 270° and locks with one lockdown. It has a small built-in anvil, a throat depth of 1-3/4 in (44 mm) and a pipe capacity of 1 in (25 mm). The body is gray cast iron.
Bolted to a bench through four mounting holes, it is meant for lighter jobs such as holding small parts for filing, drilling or assembly. For heavier or repeated metalworking, a heavy-duty model such as the BV-HD40 or BV-HD60 is the better fit. Wear eye protection and follow the maker’s manual.
Features
- Gray cast iron body, 30,000 psi tensile strength (per the maker)
- 270° swivel base with 1 lockdown
- 4 mounting holes for bolting to the bench
- Small built-in anvil
- Pipe capacity 1 in (25 mm)
Specifications
| Specification | Value |
|---|---|
| Model | BV-HW45 |
| Swivel base | 270°, 1 lockdown |
| Throat depth | 1-3/4 in (44 mm) |
| Pipe capacity | 1 in (25 mm) |
| Mounting | 4 holes for bench bolts |
| Material | Gray cast iron |
| Anvil | Small, built in |
| Weight | approx. 11 lb (5.0 kg), maker brochure |
Part numbers
| Manufacturer part number (MPN) | Big Papa SKU |
|---|---|
| BV-HW45 | BP-HW-BSY-BVHW45 |
Documents
