Description

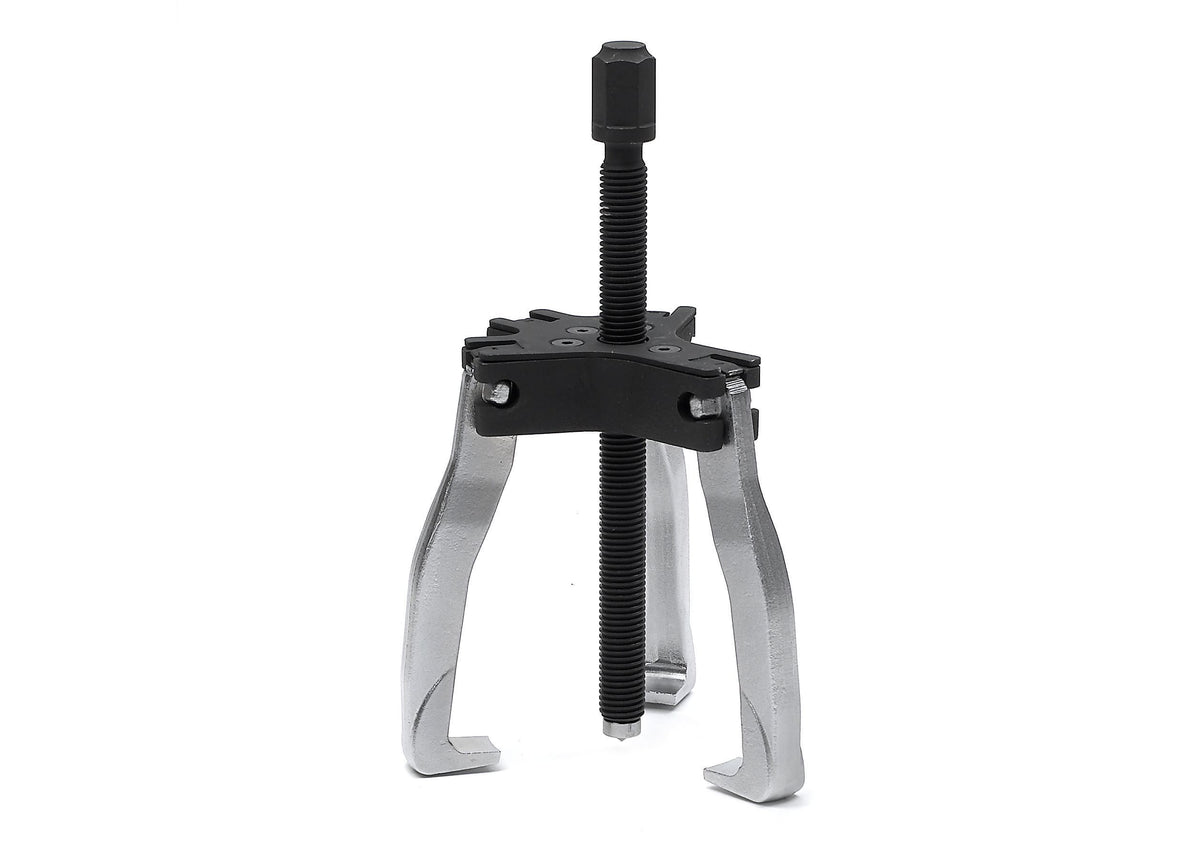

The GearWrench 3625 is a 5 ton ratcheting puller that can be set up with 2 or 3 jaws for internal or external pulling. The manufacturer states that its indexing jaw design saves time: the legs index into position and stay in place, so each jaw can be connected one at a time without help.
Per the manufacturer, the jaws can be reversed from external to internal style in seconds, with a maximum spread of 5 in and a stated pulling capacity of 5 tons. Steel construction. Sold as a single puller.
Features
- Ratcheting puller with time-saving indexing jaw design, per the manufacturer
- Legs index into position and stay in place so each jaw can be connected one at a time
- Can be set up as a 2-leg or 3-leg puller
- Jaws can be reversed from external to internal style in seconds, per the manufacturer
- Maximum spread of 5 in
- Pulling capacity of 5 tons, per the manufacturer
- Steel construction
Specifications
| Specification | Value |
|---|---|
| Model | 3625 |
| Quantity | 1 piece |
| Type | ratcheting puller, 2 or 3 jaw, internal/external |
| Capacity | 5 ton |
| Jaw capacity (maximum spread) | 5 in |
| Jaw thickness | 0.562 in |
| Jaw width | 0.687 in |
| Screw length | 8.25 in |
| Thread size | 9/16-12 |
| Material | steel |
| Packaging | boxed |
| Weight | 1.501 kg (3.31 lb, catalog weight, converted) |
Part numbers
| Manufacturer part number (MPN) | Big Papa SKU |
|---|---|
| 3625 | BP-G-GWR-3625 |
