Description

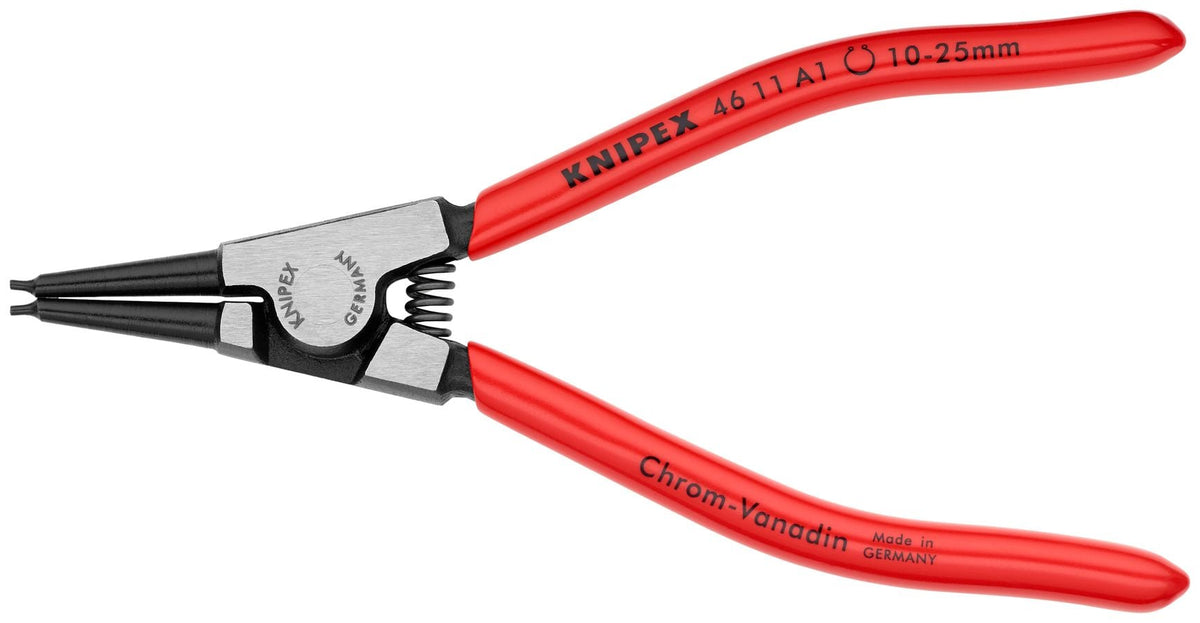

The Knipex 46 11 A1 is a 5-1/2 in external snap ring pliers with solid, straight, non-slip tips, made for installing or removing circlips on shafts. The manufacturer lists it for shafts from 25/64 in to 1 in (marked 10-25 mm on the tool), and states that the tips are forged as one part of the tool.
Per the manufacturer, the pliers body and tips are chrome vanadium steel, forged and oil-hardened, with plastic-coated handles; tip width is 3/64 in. Designed to DIN 5254 A. Sold as a single tool.
Features
- External circlip pliers for installing or removing circlips on shafts
- Stated range: shafts from 25/64 in to 1 in (10-25 mm marked on the tool)
- Solid, straight, non-slip tips
- Tips forged as one part of the tool, per the manufacturer
- Chrome vanadium steel, forged and oil-hardened
- Plastic-coated handles
- Tip width 3/64 in
- Polished finish
Specifications
| Specification | Value |
|---|---|
| Model | 46 11 A1 |
| Quantity | 1 piece |
| Type | external snap ring pliers, straight tips |
| Shaft size | 25/64 in to 1 in (10-25 mm marked on the tool) |
| Length | 5-1/2 in |
| Width | 1-1/4 in |
| Height | 5/8 in |
| Tip width | 3/64 in |
| Joint | rivet |
| Handle | plastic coating |
| Finish | polished |
| Material | chrome vanadium steel, forged, oil-hardened |
| Standard | DIN 5254 A |
| Country of origin | Germany |
| Weight | 0.195 lbs (0.088 kg) |
Part numbers
| Manufacturer part number (MPN) | Big Papa SKU |
|---|---|
| 46-11-A1 | BP-G-KNI-4611A1 |
