Description

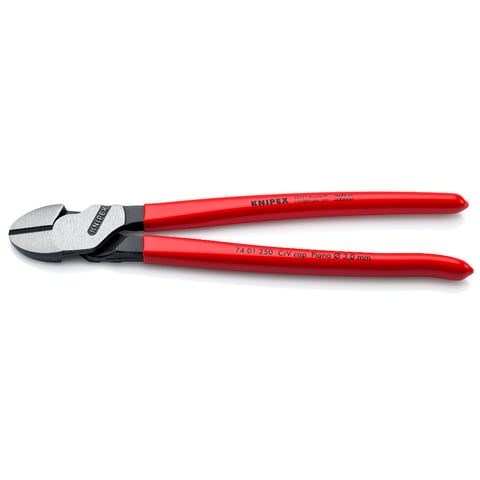

The Knipex 74 01 250 is a 250 mm high leverage diagonal cutter built for very tough, continuous use. According to the manufacturer, the cutting edge angle and transmission ratio are matched to give high cutting performance with minimum effort.
The precision cutting edges are also induction-hardened (approx. 64 HRC per the manufacturer) and suit all wire types including piano wire, with a stated capacity of Ø 3.0 mm on piano wire. The pliers are black atramentized with a polished head and plastic-coated handles. Sold as a single tool.
Features
- For very tough, continuous use
- High cutting performance with minimum effort through matched cutting edge angle and transmission ratio (per the manufacturer)
- Induction-hardened precision cutting edges, approx. 64 HRC (per the manufacturer)
- Suitable for all wire types including piano wire
- Plastic-coated handles
Specifications
| Specification | Value |
|---|---|
| Model | 74 01 250 |
| Quantity | 1 piece |
| Type | high leverage diagonal cutter |
| Length | 250 mm |
| Dimensions | 250 x 53 x 16 mm |
| Finish | black atramentized, polished head |
| Handles | plastic coating |
| Cutting capacity, medium-hard wire | Ø 4.6 mm |
| Cutting capacity, hard wire | Ø 3.5 mm |
| Cutting capacity, piano wire | Ø 3.0 mm |
| Standard | DIN ISO 5749 |
| Weight | 0.391 kg |
Part numbers
| Manufacturer part number (MPN) | Big Papa SKU |
|---|---|
| 74-01-250 | BP-G-KNI-7401250 |
