Description

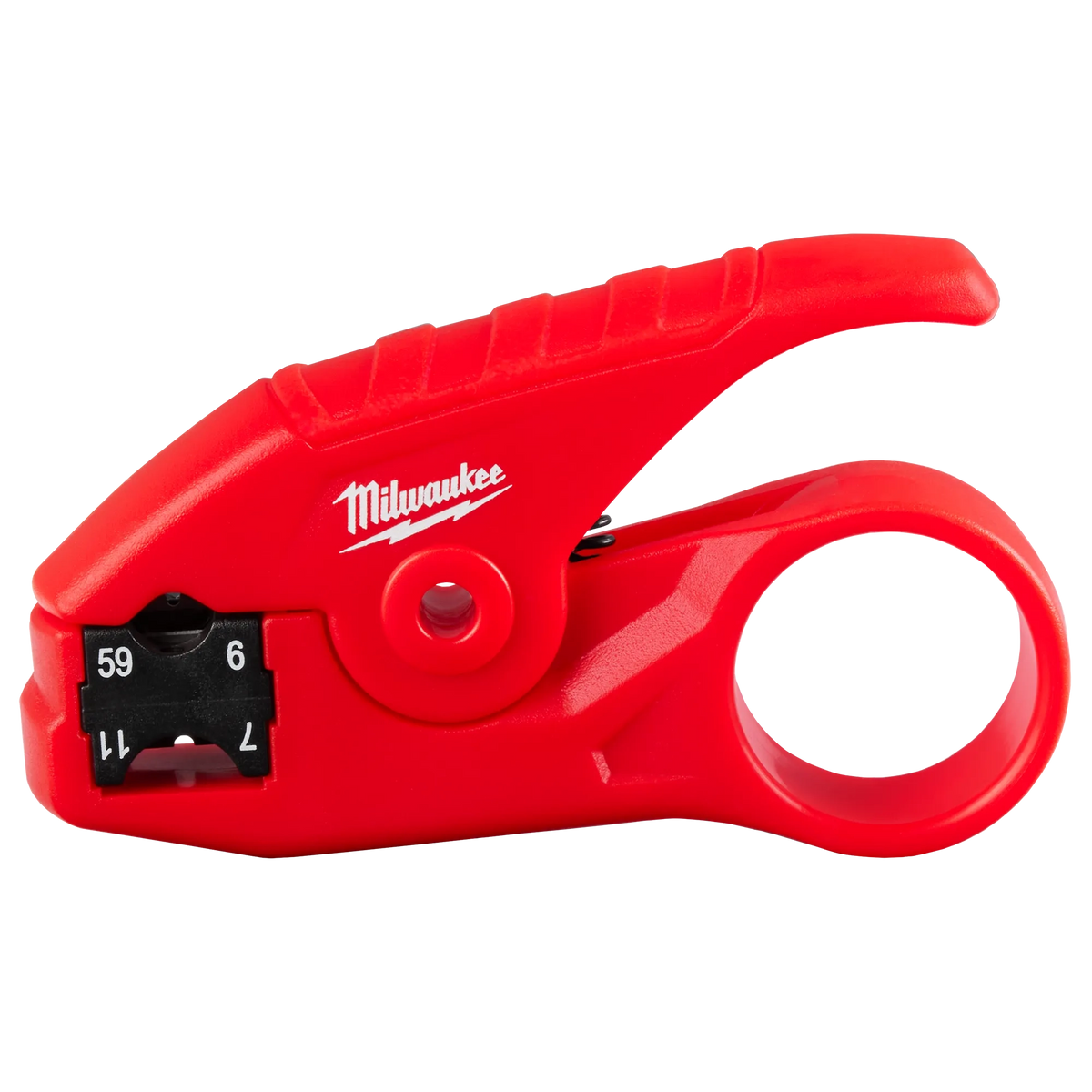

The Milwaukee 48-22-3064 is a coax stripper with a dual-sided cartridge for RG6, RG6Q, RG59, RG7 and RG11 coaxial cable. According to the manufacturer, two fixed blades on either side of the cartridge give the industry-standard two-level prep of 1/4 in x 1/4 in, and the spring-loaded design strips the outer jacket easily and consistently.
Per the manufacturer, the compact tool has an optimized finger loop and is used to prepare cable for connector termination. The housing is ABS plastic. Sold as a single tool.
Features
- Dual-sided cartridge strips 4 cable sizes
- Preps and strips RG6, RG6Q, RG59, RG7 and RG11 coaxial cable
- Fast two-level prep, 1/4 in and 1/4 in
- Spring-assisted stripping of the outer jacket
- Fixed blades on either side of the cartridge
- Optimized finger loop
- Compact design
- Prepares cable for connector termination
Specifications
| Specification | Value |
|---|---|
| Model | 48-22-3064 |
| Quantity | 1 piece |
| Type | coax stripper |
| Compatible cable types | RG6, RG6Q, RG59, RG7, RG11 |
| Cable sizes per cartridge | 4 (dual-sided) |
| Strip prep | 1/4 in and 1/4 in (approx. 6 mm each) |
| Material | ABS plastic |
| Color | red |
| Length | 3.74 in (approx. 95 mm) |
| Weight | 0.041 kg (0.09 lb) |
Part numbers
| Manufacturer part number (MPN) | Big Papa SKU |
|---|---|
| 48-22-3064 | BP-G-MWK-48223064 |
