Description

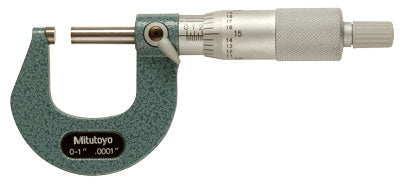

The Mitutoyo 103-260 is a mechanical outside micrometer from Series 103 covering 0-1 in with a 0.0001 in graduation (inch only). The manufacturer lists an accuracy of ±0.0001 in, a ratchet stop, and a measuring force of 5-10 N.
Per the manufacturer, the Series 103 frame has a hammertone baked enamel finish, the scale is laser etched on the thimble and sleeve, and the spindle and anvil have carbide facings that resist wear. A speeder allows quick spindle rotation. Supplied in a fitted plastic case. Mechanical instrument, no battery. Sold as a single instrument.
Features
- Range 0-1 in, graduation 0.0001 in (inch only)
- Accuracy ±0.0001 in (per the manufacturer)
- Ratchet stop, measuring force 5-10 N (per the manufacturer)
- Carbide-faced spindle and anvil (per the manufacturer)
- Laser-etched scale on thimble and sleeve
- Hammertone baked enamel frame finish
- Speeder for quick spindle rotation
- Fitted plastic case supplied
- Mechanical, no battery
Specifications
| Specification | Value |
|---|---|
| Model | 103-260 |
| Type | outside micrometer, mechanical, Series 103 |
| Units | inch only |
| Range | 0-1 in |
| Graduation | 0.0001 in |
| Accuracy | ±0.0001 in |
| Ratchet/thimble | ratchet stop |
| Measuring force | 5-10 N |
| Parallelism | 0.00009 in or less |
| Mass | 175 g |
| Measuring faces | carbide tipped |
| Power | none (mechanical) |
| Quantity | 1 piece |
Part numbers
| Manufacturer part number (MPN) | Big Papa SKU |
|---|---|
| 103-260 | BP-G-MIT-103260 |
