Description

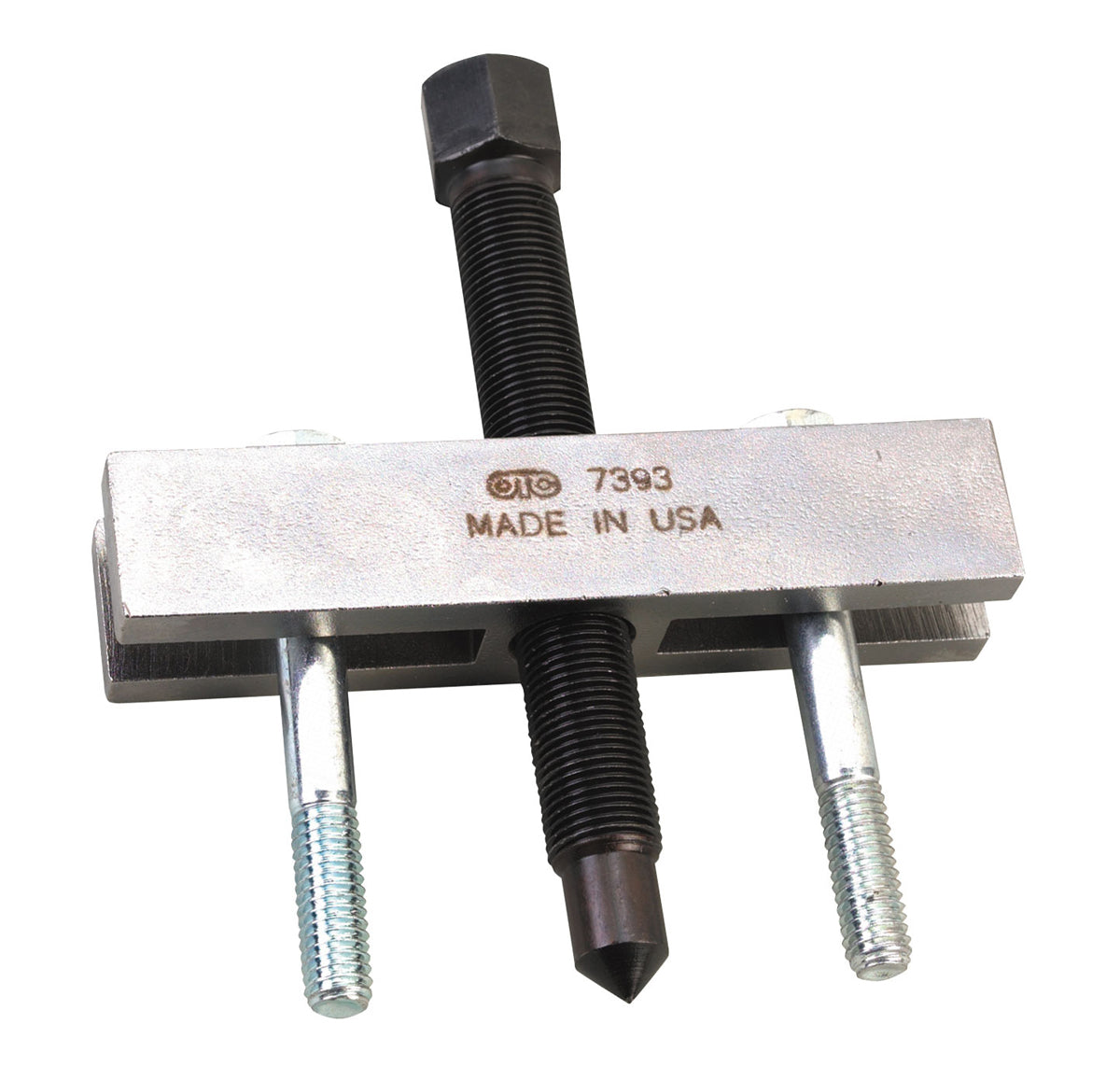

The OTC 7393 is a gear and pulley puller. Per the manufacturer, it is suited to removing timing gears, fan pulleys, harmonic balancers and many other parts that have tapped holes.
The manufacturer states a puller spread of 1-1/2 in to 4-1/4 in, 4-7/8 in wide puller blocks and a 5-1/2 in long screw. Two hex head cap screws, 3/8 in-16 x 3 in long, are included. Sold as a single tool.
Features
- Gear and pulley puller
- For timing gears, fan pulleys, harmonic balancers and other parts with tapped holes, per the manufacturer
- Puller spread: 1-1/2 in to 4-1/4 in
- Puller blocks 4-7/8 in wide
- 5-1/2 in long screw
- Includes two hex head cap screws, 3/8 in-16 x 3 in long
Specifications
| Specification | Value |
|---|---|
| Model | 7393 |
| Quantity | 1 piece |
| Type | gear and pulley puller |
| Puller spread | 1-1/2 in to 4-1/4 in |
| Puller block width | 4-7/8 in |
| Screw length | 5-1/2 in |
| Included | 2 hex head cap screws, 3/8 in-16 x 3 in |
| Product dimensions | 2.7 x 7.6 x 1.2 in |
| Shipping weight | 0.70 kg (1.55 lbs) |
Part numbers
| Manufacturer part number (MPN) | Big Papa SKU |
|---|---|
| 7393 | BP-G-OTC-7393 |
