Description

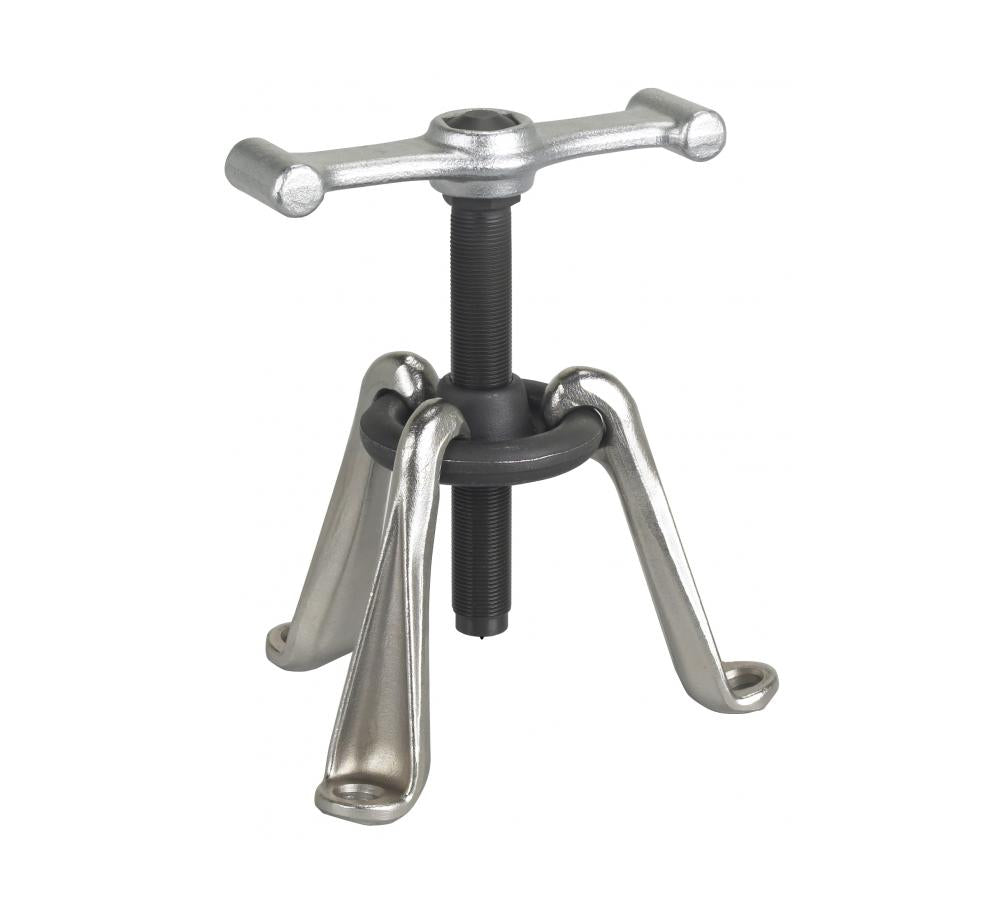

The OTC 7394 is a universal hub puller with wrench, intended by the manufacturer for frozen hubs, axle shafts and other tough pulling applications. Adjustable sliding puller legs can be positioned anywhere on the center hub for a universal fit on hubs with 5 in to 8 in and larger bolt circles.
Per the manufacturer, the forged puller assembly is coupled with a 1 in drive screw capable of 20 tons of force, and the puller wrench supplied is designed to be struck with a hammer. Additional puller legs may be added to the center hub for special applications, and the manufacturer lists an optional puller plate (6574-1) separately. The manufacturer advises always following proper safety precautions when using pullers. Sold as a single puller.
Features
- Adjustable sliding puller legs for hubs with 5 in to 8 in and larger bolt circles, per the manufacturer
- Forged puller assembly
- 1 in drive screw, capable of 20 tons of force per the manufacturer
- Supplied puller wrench designed to be struck with a hammer, per the manufacturer
- Additional puller legs can be added to the center hub for special applications
- Optional puller plate 6574-1 sold separately
Specifications
| Specification | Value |
|---|---|
| Model | 7394 |
| Quantity | 1 piece |
| Type | universal hub puller with wrench |
| Bolt circle range | 5 in to 8 in and larger |
| Drive screw | 1 in, 20 tons of force (per the manufacturer) |
| Puller wrench | included |
| Product dimensions | 7.8 x 11.9 x 2 in |
| Shipping weight | 4.150 kg (9.15 lb, converted) |
Part numbers
| Manufacturer part number (MPN) | Big Papa SKU |
|---|---|
| 7394 | BP-G-OTC-7394 |
