Description

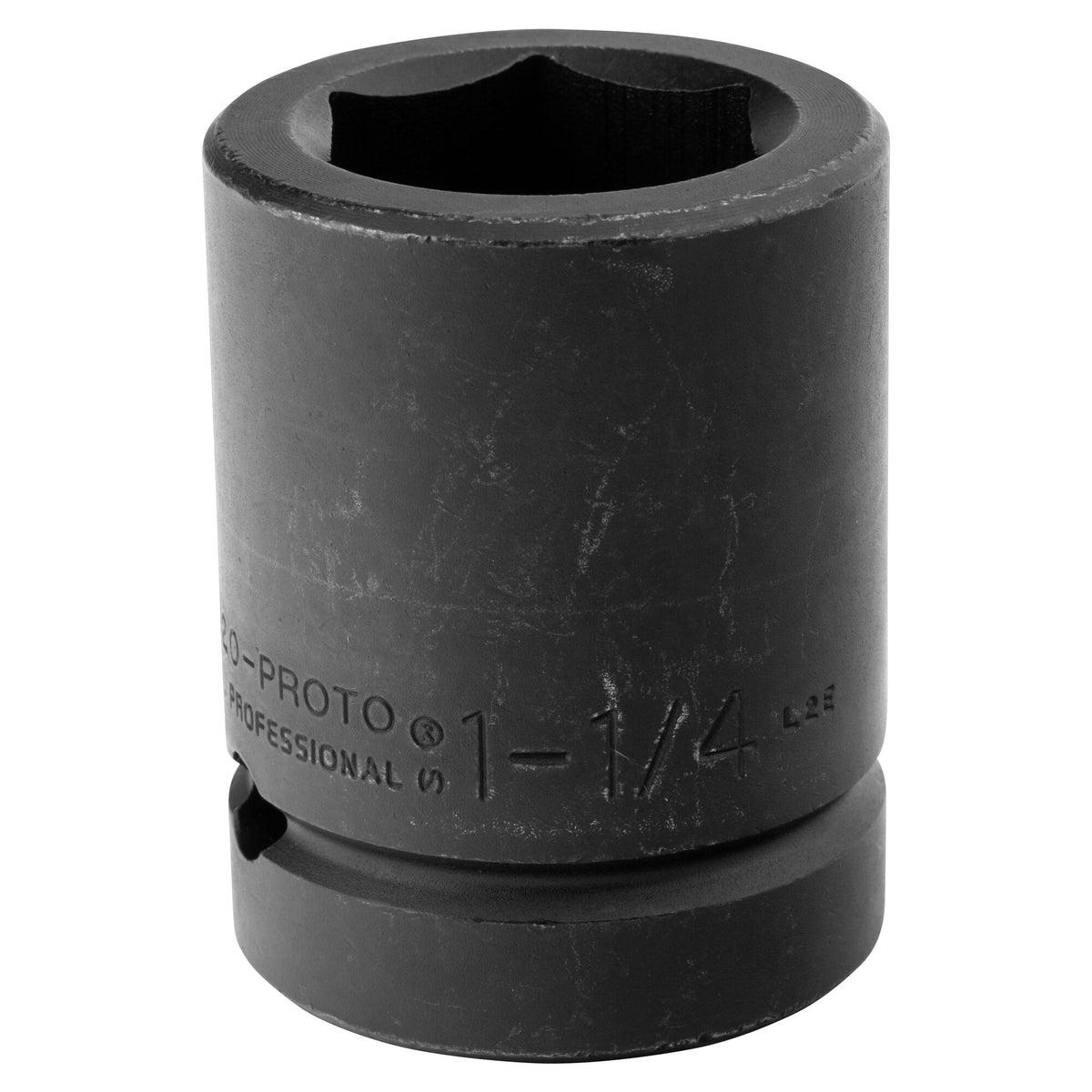

The Proto J10020 is a 1 in drive impact socket with a 1-1/4 in, 6-point opening in a black oxide finish. The manufacturer describes its 6-point impact sockets as suited to stubborn or damaged fasteners and to fasteners made from soft materials.
Per the manufacturer, the TorquePlus design engages the fastener flats rather than the corners, using a radius-corner design that distributes contact stresses over a large area of the socket. Overall length is 2-5/8 in. Sold as a single socket.
Features
- 1 in drive impact socket
- 1-1/4 in, 6-point opening
- Suited to stubborn or damaged fasteners and soft-material fasteners, per the manufacturer
- TorquePlus design engages the fastener flats, not the corners, per the manufacturer
- Radius-corner design distributes contact stresses, per the manufacturer
- Black oxide finish
- Overall length 2-5/8 in
Specifications
| Specification | Value |
|---|---|
| Model | J10020 |
| Quantity | 1 piece |
| Type | impact socket, 6-point |
| Drive size | 1 in |
| Socket size | 1-1/4 in |
| Overall length | 2-5/8 in |
| Bolt clearance depth | 1-1/2 in |
| Nut depth | 15/16 in |
| Drive end outside diameter | 2-1/8 in |
| Nut end outside diameter | 2-1/8 in |
| Finish | black oxide |
| Weight | 0.680 kg (1.5 lb, converted) |
Part numbers
| Manufacturer part number (MPN) | Big Papa SKU |
|---|---|
| J10020 | BP-G-PRO-10020 |
