Description

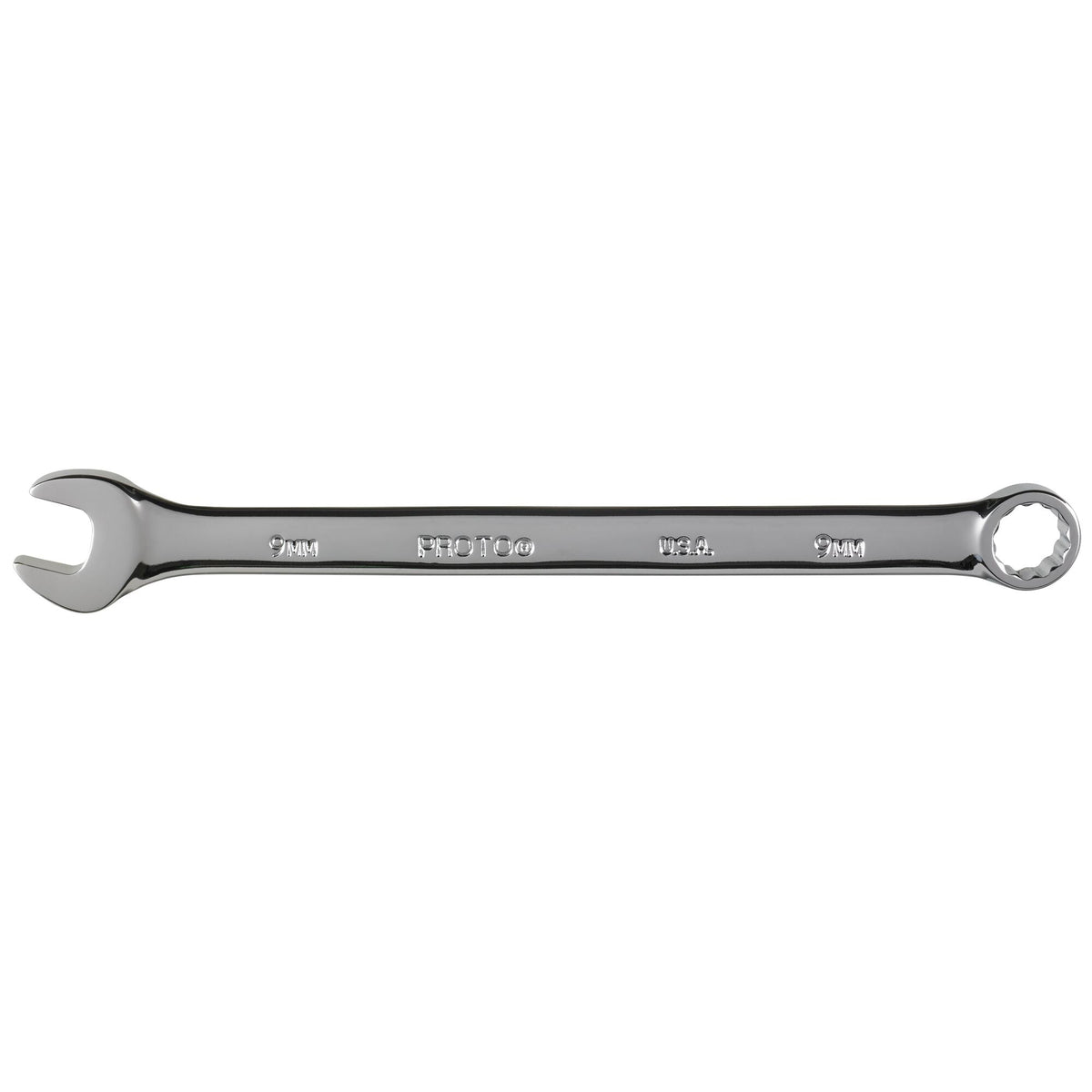

The Proto J1209M-T500 is a 9 mm metric combination wrench with a 12-point box end at one end and an open end at the other. According to the manufacturer, the 12-point box end allows fine indexing and fits 4, 6 and 12 point fasteners, and the box ends incorporate the TorquePlus system.
Per the manufacturer, the full polish finish provides corrosion resistance and surfaces that are easy to clean. The manufacturer also notes that metric sizes 9 mm and smaller do not have the Anti-Slip Design open end. Sold as a single wrench.
Features
- 9 mm metric combination wrench
- 12-point box end allows fine indexing, per the manufacturer
- Fits 4, 6 and 12 point fasteners
- Box ends incorporate the TorquePlus system
- Full polish finish for corrosion resistance and easy-to-clean surfaces, per the manufacturer
- Open end without the Anti-Slip Design feature (not offered on metric sizes 9 mm and smaller, per the manufacturer)
Specifications
| Specification | Value |
|---|---|
| Model | J1209M-T500 |
| Quantity | 1 piece |
| Type | metric combination wrench, 12-point box end |
| Size | 9 mm |
| Finish | full polish |
| Overall length | 5-21/32 in |
| Head thickness | 9/32 in and 17/64 in |
| Outside head width | 3/4 in and 35/64 in |
| Throat depth | 13/32 in |
| Unit of measure | metric |
| Weight | 0.036 kg (0.08 lbs) |
Part numbers
| Manufacturer part number (MPN) | Big Papa SKU |
|---|---|
| J1209M-T500 | BP-G-PRO-1209MT500 |
