Description

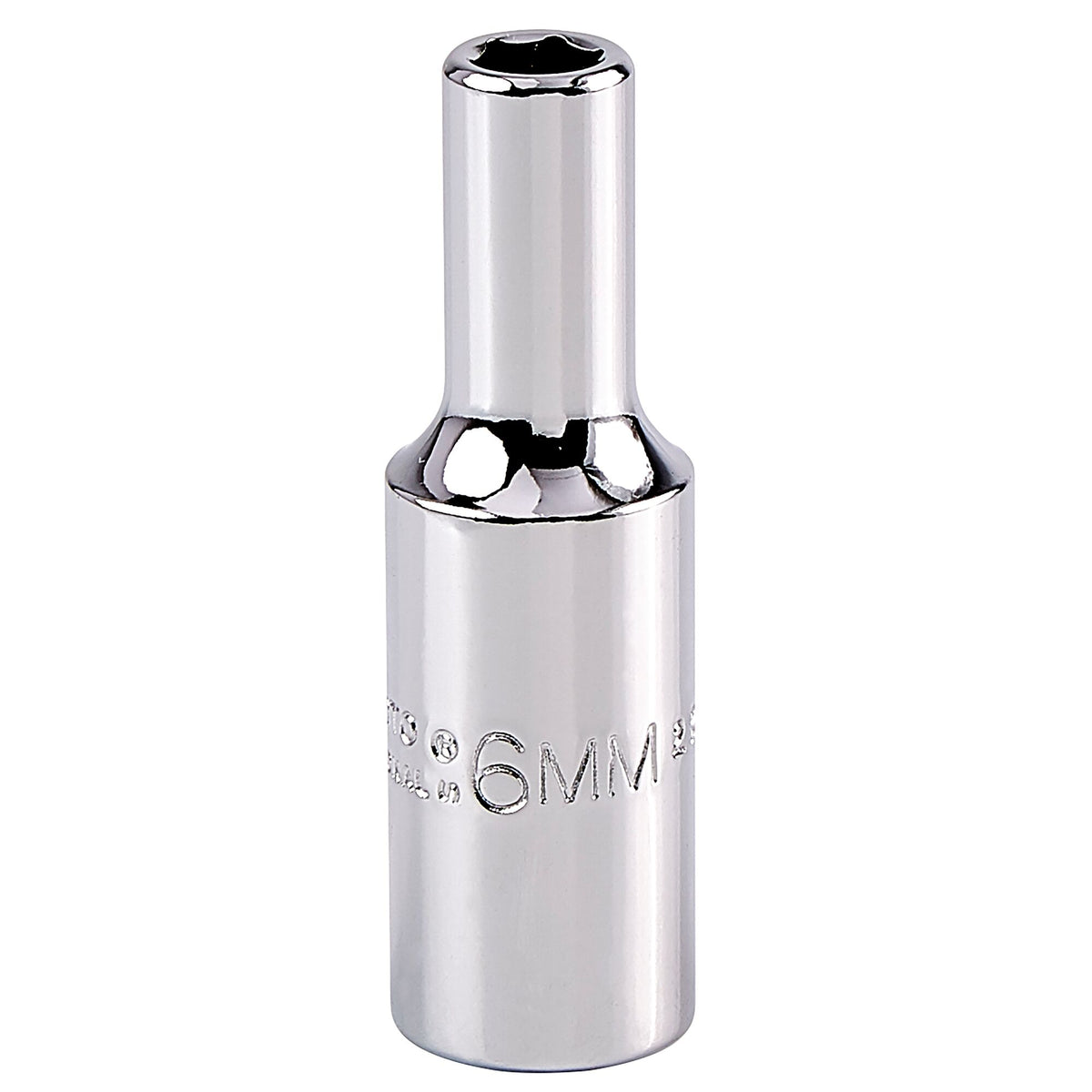

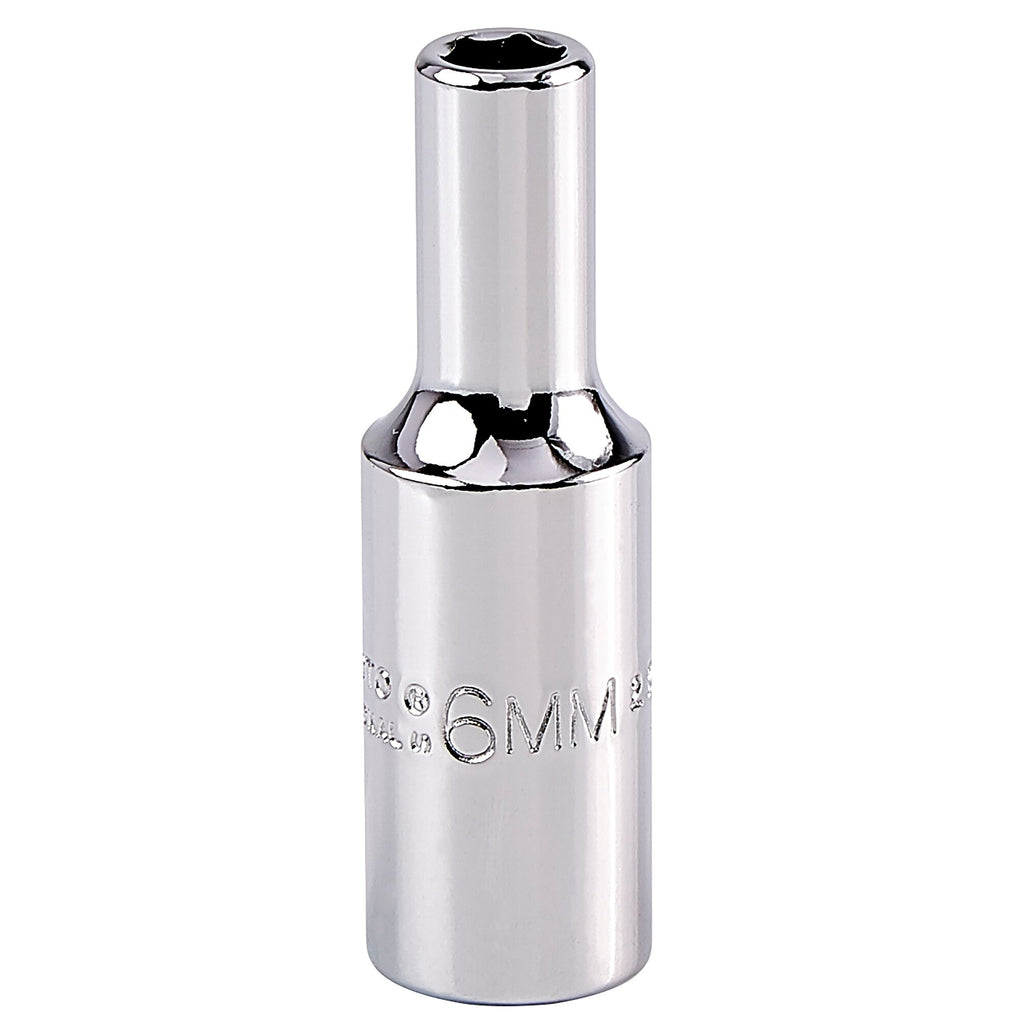

The Proto J5006MH is a 3/8 in drive, 6 mm, 6-point deep socket. The manufacturer states that 6-point sockets suit stubborn or damaged fasteners and fasteners made from soft materials, and that the TorquePlus design engages the fastener flats rather than the corners.
Per the manufacturer, the radius-corner configuration shifts contact stress away from the fastener corners and spreads it over a larger area of the socket, which helps limit slippage. Nut depth 5/16 in, bolt clearance depth 1-11/16 in, overall length 2-1/8 in. Sold as a single socket.
Features
- 3/8 in drive
- 6 mm, 6-point, deep
- TorquePlus design engages the fastener flats rather than the corners, per the manufacturer
- Radius-corner design spreads contact stress and helps limit slippage, per the manufacturer
- Suited to stubborn, damaged or soft-material fasteners, per the manufacturer
- Sold as a single socket
Specifications
| Specification | Value |
|---|---|
| Model | J5006MH |
| Quantity | 1 piece |
| Type | 6-point deep socket |
| Drive size | 3/8 in |
| Size | 6 mm |
| Design | TorquePlus 6-point |
| Bolt clearance depth | 1-11/16 in |
| Nut depth | 5/16 in |
| Drive end outside diameter | 21/32 in |
| Nut end outside diameter | 25/64 in |
| Overall length | 2-1/8 in |
| Weight | 0.045 kg (0.1 lbs) |
Part numbers
| Manufacturer part number (MPN) | Big Papa SKU |
|---|---|
| J5006MH | BP-G-PRO-5006MH |
