Description

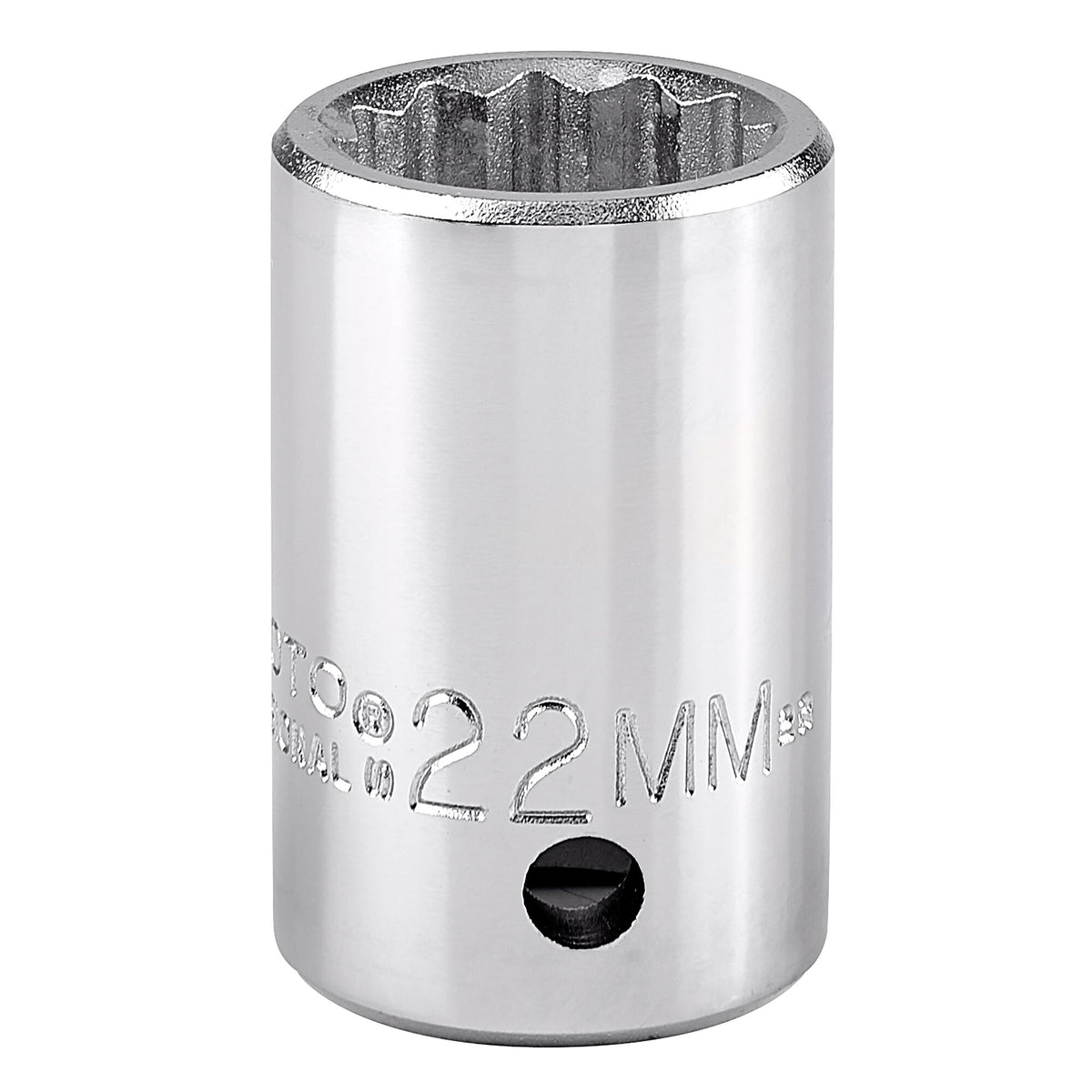

The Proto J5522M is a 22 mm 12-point standard-length socket with a 3/4 in. drive and a satin finish. Per the manufacturer, 12-point sockets suit stubborn or damaged fasteners and fasteners made of soft materials.
The manufacturer states that the TorquePlus design engages the fastener flats rather than the corners, using a radius-corner profile that distributes contact stress over a larger area of the socket to minimize slippage, and that its internal design minimizes fastener rounding and helps turn worn, rounded or rusted fasteners. The socket has a ball detent design. Sold as a single socket.
Features
- 22 mm, 12-point socket
- 3/4 in. square drive
- Standard length
- Satin finish
- TorquePlus design engages the fastener flats rather than the corners, per the manufacturer
- Radius-corner profile spreads contact stress to minimize slippage, per the manufacturer
- Internal design minimizes fastener rounding and helps turn worn, rounded or rusted fasteners, per the manufacturer
- Ball detent design
- Suited to stubborn, damaged or soft-material fasteners, per the manufacturer
Specifications
| Specification | Value |
|---|---|
| Model | J5522M |
| Quantity | 1 piece |
| Type | socket, standard length |
| Drive size | 3/4 in. square |
| Socket size | 22 mm (metric) |
| Points | 12 |
| Finish | satin |
| Overall length | 2 in. |
| Nut depth | 9/16 in. |
| Bolt clearance depth | 1-5/16 in. |
| Drive end outside diameter | 1-19/64 in. |
| Nut end outside diameter | 1-5/16 in. |
| Weight | 0.186 kg (0.41 lbs) |
Part numbers
| Manufacturer part number (MPN) | Big Papa SKU |
|---|---|
| J5522M | BP-G-PRO-5522M |
