Description

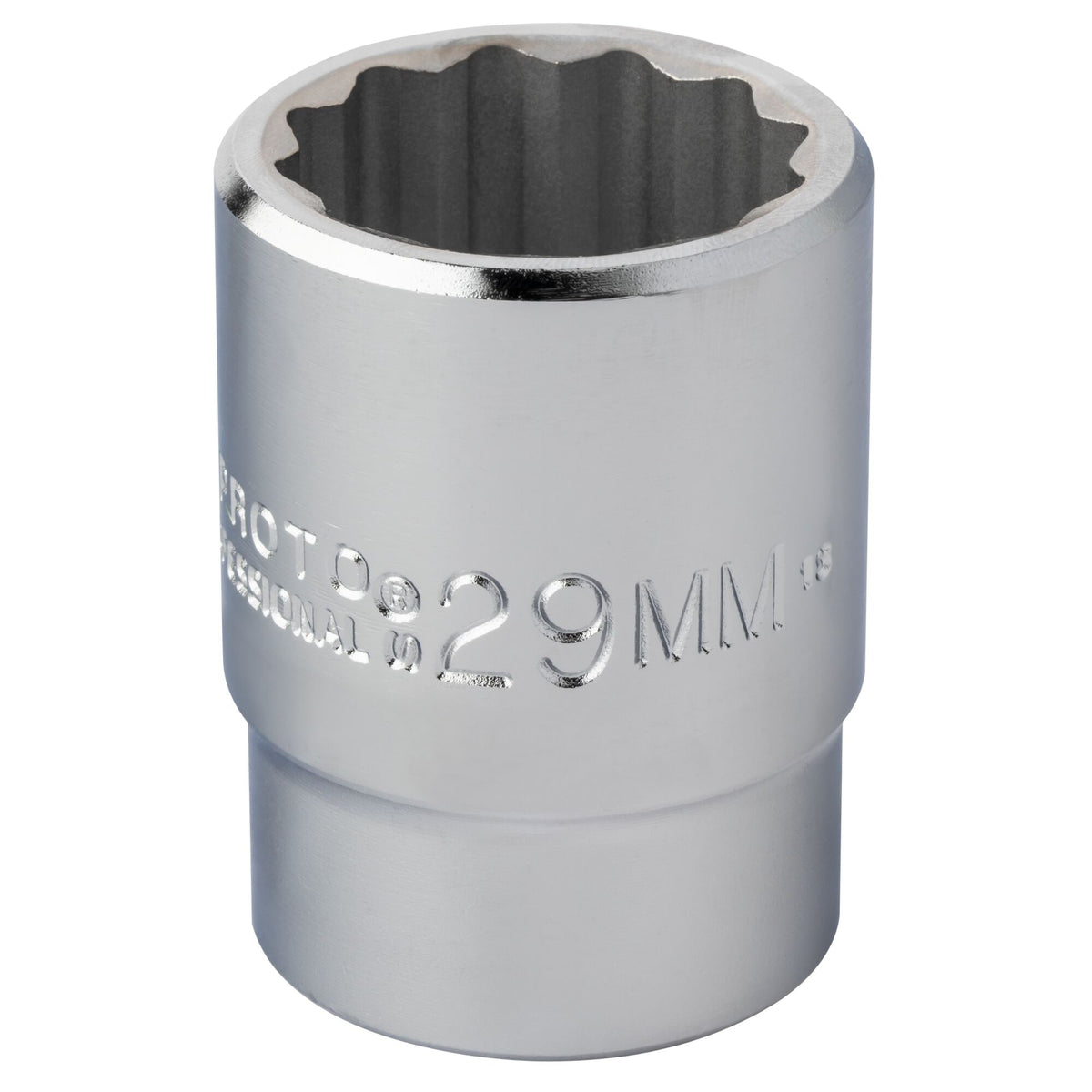

The Proto J5529M is a 3/4 in drive, 29 mm, 12-point socket in standard length. The manufacturer states that 12-point sockets suit stubborn or damaged fasteners and fasteners made of soft materials, and that the TorquePlus design engages the fastener flats rather than the corners.
Per the manufacturer, the radius-corner TorquePlus design shifts contact and stress away from the fastener corners and spreads it over a large area of the socket to minimize slippage, and it also helps limit fastener rounding on worn, rounded or rusted fasteners. Ball detent design, satin finish. Sold as a single socket.
Features
- 3/4 in square drive, 29 mm, 12-point
- TorquePlus design engages the fastener flats, not the corners, per the manufacturer
- Radius-corner design shifts contact stress away from fastener corners to minimize slippage, per the manufacturer
- Intended for stubborn or damaged fasteners and fasteners of soft materials, per the manufacturer
- Helps with worn, rounded or rusted fasteners, per the manufacturer
- Ball detent design
- Satin finish, standard length
Specifications
| Specification | Value |
|---|---|
| Model | J5529M |
| Quantity | 1 piece |
| Type | 12-point socket |
| Drive size | 3/4 in |
| Socket size | 29 mm |
| Unit of measure | metric |
| Length type | standard |
| Overall length | 2-7/32 in |
| Nut depth | 49/64 in |
| Bolt clearance depth | 1-5/16 in |
| Drive end outside diameter | 1-31/64 in |
| Nut end outside diameter | 1-19/32 in |
| Finish | satin |
| Weight | 0.30 kg (0.65 lb) |
Part numbers
| Manufacturer part number (MPN) | Big Papa SKU |
|---|---|
| J5529M | BP-G-PRO-5529M |
