Description

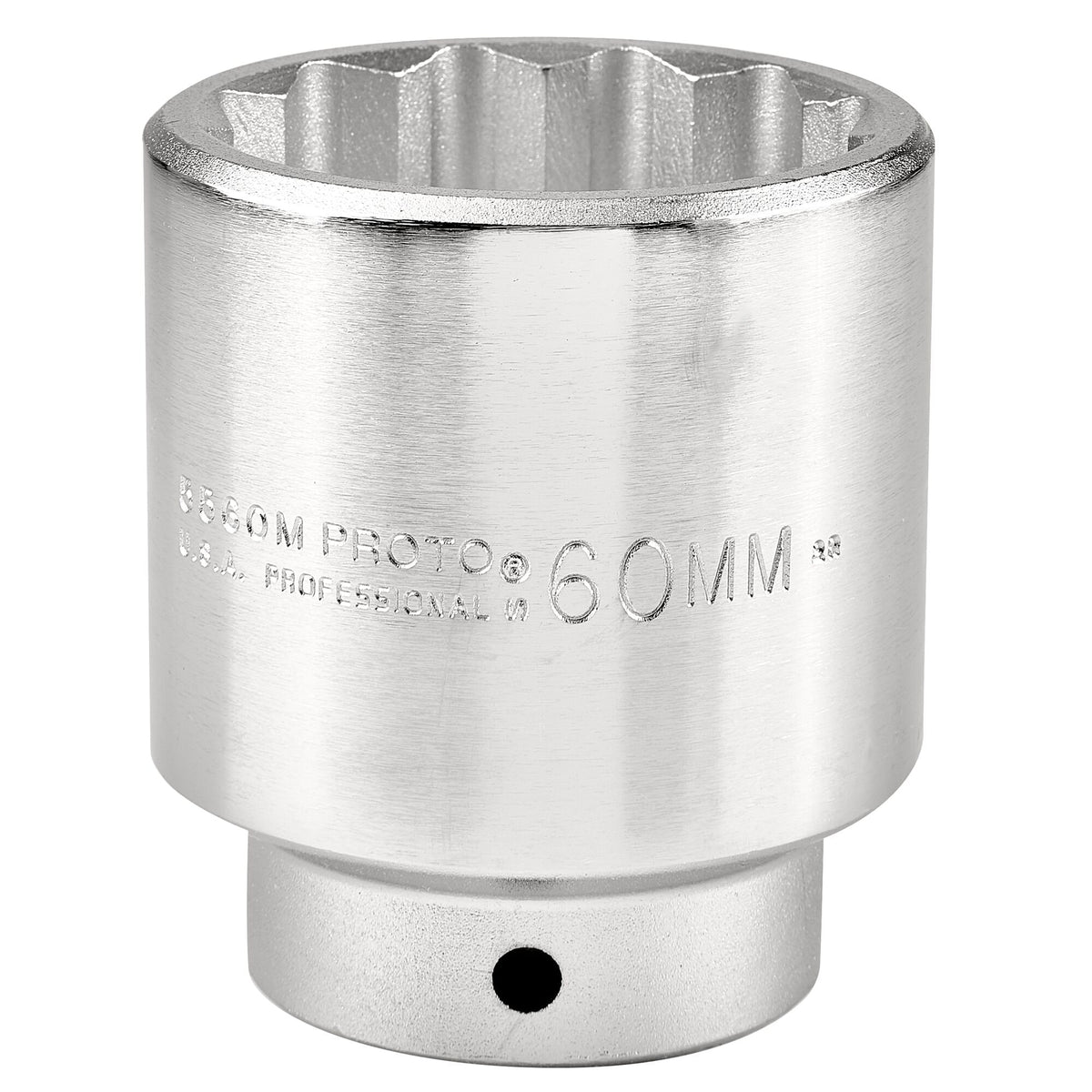

The Proto J5560M is a 3/4 in drive, 60 mm metric socket with a 12-point opening, standard length, in a satin finish. The manufacturer positions its 12-point sockets for stubborn or damaged fasteners and for fasteners made of soft materials.
Per the manufacturer, the TorquePlus design lets the socket engage the fastener flats rather than the corners, with radius corners that spread contact stress, which helps reduce fastener rounding. It uses a ball detent design. Overall length is 3-21/32 in. Sold as a single socket.
Features
- 3/4 in drive metric socket, 60 mm
- 12-point opening, standard length
- Suited to stubborn or damaged fasteners and soft-material fasteners, per the manufacturer
- TorquePlus design engages the fastener flats, not the corners, per the manufacturer
- Radius-corner design spreads contact stress
- Ball detent design
- Satin finish
- Overall length 3-21/32 in
Specifications
| Specification | Value |
|---|---|
| Model | J5560M |
| Quantity | 1 piece |
| Type | socket, 12-point, standard length |
| Drive size | 3/4 in |
| Socket size | 60 mm |
| Unit of measure | metric |
| Overall length | 3-21/32 in |
| Bolt clearance depth | 1-5/16 in |
| Nut depth | 2-1/8 in |
| Drive end outside diameter | 2-17/32 in |
| Nut end outside diameter | 3-17/64 in |
| Finish | satin |
| Weight | 1.03 kg (2.27 lbs) |
Part numbers
| Manufacturer part number (MPN) | Big Papa SKU |
|---|---|
| J5560M | BP-G-PRO-5560M |
