Description

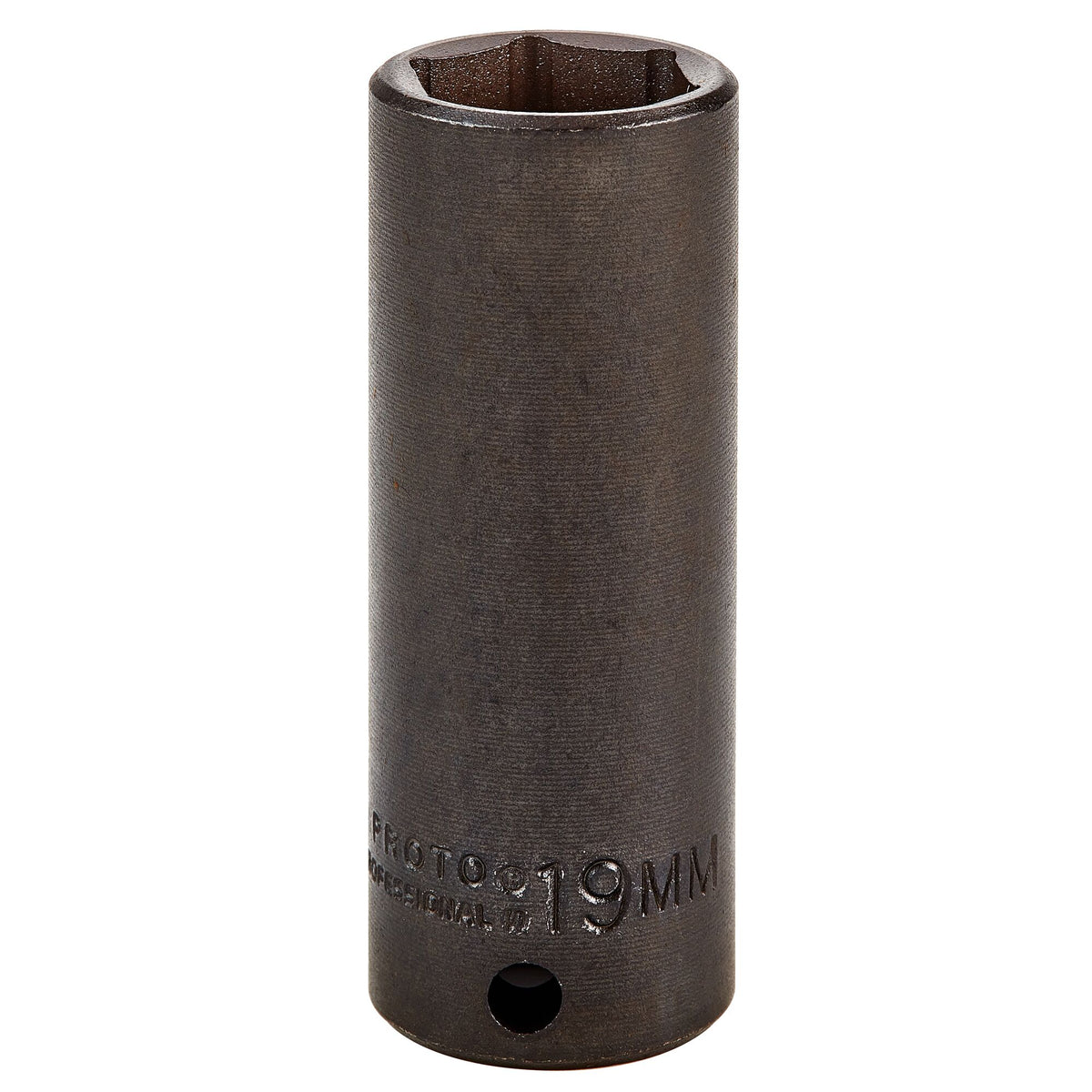

The Proto J7019M is a 19 mm 6-point deep impact socket with a 3/8 in drive. The manufacturer states that 6-point sockets suit stubborn or damaged fasteners and fasteners made from soft materials, and that the TorquePlus design engages the fastener flats rather than the corners, using a radius-corner design that spreads contact stress over a larger area and helps limit slippage.
Per the manufacturer, the TorquePlus internal design minimizes fastener rounding and makes it easier to turn worn, rounded or rusted fasteners. The size is stamped on the tool for easy identification, and the socket has a side locking hole. Finish: black oxide. Overall length is 2-3/4 in. Sold as a single socket.
Features
- 3/8 in drive
- 19 mm size, 6-point
- TorquePlus design engages the fastener flats, not the corners, per the manufacturer
- Radius-corner design spreads contact stress and helps limit slippage, per the manufacturer
- Suited to stubborn, damaged or soft-material fasteners, per the manufacturer
- Deep (long) design
- Impact socket, black oxide finish
- Size stamped on the tool
- Side locking hole
- Sold as a single socket
Specifications
| Specification | Value |
|---|---|
| Model | J7019M |
| Quantity | 1 piece |
| Type | 6-point deep impact socket |
| Drive size | 3/8 in |
| Socket size | 19 mm |
| Point count | 6-point |
| Unit of measure | metric |
| Finish | black oxide |
| Overall length | 2-3/4 in |
| Bolt clearance depth | 2-1/4 in |
| Nut depth | 11/16 in |
| Drive end outside diameter | 1-1/16 in |
| Nut end outside diameter | 1-1/16 in |
| Weight | 0.38 lb (0.172 kg) |
Part numbers
| Manufacturer part number (MPN) | Big Papa SKU |
|---|---|
| J7019M | BP-G-PRO-7019M |
