Description

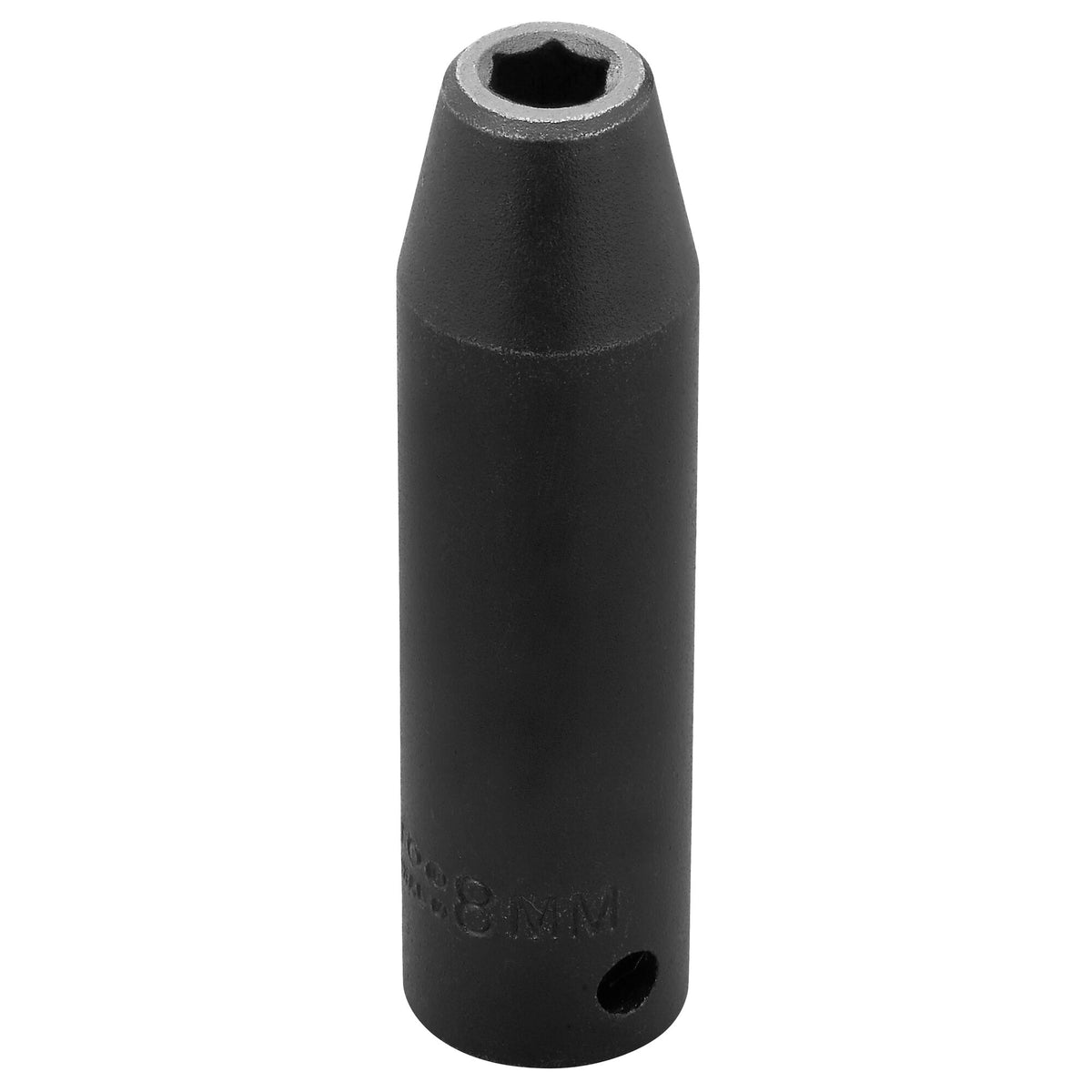

The Proto J7308M is a 1/2 in drive, 8 mm, 6-point deep impact socket. The manufacturer states that 6-point impact sockets suit stubborn or damaged fasteners and fasteners made from soft materials, and that the TorquePlus design engages the fastener flats rather than the corners.
Per the manufacturer, the radius-corner configuration shifts contact stress away from the fastener corners and spreads it over a larger area of the socket, which helps limit slippage. The size is stamped on the tool and the page lists a side locking hole. Nut depth 5/16 in, bolt clearance depth 2-19/32 in, overall length 3-1/4 in. Sold as a single socket.
Features
- 1/2 in drive
- 8 mm, 6-point, deep, impact
- TorquePlus design engages the fastener flats rather than the corners, per the manufacturer
- Radius-corner design spreads contact stress and helps limit slippage, per the manufacturer
- Size stamped on the tool for easy identification, per the manufacturer
- Side locking hole, per the manufacturer
- Suited to stubborn, damaged or soft-material fasteners, per the manufacturer
- Sold as a single socket
Specifications
| Specification | Value |
|---|---|
| Model | J7308M |
| Quantity | 1 piece |
| Type | 6-point deep impact socket |
| Drive size | 1/2 in |
| Size | 8 mm |
| Design | TorquePlus 6-point |
| Locking | side locking hole |
| Bolt clearance depth | 2-19/32 in |
| Nut depth | 5/16 in |
| Drive end outside diameter | 7/8 in |
| Nut end outside diameter | 37/64 in |
| Overall length | 3-1/4 in |
| Weight | 0.168 kg (0.37 lbs) |
Part numbers
| Manufacturer part number (MPN) | Big Papa SKU |
|---|---|
| J7308M | BP-G-PRO-7308M |
