Description

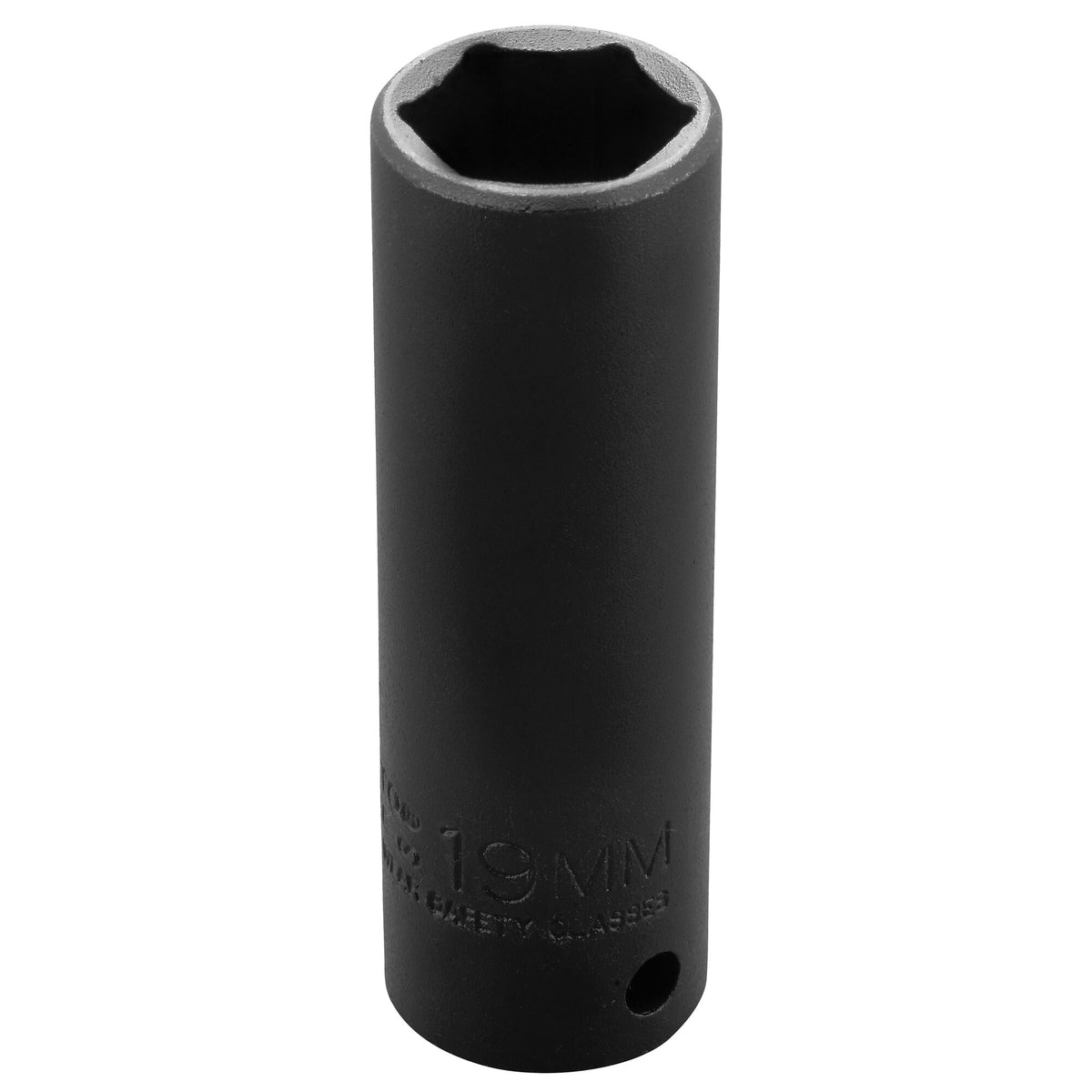

The Proto J7319MHT is a 1/2 in drive, 19 mm, 6-point thin deep wall impact socket with a black oxide finish. The manufacturer states it is designed for light clearance applications, and that the reduced wall thickness helps access fasteners in restricted areas.
Per the manufacturer, the extra deep length helps in confined areas, the socket is often used where fasteners are close together, such as tire service, and it has one through hole and a groove to accept a retaining ring and pin to secure it to the power tool anvil. Sold as a single socket.
Features
- 1/2 in drive
- 19 mm socket size
- 6-point impact socket
- Thin deep wall design for light clearance applications, per the manufacturer
- Extra deep length for access in confined areas, per the manufacturer
- Chamfered service ends for quick, positive fastener engagement, per the manufacturer
- TorquePlus design engages the fastener flats, not the corners, per the manufacturer
- One through hole and a groove for a retaining ring and pin
- Black oxide finish
Specifications
| Specification | Value |
|---|---|
| Model | J7319MHT |
| Quantity | 1 piece |
| Type | 6-point thin deep wall impact socket |
| Drive size | 1/2 in |
| Socket size | 19 mm |
| Unit of measure | metric |
| Finish | black oxide |
| Overall length | 3-1/4 in |
| Nut depth | 1-5/32 in |
| Bolt clearance depth | 1-7/16 in |
| Drive end outside diameter | 1-1/32 in |
| Nut end outside diameter | 1-1/32 in |
| Weight | 0.168 kg (0.37 lbs) |
Part numbers
| Manufacturer part number (MPN) | Big Papa SKU |
|---|---|
| J7319MHT | BP-G-PRO-7319MHT |
