Description

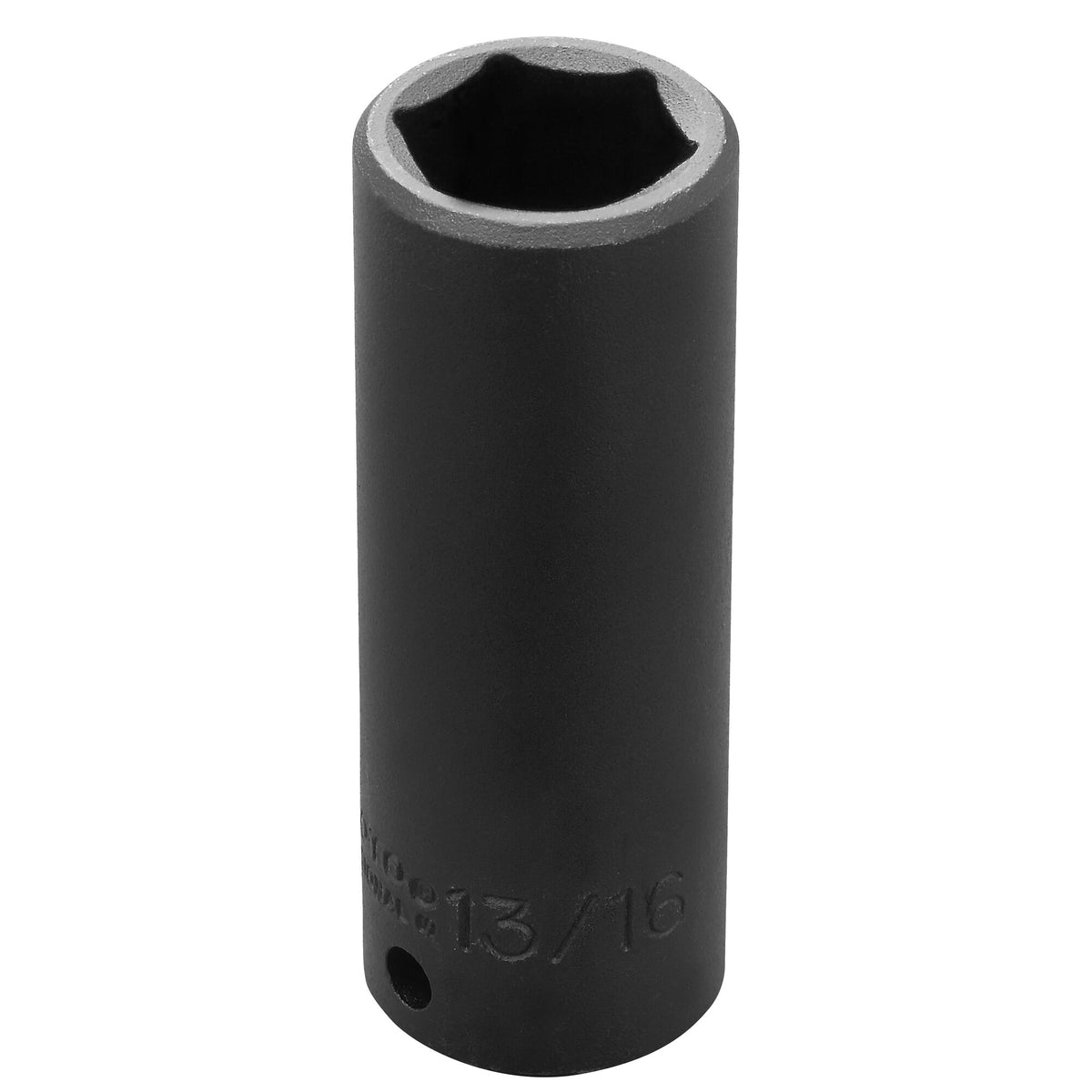

The Proto J7326H is a 1/2 in drive deep impact socket with a 13/16 in, 6-point opening in a black oxide finish. The manufacturer positions its 6-point impact sockets for stubborn or damaged fasteners and for fasteners made of soft materials.
Per the manufacturer, the TorquePlus design lets the socket engage the fastener flats rather than the corners, with radius corners that spread contact stress. The socket size is stamped on the tool for identification, and a side locking hole is provided. Overall length is 3-1/4 in. Sold as a single socket.
Features
- 1/2 in drive deep impact socket
- 13/16 in, 6-point opening
- Ideal for stubborn or damaged fasteners and soft-material fasteners, per the manufacturer
- TorquePlus design engages the fastener flats, not the corners, per the manufacturer
- Socket size stamped on the tool for easy identification
- Side locking hole
- Black oxide finish
- Overall length 3-1/4 in
Specifications
| Specification | Value |
|---|---|
| Model | J7326H |
| Quantity | 1 piece |
| Type | deep impact socket, 6-point |
| Drive size | 1/2 in |
| Socket size | 13/16 in |
| Overall length | 3-1/4 in |
| Bolt clearance depth | 2-5/8 in |
| Nut depth | 1-5/32 in |
| Drive end outside diameter | 1-3/16 in |
| Nut end outside diameter | 1-3/16 in |
| Locking | side locking hole |
| Finish | black oxide |
| Weight | 0.281 kg (0.62 lbs) |
Part numbers
| Manufacturer part number (MPN) | Big Papa SKU |
|---|---|
| J7326H | BP-G-PRO-7326H |
