Description

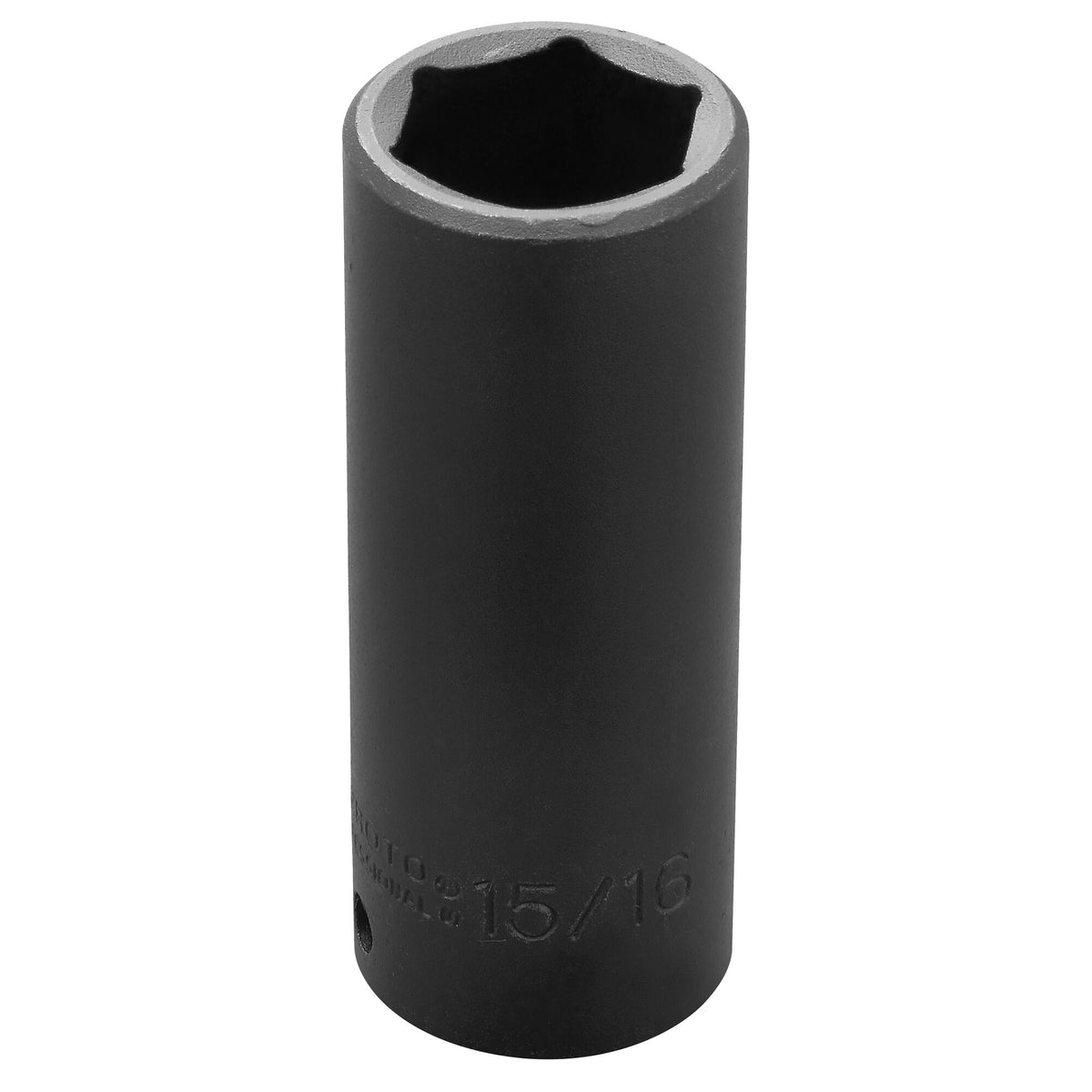

The Proto J7330H is a 1/2 in drive, 15/16 in, 6-point deep impact socket with a black oxide finish. The manufacturer states that its 6-point impact sockets are suited to stubborn or damaged fasteners and to fasteners made of soft materials.
Per the manufacturer, the TorquePlus design engages the fastener flats rather than the corners, using a radius-corner design that shifts contact area and stress away from the fastener corners. The socket size is stamped on the tool and it has a side locking hole. Overall length 3-1/2 in. Sold as a single tool.
Features
- 1/2 in drive, 15/16 in size
- 6-point deep impact socket
- Suited to stubborn or damaged fasteners and soft-material fasteners, per the manufacturer
- TorquePlus design engages the fastener flats rather than the corners, per the manufacturer
- Black oxide finish
- Socket size stamped on the tool
- Side locking hole
- Overall length 3-1/2 in
Specifications
| Specification | Value |
|---|---|
| Model | J7330H |
| Quantity | 1 piece |
| Type | deep impact socket, 6-point |
| Drive size | 1/2 in |
| Socket size | 15/16 in |
| Finish | black oxide |
| Overall length | 3-1/2 in |
| Nut depth | 1-13/32 in |
| Bolt clearance depth | 2-7/8 in |
| Drive end outside diameter | 1-3/8 in |
| Nut end outside diameter | 1-3/8 in |
| Weight | 0.39 kg (0.86 lbs, converted) |
Part numbers
| Manufacturer part number (MPN) | Big Papa SKU |
|---|---|
| J7330H | BP-G-PRO-7330H |
