Description

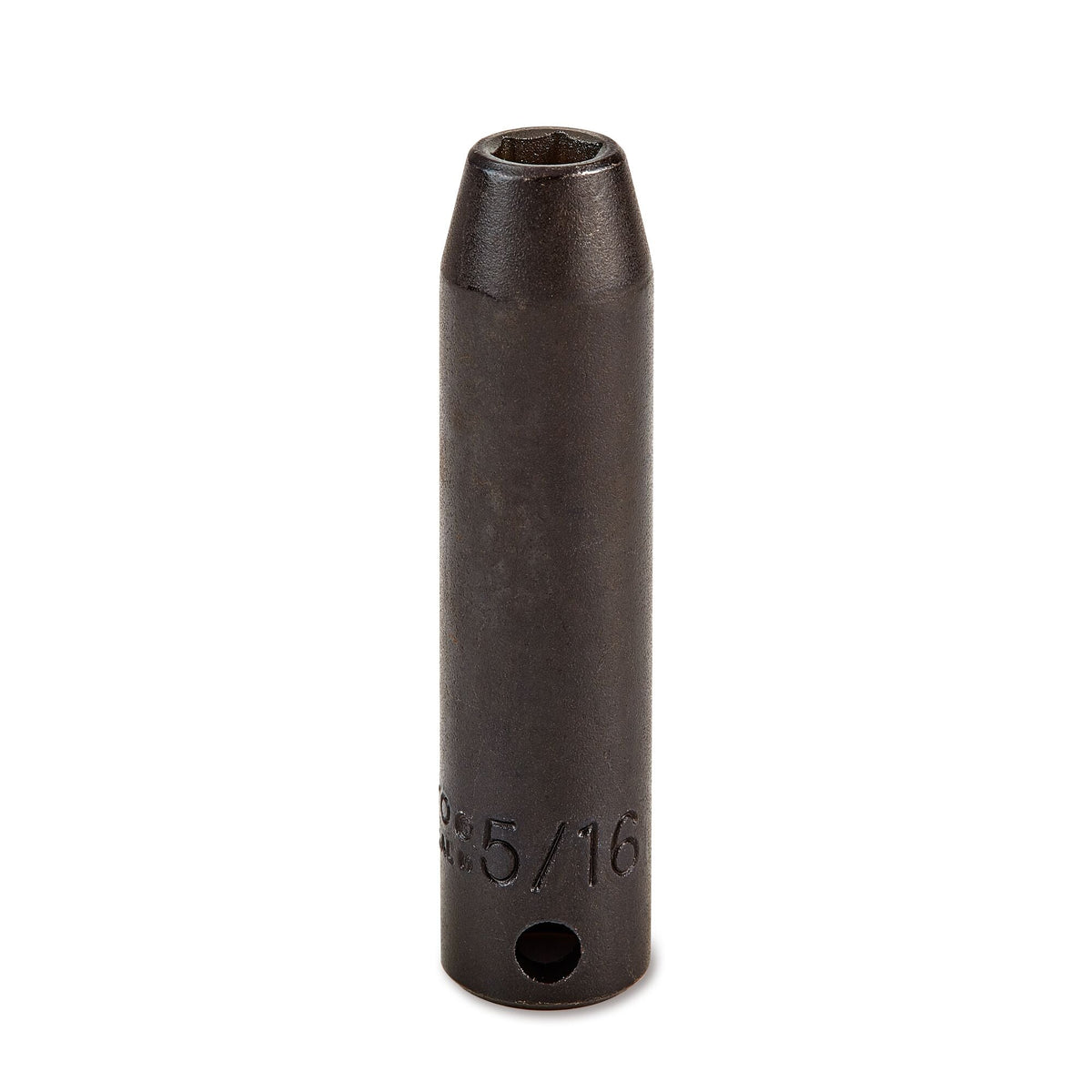

The Proto J7710H is a 3/8 in drive deep impact socket with a 5/16 in, 6-point opening in a black oxide finish. The manufacturer positions its 6-point impact sockets for stubborn or damaged fasteners and for fasteners made of soft materials.
Per the manufacturer, the TorquePlus design lets the socket engage the fastener flats rather than the corners, with radius corners that spread contact stress, which helps reduce fastener rounding. The socket size is stamped on the tool and a side locking hole is provided. Overall length is 2-3/4 in. Sold as a single socket.
Features
- 3/8 in drive deep impact socket
- 5/16 in, 6-point opening
- Suited to stubborn or damaged fasteners and soft-material fasteners, per the manufacturer
- TorquePlus design engages the fastener flats, not the corners, per the manufacturer
- Radius-corner design spreads contact stress
- Socket size stamped on the tool
- Side locking hole
- Black oxide finish
- Overall length 2-3/4 in
Specifications
| Specification | Value |
|---|---|
| Model | J7710H |
| Quantity | 1 piece |
| Type | deep impact socket, 6-point |
| Drive size | 3/8 in |
| Socket size | 5/16 in |
| Overall length | 2-3/4 in |
| Bolt clearance depth | 2-1/4 in |
| Nut depth | 21/64 in |
| Drive end outside diameter | 11/16 in |
| Nut end outside diameter | 33/64 in |
| Finish | black oxide |
| Standards listed by the manufacturer | ASME B107.110-2012, SAE AS4984A |
| Weight | 0.091 kg (0.2 lbs) |
Part numbers
| Manufacturer part number (MPN) | Big Papa SKU |
|---|---|
| J7710H | BP-G-PRO-7710H |
