Description

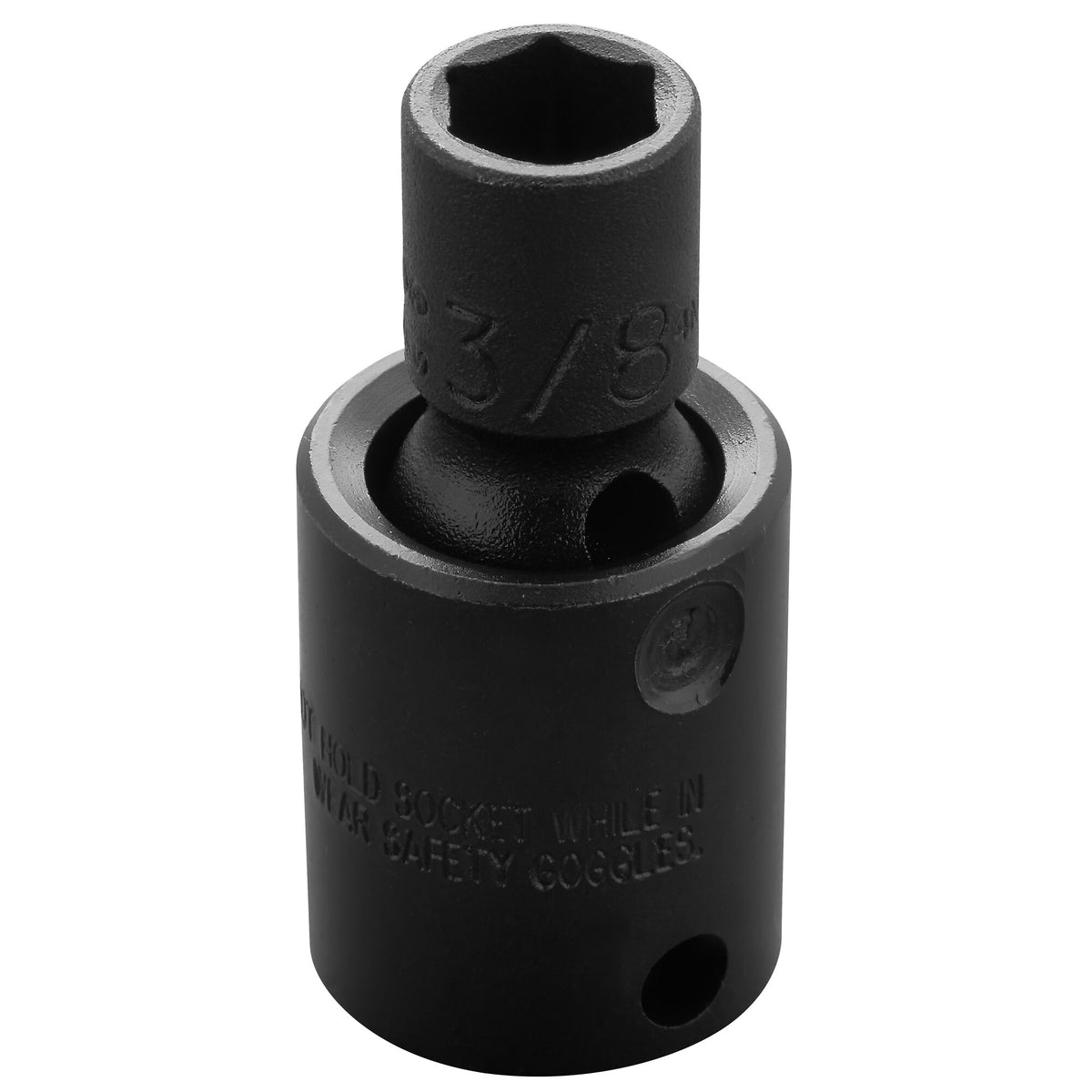

The Proto J77273P is a 3/8 in drive, 3/8 in, 6-point impact universal (swivel) socket. Per the manufacturer, its ball and spring design allows a 30° working angle with smooth 360° rotation, and 6-point impact sockets suit stubborn or damaged fasteners and fasteners made from soft materials.
The manufacturer states that the TorquePlus design engages the fastener flats rather than the corners, using a radius-corner configuration that spreads contact stress over a larger area of the socket. Black oxide finish; nut depth 7/16 in, bolt clearance depth 7/16 in, overall length 1-57/64 in. Sizes are in inches. Sold as a single socket.
Features
- 3/8 in drive, 3/8 in, 6-point impact universal socket
- Ball and spring design with a 30° working angle and smooth 360° rotation, per the manufacturer
- TorquePlus design engages the fastener flats rather than the corners, per the manufacturer
- Radius-corner design spreads contact stress over a larger area of the socket, per the manufacturer
- Suited to stubborn, damaged or soft-material fasteners, per the manufacturer
- Black oxide finish
- Size in inches (in), sold as a single socket
Specifications
| Specification | Value |
|---|---|
| Model | J77273P |
| Quantity | 1 piece |
| Type | 6-point impact universal socket |
| Drive size | 3/8 in |
| Size | 3/8 in (inch size) |
| Design | TorquePlus 6-point |
| Finish | black oxide |
| Bolt clearance depth | 7/16 in |
| Nut depth | 7/16 in |
| Drive end outside diameter | 1-1/16 in |
| Nut end outside diameter | 9/16 in |
| Overall length | 1-57/64 in |
| Weight | 0.14 kg (0.3 lbs) |
Part numbers
| Manufacturer part number (MPN) | Big Papa SKU |
|---|---|
| J77273P | BP-G-PRO-77273P |
