Description

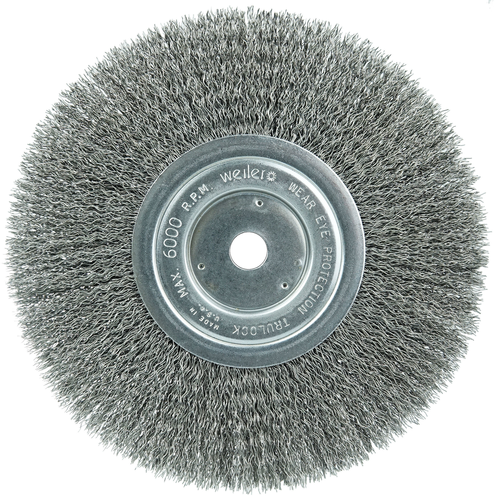

The Weiler 01175 is an 8 in crimped wire wheel brush with a narrow face (3/4 in face width, 2-1/16 in trim length) and 0.014 in steel wire. The manufacturer lists cleaning and deburring as applications for demanding light-duty work.
The manufacturer describes a flexible brushing action and consistent performance, and a solid ring construction, for use on bench or pedestal grinders, straight grinders and CNC/milling/automatic machines. Arbor hole: 5/8 in. Maximum speed 6000 RPM, per the manufacturer. Sold as a single wheel.
Features
- Narrow face, 3/4 in face width
- Trim length: 2-1/16 in
- Crimped steel wire, 0.014 in diameter
- Arbor hole: 5/8 in
- Cleaning and deburring applications, per the manufacturer
- Maximum speed 6000 RPM, per the manufacturer
- Solid ring construction, per the manufacturer
Specifications
| Specification | Value |
|---|---|
| Model | 01175 |
| Quantity | 1 wheel (sold each) |
| Type | crimped wire wheel brush |
| Diameter | 8 in |
| Face width | 3/4 in |
| Trim length | 2-1/16 in |
| Wire material | steel |
| Wire diameter | 0.014 in |
| Arbor hole | 5/8 in |
| Attachment | unthreaded hole |
| Maximum speed (per the manufacturer) | 6000 RPM |
| Applications | cleaning, deburring |
Part numbers
| Manufacturer part number (MPN) | Big Papa SKU |
|---|---|
| 01175 | BP-G-WEI-01175 |
