Description

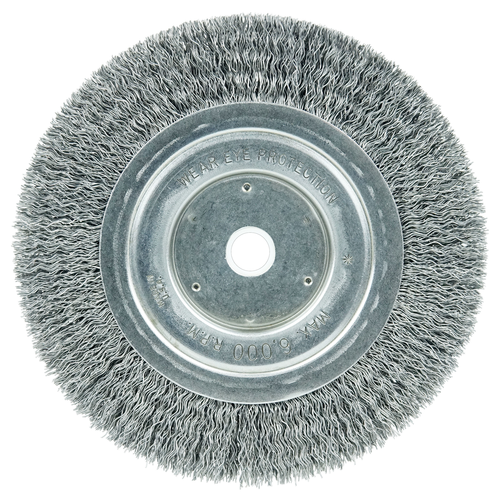

The Weiler 02325 is a 6 in medium face crimped wire wheel brush with 0.014 in steel wire and a 5/8 - 1/2 in arbor hole. The manufacturer describes a flexible brushing action for general purpose cleaning and deburring, with a wider face width that covers more area.
Per the manufacturer, the face width is 5/8 in, the trim length is 1-1/16 in and the maximum speed is 6,000 RPM. Listed for use on bench or pedestal grinders, straight grinders and CNC, milling or automatic machines. Sold individually.
Features
- Crimped wire wheel, 6 in diameter, medium face
- 0.014 in steel wire
- Face width 5/8 in, trim length 1-1/16 in
- Arbor hole 5/8 - 1/2 in
- Flexible brushing action for general purpose cleaning and deburring, per the manufacturer
- Wider face width covers more area, per the manufacturer
- Maximum speed 6,000 RPM, per the manufacturer
- Listed for bench or pedestal grinders, straight grinders and CNC, milling or automatic machines
Specifications
| Specification | Value |
|---|---|
| Model | 02325 |
| Quantity | 1 piece |
| Type | crimped wire wheel brush |
| Diameter | 6 in |
| Face width | 5/8 in |
| Trim length | 1-1/16 in |
| Wire material | steel |
| Wire diameter | 0.014 in |
| Arbor hole | 5/8 - 1/2 in |
| Maximum speed (per the manufacturer) | 6,000 RPM |
| Applications | cleaning, deburring |
Part numbers
| Manufacturer part number (MPN) | Big Papa SKU |
|---|---|
| 02325 | BP-G-WEI-02325 |
